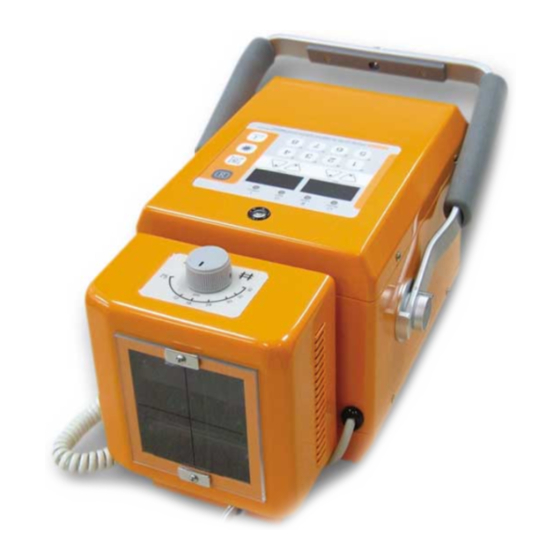

- Page 1 - ULTRA 1040HF, ULTRA 100HF Document No. : EUM-Vet-01 Issued Date : May.26,2016 Revision : 1.1 For better performance and safety, this manual may be changed without any prior notice. The original version of ORANGE 1040HF is being written in English.
-
Page 2: Table Of Contents
Diagnostic X-ray Unit USER MANUAL Table of Contents Section 1. (General Information) Complied standard ………….……………………………………………………………………………... Contact …………….…………….…………………………………………………………………………….… Guarantee conditions ……………………………………………………………………………………... Safety information……………………………………..……………………………………………….…... Radiation information……………………………………………………………………………………... Warning information.…………………………………………………………………………………….… Warning label information ………………………………….………………………………………..Label information …………………………………………………………………………………………… Intended use………………………….……………………………………………………………………..…. Note to user………………………………………………………………………………………………..…… Symbols and terms……………………………………………………………………………………..….. Product name designation………………………………………………………………………………. - Page 3 Diagnostic X-ray Unit USER MANUAL Table of Contents Section 3. (Service Manual) Calibration process …..……………………..…………………………………………………………….. Reproducibility of the radiation output………………………………………………………..….. Lamp exchange procedure……………………………………………………………………………… Fuse exchange procedure…………………………………………………………………………….…. Put in the hand switch…………………………………………………………………………………..Put in the power connector and plug……………………………………………………….…….. Diagnostic x-ray unit stand fixing…………………….……………………………………….…….. Section 4.
-
Page 4: Section 1. (General Information)
Diagnostic X-ray Unit USER MANUAL Section 1. General Information - 4 -... -
Page 5: Complied Standard
(Diagnostic X-ray Unit with radiation protection in accordance with EN 60601-1-3:2008) ☞ EN 60601-2-28 : 2010 (SAFETY) (X-ray Tube Assembly [ORANGE 1040HF HV Tank] EN 60601-2-28:2010) ☞ EN 60601-2-54 : 2009 (SAFETY) (X-ray Equipment for Radiography [ORANGE 1040HF] EN 60601-2-54: 2009) ☞... -
Page 6: Contact
Diagnostic X-ray Unit USER MANUAL Contact Manufacturer ECORAY Co., Ltd. - Address : #714-716, ForHu B/D, 58, Wangsimni-ro, Seongdong-gu, Seoul, Korea. - TEL : +82-70-7510-3400 - FAX : +82-70-8630-3420 - E-mail : sales@ecoray.kr / sales@ecoviewmedical.com - URL : www. ecoray.kr EC authorized representative BCF Technology Ltd. -
Page 7: Guarantee Conditions
Service may be requested by callings +82 70 7510 3400 (or email to sales@ecoray.kr) customer service department for R.A numbers. The product name, serial number, date of purchase and the details of the problem should be provided. -
Page 8: Safety Information
Diagnostic X-ray Unit USER MANUAL Safety Information This equipment is designed and manufactured with due consideration given to the safety of the operator and subject, and also to the reliability of equipment. The following precaution must be observed for additional safety. Caution ... -
Page 9: Radiation Information
Diagnostic X-ray Unit USER MANUAL Radiation Information This equipment is manufactured with the necessary devices and it protects operator and animal from the ionized radiation that is radiated form the X-ray source assembly Caution User and operator must use a protective devices(X-ray protection partition) and a protective clothing(Lead Apron) as appropriate to the workload involved. -
Page 10: Warning Information
Diagnostic X-ray Unit USER MANUAL Warning Information This is the important information for the reader or user. User or reader should pay attention to this important information. If not, serious damage to people or equipment can be occurred. Warning The retaking of x-rays was necessary due to shaking of the diagnostic x-ray units when used without the diagnostic x-ray stand. -
Page 11: Warning Label Information
Diagnostic X-ray Unit USER MANUAL Warning Label Information Warning of ionized Radiation This label placed on the top of top case. The ionized radiation is dangerous for the animal and the operator if the appropriate safety measures are not strictly observed. Warning of dangerous voltage This label placed on the top of HV Tank. -
Page 12: Label Information
Diagnostic X-ray Unit USER MANUAL Label Information Beam Limiting Device This label placed on the side of collimator. This label explained Identification collimator information. This label placed on the bottom case. This label explained product information. Hand Switch Information This label placed on the side of Hand switch. -
Page 13: Intended Use
Diagnostic X-ray Unit USER MANUAL Intended Use This x-ray unit has been developed specially for diagnostic veterinary x-ray applications. It should not be used for other applications. Note to User To ensure safe operation and long term performance stability, it is essential that you fully understand the functions, operating and maintenance instruction reading this manual before operating equipment. -
Page 14: Product Name Designation
Diagnostic X-ray Unit USER MANUAL Product Name Designation Main product name : ORANGE 1040HF Addition product name : ULTRA 1040HF, ULTRA 100HF Electromagnetic Compatibility Statement This generating equipment, used and related to radio frequency energy, if not installed and used in accordance with the instruction, may cause harmful interference to other devices in the vicinity. -
Page 15: Proper Environment
Diagnostic X-ray Unit USER MANUAL Proper Environment Caution : Avoid the following environments for operation or storage ; Where the equipment is exposed to water vapor. Where the equipment is exposed to direct sunlight. Where the equipment is exposed to dust. ... -
Page 16: Accessories Composition
Diagnostic X-ray Unit USER MANUAL Accessories Composition This diagnostic x-ray unit is essentially built up of the following parts: Since diagnostic x-ray unit is integrated one body X-ray equipment therefore following regions are firmly fixed and connected of consist of. Picture Name Specification... -
Page 17: Dimension
Diagnostic X-ray Unit USER MANUAL Dimension (Unit : mm, Without accessories Weight : 12.5 kg) - 17 -... -
Page 18: Name Of Each Part
Diagnostic X-ray Unit USER MANUAL Name of Each Part ⑤ ④ ② ③ ① ⑥ ⑧ ⑦ ⑫ ⑩ ⑪ ⑨ ① ⑦ Handle Laser Beam Outlet ② ⑧ Main Body Angle Meter ③ ⑨ Operation Panel Measuring Tape ④ ⑩... -
Page 19: Identification Label
Diagnostic X-ray Unit USER MANUAL Identification Label ① ② ③ ④ ④ Explanation ① General Information User Manual Before use equipment, Must read a user manual Electric Type B applied part. To identify a type B applied part ② Protection complying with IEC 60601-1. -
Page 20: Operation Panel
Diagnostic X-ray Unit USER MANUAL Operation Panel Name Performance ① System Indicate It shows an exposure is ready to make pressing READY switch. It lamp on during exposure is being made. It lamp on during 5 sec after exposure. It lamp on occurring is system problem. ②... -
Page 21: Specifications
Diagnostic X-ray Unit USER MANUAL Specifications Classification Electrical classification External electrical power source Class I Electrical Type Type B Applied Part IPX specification IPX 0 : Ordinary equipment Mode of operation Continuous operation with intermittent (Time interval between 3 exposure : rest time 5 min) ... -
Page 22: X-Ray Tube Specification
Diagnostic X-ray Unit USER MANUAL X-ray Tube Specification Manufacturer TOSHIBA (D-125S) Type Stationary Focal Spot 1.2 mm Target Angle 16 degree Target Material Tungsten Inherent Filtration At least 0.8 mmAl at 50 kV Insulating Medium In Oil ... - Page 23 Diagnostic X-ray Unit USER MANUAL Rating Chart - 23 -...
- Page 24 Diagnostic X-ray Unit USER MANUAL Section 2. Operation - 24 -...
-
Page 25: Operation Conditions
Diagnostic X-ray Unit USER MANUAL Operation Conditions Power Source Voltage : Single phase, 220-240 V~ (Europe), 110-120 V~ (Americas) Hertz : 50 Hz(Europe), 60 Hz(Americas) Power consumption : Approximately 2.4 kW (Max.) The diagnostic x-ray unit has the technique selection function as follows. Manual : kV/mAs APR (Anatomical Programming Radiography) : 16 or 8 (selectable) ... -
Page 26: Operation Instruction
Diagnostic X-ray Unit USER MANUAL Operation Instruction Collimation Practices 1) Positioning the animal body with the collimator 2) Place the loaded cassette on the animal’s backside. 3) Set SID using with the scale that is located the side of the collimator. 4) Turn on the collimator lamp and laser pointer by pushing the collimator/laser "ON"... - Page 27 Diagnostic X-ray Unit USER MANUAL Normal Operation Check 1) Please wear a lead apron while you make exposures. 2) Connect power plug into the device. 3) When you turn “ON” the Main Switch, the minimum set value of kV and mAs (kV : 40, mAs : 0.32) display on console with beep sound.
- Page 28 Diagnostic X-ray Unit USER MANUAL APR Mode 1) There are minimum of 8 and maximum of 16 APR mode can be set in this unit. Mode APR Key 1+5, 1+6, 1+7, 1+8 / 2+5, 2+6, 2+7, 2+8 16 Mode 3+5, 3+6, 3+7, 3+8 / 4+5, 4+6, 4+7, 4+8 8 Mode 1, 2, 3, 4, 5, 6, 7, 8...
- Page 29 Diagnostic X-ray Unit USER MANUAL Execution of Radiographs 1) Please wear a lead apron while performing an x-ray 2) Turn on the main switch. 3) If you need to warm up this unit, expose 3 times each following the 5) chart in page.27.
-
Page 30: Error Code And Corrective Actions
Diagnostic X-ray Unit USER MANUAL Error code and Corrective Actions Code Meanings of error Corrective action The ready contactor of the hand Reset main switch. If proper operation is Err01 switch is closed even it is not unavailable, change the hand switch. pushed. -
Page 31: Exposure Data Table
Diagnostic X-ray Unit USER MANUAL Exposure Data Table [ CHART FOR SMALL ANIMALS ] Thickness Skull/Pelvis/Extreme Thorax Abdomen (cm) kV/ (mAs) kV/ (mAs) kV/(mAs) No grid : 50 / (0.4) No grid : 54 / (0.4) No grid : 54 / (0.5) No grid : 66 / (0.4) No grid : 60 / (0.6) No grid : 60 / (0.6) -
Page 32: Designated Significant Zone Of Occupancy
Diagnostic X-ray Unit USER MANUAL Designated significant zones of occupancy In case the operator brings x-ray unit out of designated place to animal's location, he must take free-radiation space before x-ray examination as following diagram indicates any significant zone of occupancy designated in accordance with this subclause shall have a floor area of dimensions not less than 60 cm x 60 cm and a height of not less than 200 cm and wear appropriate lead apron to protect himself from leakage radiation. - Page 33 Diagnostic X-ray Unit USER MANUAL Section 3. Service Manual - 33 -...
-
Page 34: Calibration Process
Diagnostic X-ray Unit USER MANUAL Calibration procedures 1. Turn off the main switch. 2. Fix power jumper position. (The Europe : 220-240 V~, The Americas : 110-120 V~) 3. Set the oscilloscope Channel.1 & 2 to 2 V/4.0 mS. 4. Connect the oscilloscope Channel 1 to IP_FB (TP3) on the main board. 5. -
Page 35: Reproducibility Of The Radiation Output
Diagnostic X-ray Unit USER MANUAL Caution : When Calibration is required, it must be done by X-ray service technicians or manufacture. The Calibration required period is every 2 years. Reproducibility of the Radiation Output 1. Accuracy of X-ray tube voltage - 35 -... - Page 36 Diagnostic X-ray Unit USER MANUAL 2. Accuracy of current time product - 36 -...
- Page 37 Diagnostic X-ray Unit USER MANUAL - 37 -...
-
Page 38: Lamp Exchange Procedure
Diagnostic X-ray Unit USER MANUAL Lamp Exchange Procedure 1) It checks that the switch of a power-supply line is turned off. 2) Remove four bolts “A” at the bottom of a unit. 3) Remove two bolts “B” of Lamp gobo. 4) Remove Lamp gobo ”C”. -
Page 39: Fuse Exchange Procedure
Diagnostic X-ray Unit USER MANUAL Fuse Exchange Procedure 1) It checks that the main switch turned off. 2) Remove four bolts “A” at the Upper cover of a unit. 3) Open the Upper cover. 4) A new fuse “B” is inserted in a fuse socket. 5) After inserted a new fuse in a fuse socket, Cover Upper cover of a unit and joint four bolts. -
Page 40: Put In The Hand Switch
Diagnostic X-ray Unit USER MANUAL Put in the Hand Switch 1) Put on the hand switch connector into the socket “A”. 2) Main Switch “ON” 3) Check the status of action by pressing the button. (1 Step press button – Lamp and Laser “ON”, 2 Step press button – Shoot X-ray). Put in the Power Connector and Plug 1) Before put on the power cable connector “B”... -
Page 41: Diagnostic X-Ray Unit Stand Fixing
Diagnostic X-ray Unit USER MANUAL Note: 1) When collimator lamp and fuse are needed to be replaced, replace them by following the manual. The each spare collimator lamp and fuse are stocked inside the aluminum carrying case. 2) When x-ray SID and dual laser pointer adjustment are needed, contact manufacture for adjustment. - Page 42 Diagnostic X-ray Unit USER MANUAL [ Fixed Form ] [ Dimension ] - 42 -...
- Page 43 Diagnostic X-ray Unit USER MANUAL Section 4. Schematics - 43 -...
-
Page 44: Block Diagram
Diagnostic X-ray Unit USER MANUAL Block Diagram - 44 -... -
Page 45: Power Board
Diagnostic X-ray Unit USER MANUAL Power Board - 45 -... -
Page 46: Power Board (Drv)
Diagnostic X-ray Unit USER MANUAL Power Board - DRV - 46 -... -
Page 47: Main Board (Cpu)
Diagnostic X-ray Unit USER MANUAL Main Board - CPU - 47 -... -
Page 48: Main Board (Ep_Fb)
Diagnostic X-ray Unit USER MANUAL Main Board - EP_FB - 48 -... -
Page 49: Main Board (Ip_Fb)
Diagnostic X-ray Unit USER MANUAL Main Board - IP_FB - 49 -...
