Calibrating The Chore-Tronics Control - Chore-Time Tronics 3 Manual

Control Setup

Calibrating the Chore-Tronics Control

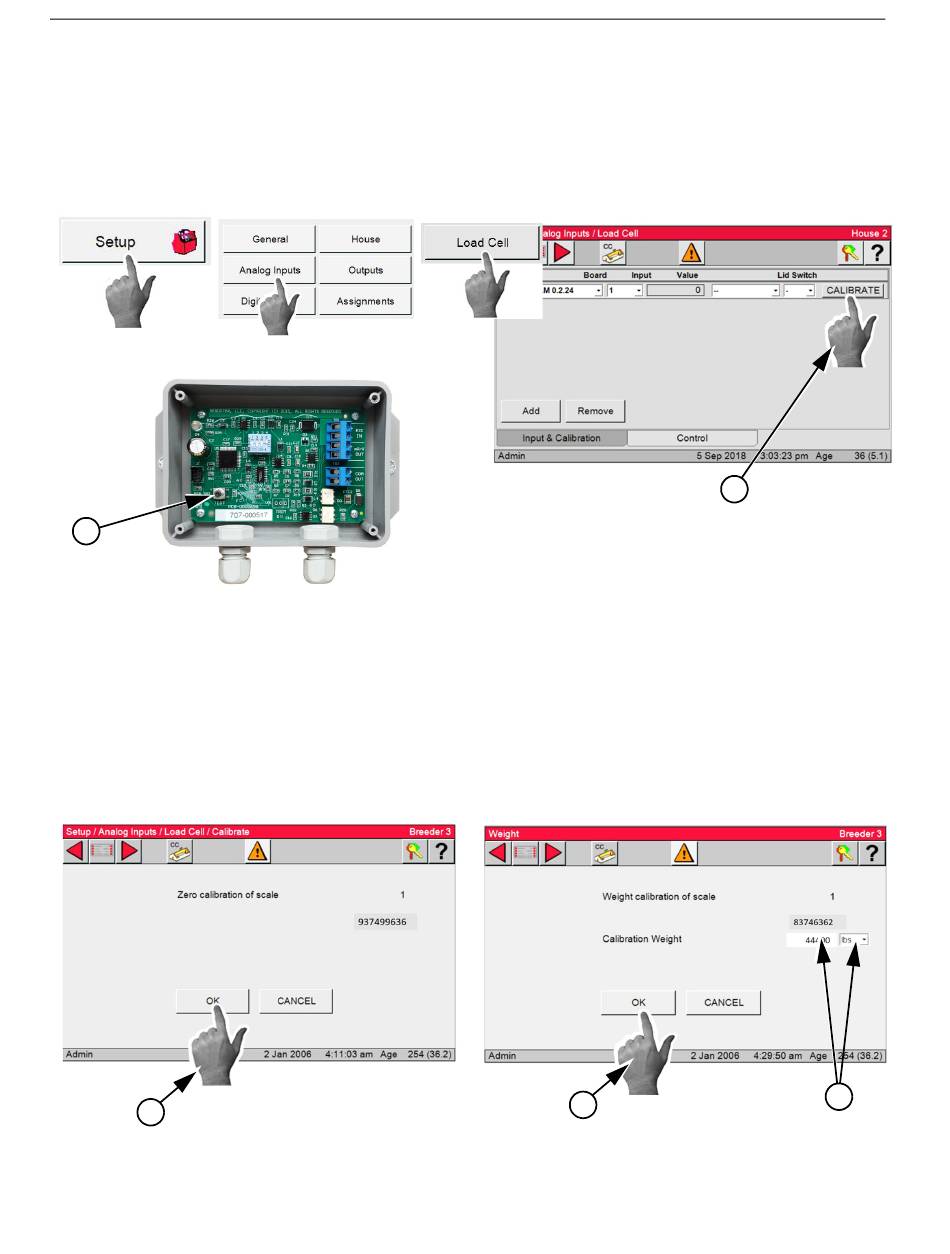

Calibrate the Chore-Tronic's 3 control using the calibration screens for Zero and Full weight by using the
HouseLink HL-10P(LV) test mode to output an empty and full weight simulated weight reading.
1.Press the TEST button on the HouseLink HL-10P(LV) two times for the 0mV/V output setting which rep-
resents an empty bin weight reading. Zero
2.At the Chore-Tronic's 3 go to the Setup/Analog Inputs/Load Cell Screen and Select Calibrate. This will take
you to the Zero Calibration screen.
1
3.Make sure the calibration numbers are steady. Select OK. If the calibration is accepted the screen will change
to Weight Calibration of Scale screen.
4.At the HouseLink HL-10P(LV) press the TEST button one time for the 2mV/V output setting which represents
a full bin weight reading.
5.At the Chore-Tronic's 3 in the Weight Calibration Scale screen enter the capacity of the loadcells and the units
from the dropdown.
For Example, if four 5000lb. load cells are used, then the calibration weight will be 20,000 lbs.
See Figure 2. on page 39 for Calibration weight. Make sure the calibration numbers are steady.
6.Press OK.
7.Press TEST button on Houselink HL-10P(LV) three more times return to normal operation.
