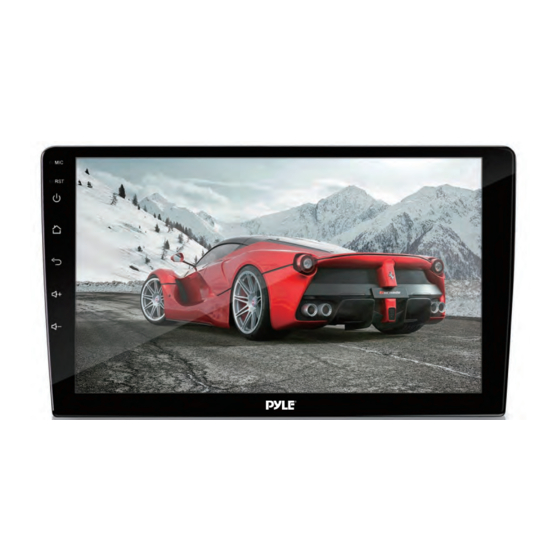

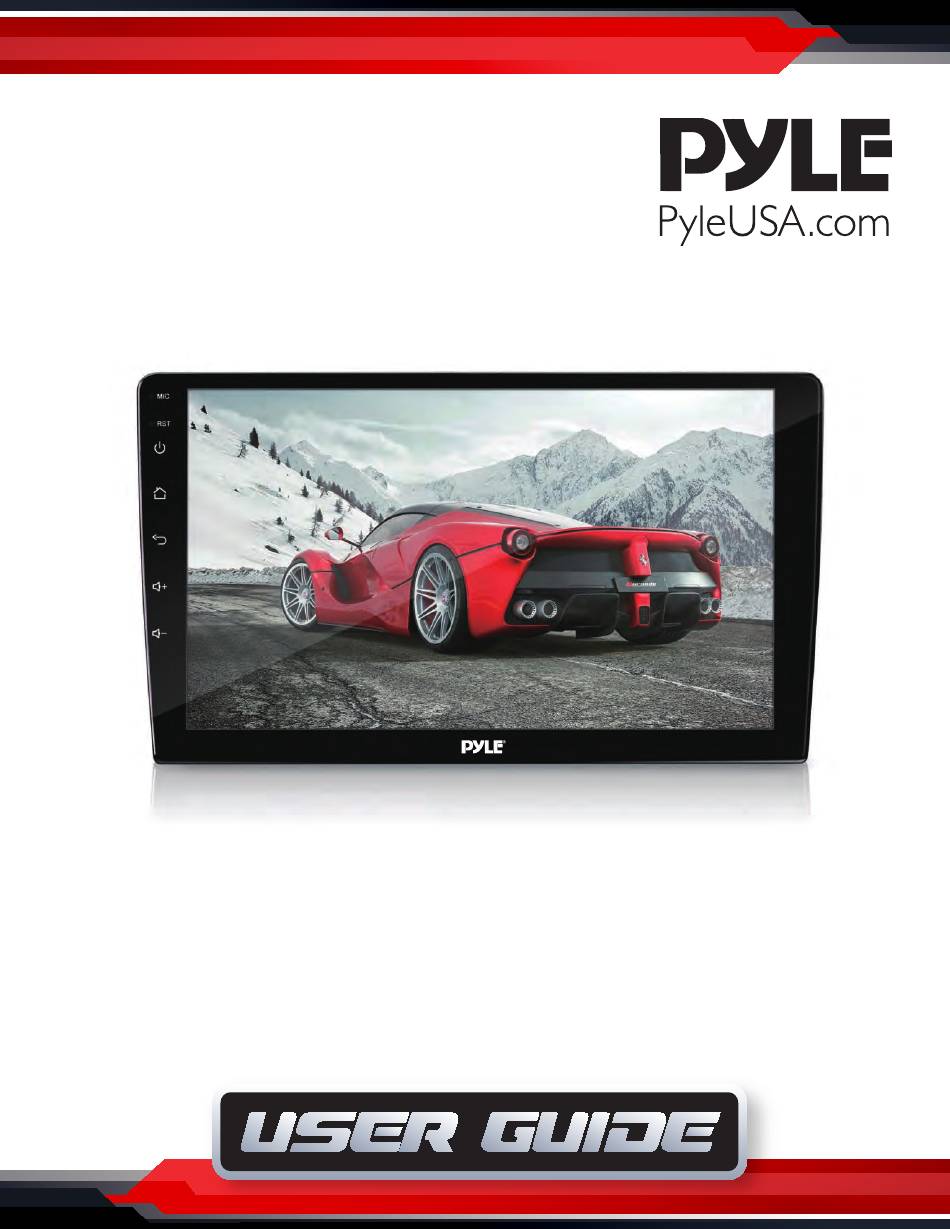

- Page 1 PLINTBL10 10.1-inch Double DIN Car Stereo Receiver with Wireless BT WIFI/GPS/AM/FM, Car Radio with 1080P HD Touch Screen, Multimedia Player + Mirror link for Android/iOS, Support Rearview Cam and Dual USB...
-
Page 2: Table Of Contents
Note: This unit is based on Android platform. Besides the standard Apps we provided with the unit, you can also download thousands of Apps and install it on our platform. Please kindly note NOT all Apps are compatible with this platform. If you have any compatibility problem with a 3rd party App, please contact your App provider. -
Page 3: System Installation
System Installation: Before starting: To prevent short circuits, be sure to disconnect the battery terminal before starting. Installation Guide Caution: 1. Consult your vehicle dealership before making any modi cations to your car’s body (ex. Drilling holes) 2. Use included screws in installation. Improper operation may damage machine or cause accidents. Do not install unit in any area where: •... -
Page 4: User Interface
App Screen - Interface Layout Swipe UP/DOWN to access more apps Music Navigation Click the main interface “navigation” to enter the navigation interface. If the memory card does not have map data, it will prompt download and enter the map management interface after con rming. -
Page 5: Online Music
Online music Click on the main interface "online music" to enter the online music interface. Need to connect to the internet. Music player button function description Folder Enter the sound settings Loop playback mode switch Previous/next song Pause (Play) Video playback Click "Video Player"... -
Page 6: Wireless Bt
Wireless BT Click the main interface "Bluetooth®" to enter the Wireless BT connection interface. When the BT is not connected: Enter the Wireless BT interface, there is no BT connection device displayed. Click the Wireless BT interface, such as the dial key, you will be prompted "Please connect HFP." www.PyleUSA.com... -
Page 7: Phone Link App
EQ - Equalizer Phone Link APP For the detailed operation instruction for Phone Link, please follow the instruction on actual unit. Third Party Apps For the detailed operation instruction for a certain 3rd party App, such as Google map, Youtube etc., please contact your 3rd party App provider for further service. -
Page 8: Memory Clean
Memory clean Cleaning up memory speeds up the system. Desktop wallpaper According to your personal preference, you can go from "wallpaper" to "dynamic wallpaper" the "gallery" sets the wallpaper as prompted. WLAN (Wi-Fi settings) Click “ ” to switch from OFF to ON. After searching for nearby wireless Wi-Fi, select the Wi-Fi hotspot you want to connect from the list. - Page 9 My GPS gets no reception. A: Check if the antenna properly connected. A: Mount Antenna directly to your vehicle (GPS antenna is to be magnetically mounted, it will boost GPS reception when attached) A: Check alternate antenna placement to test for interference How to I set the time? A: System setting, set time How do I turn up GPS instruction volume (I Can’t hear it over music)
-
Page 10: Wiring
Wiring - Back Panel: 1. For power cable 2. For radio antenna 3. For GPS antenna B C D 2 3 4 2 3 4 5 6 7 8 9 10 6 7 8 11 12 13 14 15 16 17 18 19 20 1. - Page 11 1. For power cable WIRING * Pink wire tells the monitor when to activate and display rearview camera on the display (optional) www.PyleUSA.com...
- Page 12 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
