Specifi cations
Case Dimensions:
6¹⁄₂"L x 1³⁄₄"W x 1¹⁄₈"D
Electrical:
Voltage: 12-24VAC/DC
Current: 53mA@12VDC;
72mA@24VDC; 95mA@12VAC
108mA@24VAC
Relay Contacts:
Main Relay (controller): 2A
Bell Relay:
Form A; 1 Amp @ 30VAC/DC
Environmental:
-20° F to 130° F
For Indoor and Outdoor Use
Description:
Schlage's KP212 keypad combines elegant looks with a mullion
mount design in a rugged, vandal resistant case, which you can use
for almost any application. The KP212 has hardened backlit keys
designed to perform in medium to high traffi c areas and in rough
duty environments. The electronics are also conformal coated, which
makes the keypad suitable for indoor or outdoor applications.
Basic Operation:
To gain access through the door enter your code (1-6 digits) followed
by the
key on the keypad.
Packing List:
1) KP212 Keypad
(1) Eight-Conductor Wire Harness
(1) Mullion Hardware Pack
(1) ⁵⁄₆₄" Allen Wrench
(1) Anti-Oxidant Grease Pack
(1) Installation/Programming Manual
www.schlage.com
(877) 671-7011

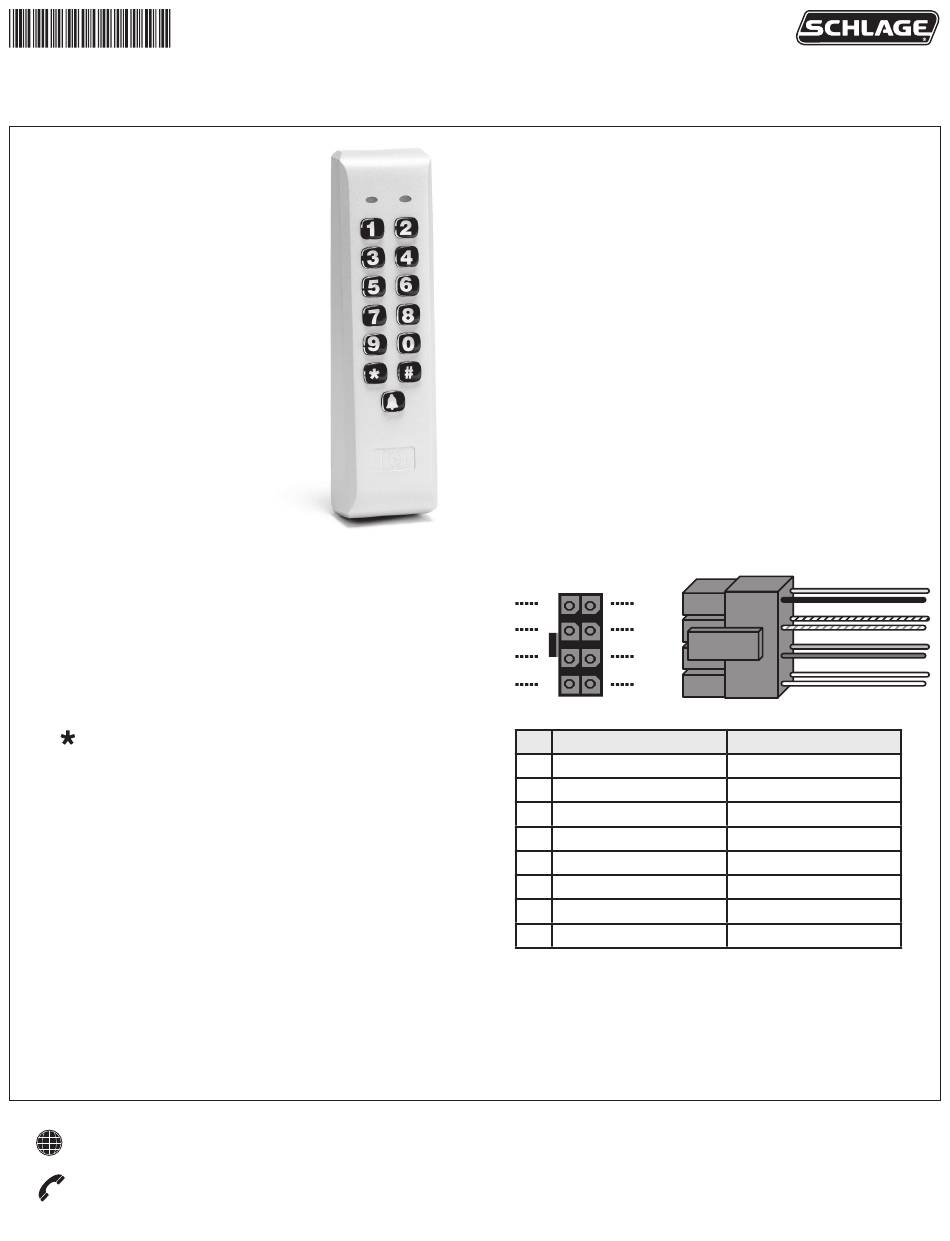

KP212 Keypad
Installation and Programming Instructions
Features
• 120 User Capacity
• Programmable Relay Time (0 to 99 seconds)
• Request to Exit (REX) Input
• Vandal Resistant Case
• Sealed for Indoor or Outdoor Applications
• LED's for Relay Status Indication
• Bell Output
• Surface Mount
• Illuminated Hardened Keys
• Rated for Greater than One Million Key Cycles
Applications
• Low to Medium/Heavy Traffi c Areas
• Rough Service Environments
• Mullion Frame Mounting
• Dimly Lit Areas
Wire Harness Confi guration:
2
1
4
3
6
5
8
7
Pin Wire Color
1
Red
2
Black
3
White/Black
4
White/Yellow
5
Blue
6
Brown
7
White
8
White
Signal Name
Power (+)
Power (-)
REX
Main Relay NC
Main Relay Common
Main Relay NO
Bell Relay Contact (A)
Bell Relay Contact (B)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schlage KP212
Summary of Contents for Schlage KP212
- Page 1 Schlage’s KP212 keypad combines elegant looks with a mullion mount design in a rugged, vandal resistant case, which you can use for almost any application. The KP212 has hardened backlit keys designed to perform in medium to high traffi c areas and in rough duty environments.
- Page 2 Refer to mounting height below. Wire the keypad using the diagrams in the following sections. Mount the KP212 keypad onto the mounting surface using the provided screws. Do no over-tighten the screws, which may result in damage. Keypad Mounting Height Mounting height can vary depending on requirements.
- Page 3 Basic Access Control Using an Electric Door Strike Connect the red (V+) and black (V-) wires to your power supply. Connect the blue wire (relay common) to positive on your power supply. Connect the brown wire (relay normally open) to the positive connection on your door strike. Connect negative connection on your door strike to the negative on the power supply.
- Page 4 Wiring a Request to Exit Device (REX) The KP212 is equipped with a REX input. The normally open REX input triggers the main relay for the amount of time you programmed for the master code. If the master code is set to toggle, the REX only triggers the relay for 5 seconds. There is no programming required for the REX to operate.
- Page 5 Programming the KP212 Keypad To program the KP212 you fi rst must enter program mode. To enter program mode enter the following on the keypad: 99 # program code (default program code is 1234). Keypad Default Settings Option Default Setting...
- Page 6 Programming Examples Changing the Master Code: The following example show how to change the master code to 4875 from the default of 1234. Enter Program Mode 99 # 1234 * Program New Master Code 1 # 4875 * 4875 * Exit Program Mode Change the Main Relay Time The following example shows how to change the main relay time.
- Page 7 Explanation Solution LED’s cycling slowly from right to left. The KP212 Mullion is designed to monitor for Verify the power supply output voltage. If it is low voltage. Once low voltage is detected, the below the voltage threshold of 7.5 Volts AC or...
- Page 8 Keypad Mounting Template Mounting Holes: ¹¹⁄₆₄” 3²⁵⁄₆₄ (3.393)” Wiring Hole: ⁷⁄₈” The Schlage keypad is desingd for surface mount applications. You must drill a ⁷⁄₈” hole for the wire harness 1⁷⁄₁₆ (1.433)” connector, as shown, so the unit is flat against the mounting surface.
