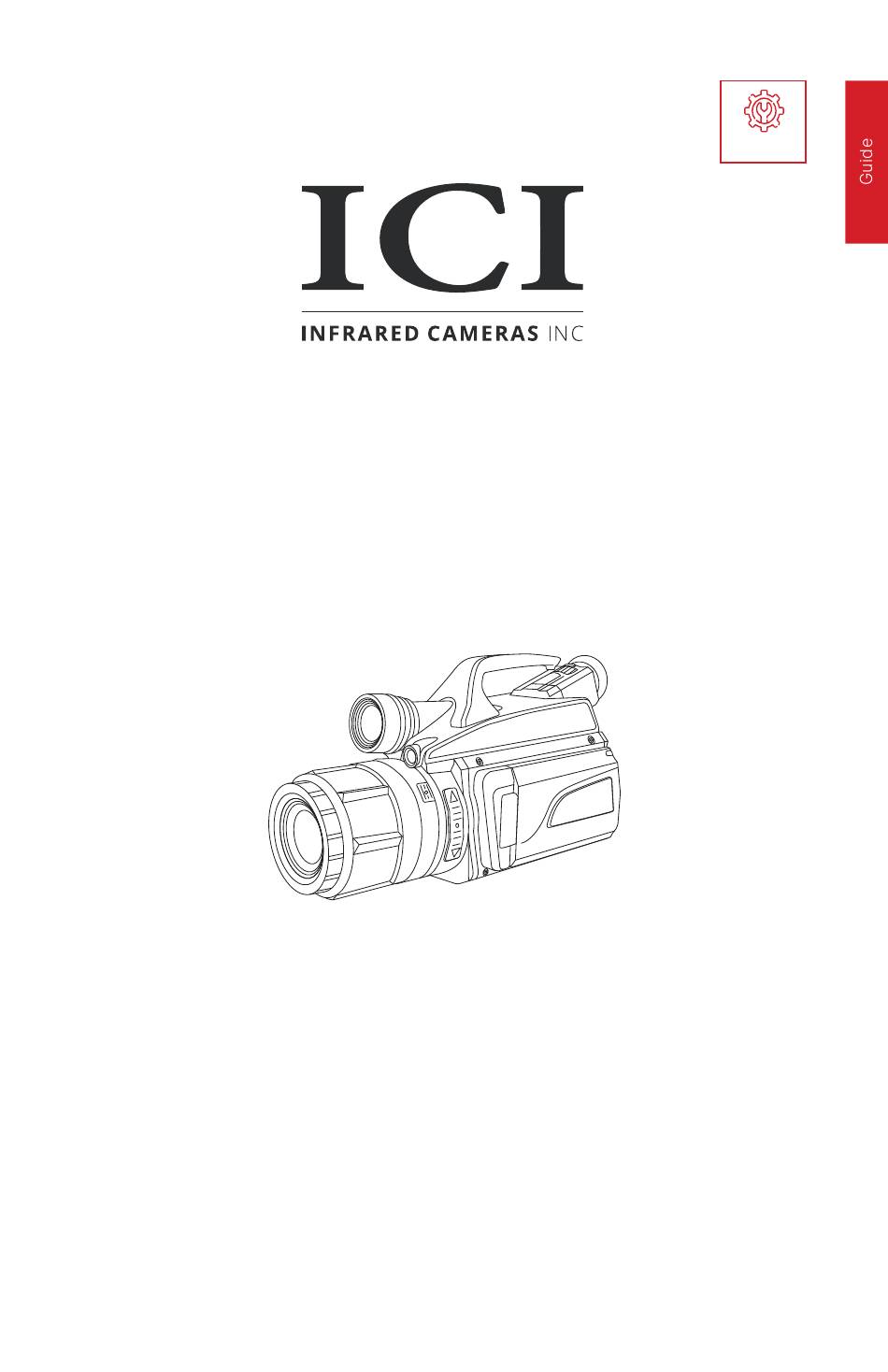

- Page 1 Edit Text Industry GAS DETECTIR SERIES QUICK START GUIDE ICI cameras fall under US Federal Law and Export Control. 2105 W. Cardinal Dr. Beaumont, TX 77705 Phone: (409) 861-0788 Toll Free: (866) 861-0788 infraredcameras.com support@infraredcameras.com We Are IR ™...
- Page 2 IN NO EVENT SHALL ICI BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ICI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
-
Page 3: Package Includes
Package Includes Gas DetectIR Device USB Cable AV Cable Power Adapter Cable Power Adapter Charger Cable Battery SD Card Charging Base ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE PRESENT BEFORE BEGINNING INSTALLATION... - Page 4 Set Up The camera can be used as Mount the fully charged device a handheld device. to a tripod using the ¼”-20 mount located on the body. MAKE SURE TRIPODS DO NOT BLOCK THE DIRECT PATH OF THROUGH TRAFFIC TO ENSURE THE EQUIPMENT WILL NOT BE MOVED OR KNOCKED DOWN.
- Page 5 TURN ON THE CAMERA BY PRESSING AND HOLDING THE POWER BUTTON FOR AT LEAST THREE SECONDS. THE INTERNAL SOFTWARE MAY TAKE UP TO 5 MINUTES TO LAUNCH. DO NOT POWER OFF THE DEVICE OR PRESS BUTTONS WHILE SOFTWARE IS LAUNCHING. PRESSING BUTTONS OR TURNING OFF THE DEVICE MAY CORRUPT THE FILE SYSTEMS.
-
Page 6: Battery Installation
Battery Installation SET THE THERMAL DEVICE UPRIGHT ON A LARGE FLAT SURFACE WHEN REMOVING OR REPLACING THE BATTERY. Ensure metal contacts are aligned; Pinch the battery bay buckles simultaneously. Battery will be then, push the battery into the battery bay until the battery is fully released from the battery bay. - Page 7 CHARGE THE BATTERY FOR A MINIMUM OF 3 HOURS BEFORE USING THE DEVICE. ICI DOES NOT RECOMMEND CHARGING THE DEVICE WHILE IT IS ON A TRIPOD. LAY DEVICE FACE DOWN ON A FLAT AND STABLE DESK OR TABLE WHILE CHARGING.
- Page 8 Charging Instructions: Option 2 REMOVE THE BATTERIES FROM THE DEVICE BEFORE CONTINUING WITH THIS METHOD OF CHARGING. Plug charger cable into the Ensure metal contacts are battery charging base. aligned; then, insert batteries into the battery charging base. Plug power cord into a 110/120V electrical outlet.
-
Page 9: Memory Card
Memory Card SET THE THERMAL DEVICE UPRIGHT ON A LARGE FLAT SURFACE WHEN REMOVING OR REPLACING THE BATTERY. Slide the battery bay cover latch. Slide the connector bay latch lock and open the connector bay latch door. Close the battery bay lock. User should hear a click sound. - Page 10 Website: www.infraredcameras.com You may reach a representative by phone or email Mon – Fri 8:00AM - 5:00PM CST. ICI manufactures complete systems and software. We can provide complete engineering, software, and OEM solutions. Our Fortune 500 clients rely on us for infrared equipment and thermography training (which we offer through the Infrared Training Institute).
