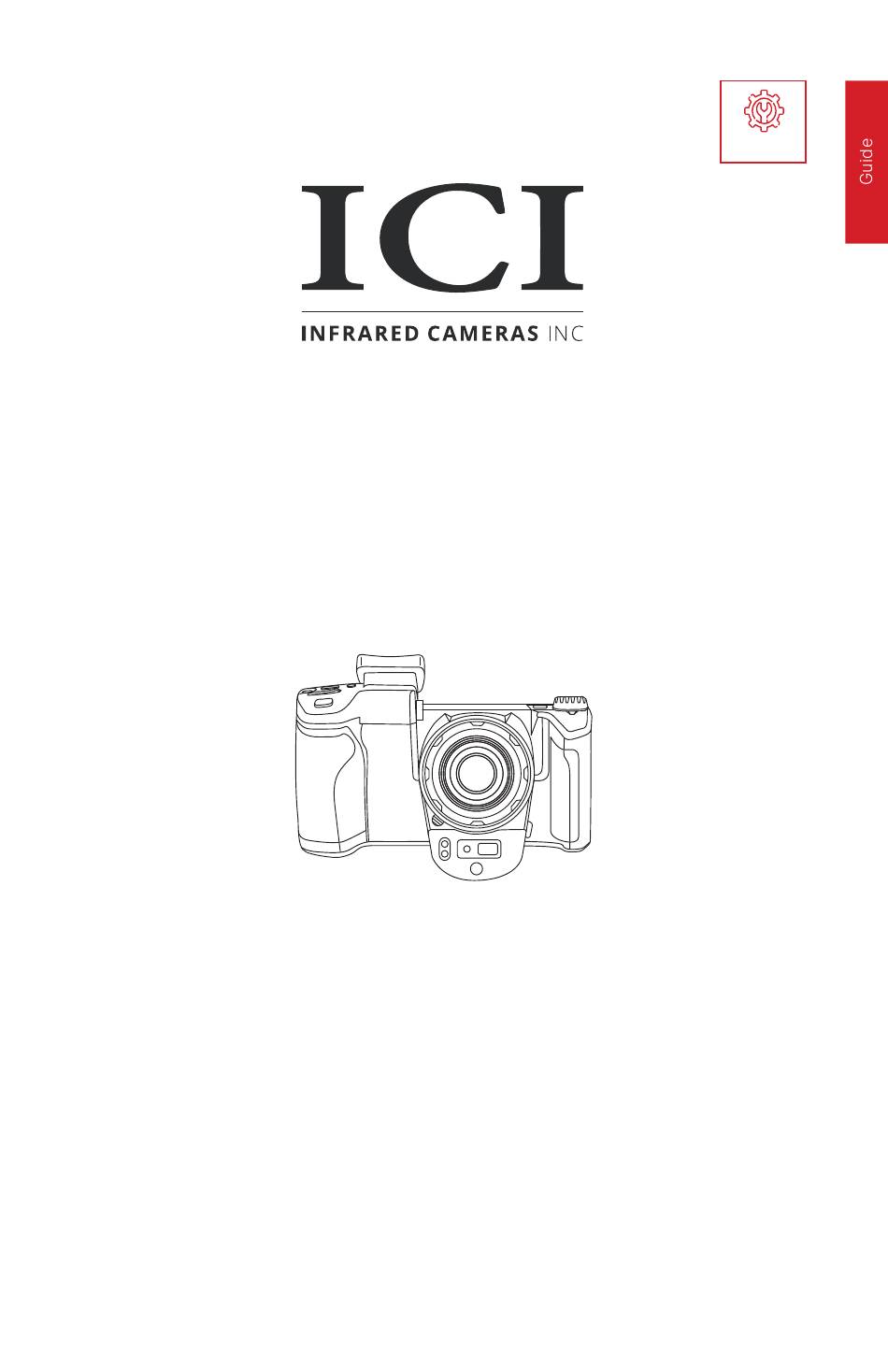

- Page 1 Edit Text Industry I-CAM 380/I-CAM 640 SERIES QUICK START GUIDE ICI cameras fall under US Federal Law and Export Control. 2105 W. Cardinal Dr. Beaumont, TX 77705 Phone: (409) 861-0788 Toll Free: (866) 861-0788 infraredcameras.com support@infraredcameras.com We Are IR ™...
- Page 2 IN NO EVENT SHALL ICI BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ICI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
-
Page 3: Package Includes
Package Includes Ethernet Cable HDMI Cable USB Cable I-Cam Device Power Adapter Battery x2 SD Card Charging Base ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE PRESENT BEFORE BEGINNING INSTALLATION... - Page 4 Set Up The camera can be used as Mount the fully charged device a handheld device. to a tripod using the ¼”-20 mount located on the body. MAKE SURE TRIPODS DO NOT BLOCK THE DIRECT PATH OF PERSON(S) TO BE IMAGED TO ENSURE THE EQUIPMENT WILL NOT BE MOVED OR KNOCKED DOWN.
- Page 5 TURN ON THE CAMERA BY PRESSING AND HOLDING THE POWER BUTTON FOR AT LEAST TWO SECONDS. Power on device. PRESS AND HOLD THE POWER BUTTON FOR MORE THAN 5 SECONDS TO SHUT DOWN THE CAMERA. THE THERMAL IMAGER NEEDS SUFFICIENT WARM-UP TIME FOR THE MOST ACCURATE TEMPERATURE MEASUREMENTS AND BEST IMAGE QUALITY.
-
Page 6: Battery Installation
Battery Installation MAKE SURE TO HOLD THE CAMERA FIRMLY IN BOTH HANDS WHEN REMOVING OR REPLACING THE BATTERY. Slide the battery bay latch lock. Slide the battery bay cover latch. Ensure metal contacts are Open the battery bay cover. aligned; then, push the battery into the battery bay until battery is secure under battery buckle. - Page 7 Close the battery bay. To replace a battery held in the battery bay push the battery buckle. Battery will be ejected. For extra security slide the Slide the battery bay latch to battery bay latch lock. secure the battery bay cover. ENSURE BATTERY COVER IS PROPERLY CLOSED.
-
Page 8: Memory Card
Memory Card MAKE SURE TO HOLD THE CAMERA FIRMLY IN BOTH HANDS WHEN REMOVING OR REPLACING THE MEMORY CARD. Slide the battery bay latch lock. Slide the battery bay cover latch. Insert the SD Card into the card Open the battery bay cover. bay until a clicking sound is heard. - Page 9 Replace a memory card by pressing Close the battery bay. downwards on the memory card until a clicking sound is heard; then, release. Memory card will be ejected. For extra security slide the Slide the battery bay latch to battery bay latch lock. secure the battery bay cover.
- Page 10 CHARGE THE BATTERY FOR A MINIMUM OF 3 HOURS BEFORE USING THE DEVICE. ICI DOES NOT RECOMMEND CHARGING THE DEVICE WHILE IT IS ON A TRIPOD. LAY DEVICE FACE DOWN ON A FLAT AND STABLE DESK OR TABLE WHILE CHARGING.
- Page 11 Charging Instructions: Option 2 REMOVE THE BATTERIES FROM THE DEVICE BEFORE CONTINUING WITH THIS METHOD OF CHARGING. Plug the jack end of the power Insert batteries into the battery charger. adapter into the battery charger. Plug power cord into a 110/120V electrical outlet.
-
Page 12: Lens Installation
Lens Installation MAKE SURE TO HOLD THE CAMERA FIRMLY IN BOTH HANDS WHEN CHANGING THE LENS. Rotate the attached lens Press the lens changing button. clockwise to remove. Align the lens threads with the Rotate the lens counter clockwise U-shaped notch upwards. until a clicking sound is heard. - Page 13 Website: www.infraredcameras.com You may reach a representative by phone or email Mon – Fri 8:00AM - 5:00PM CST. ICI manufactures complete systems and software. We can provide complete engineering, software, and OEM solutions. Our Fortune 500 clients rely on us for infrared equipment and thermography training (which we offer through the Infrared Training Institute).
