Revision: 03.2024-001
Industry
Ind

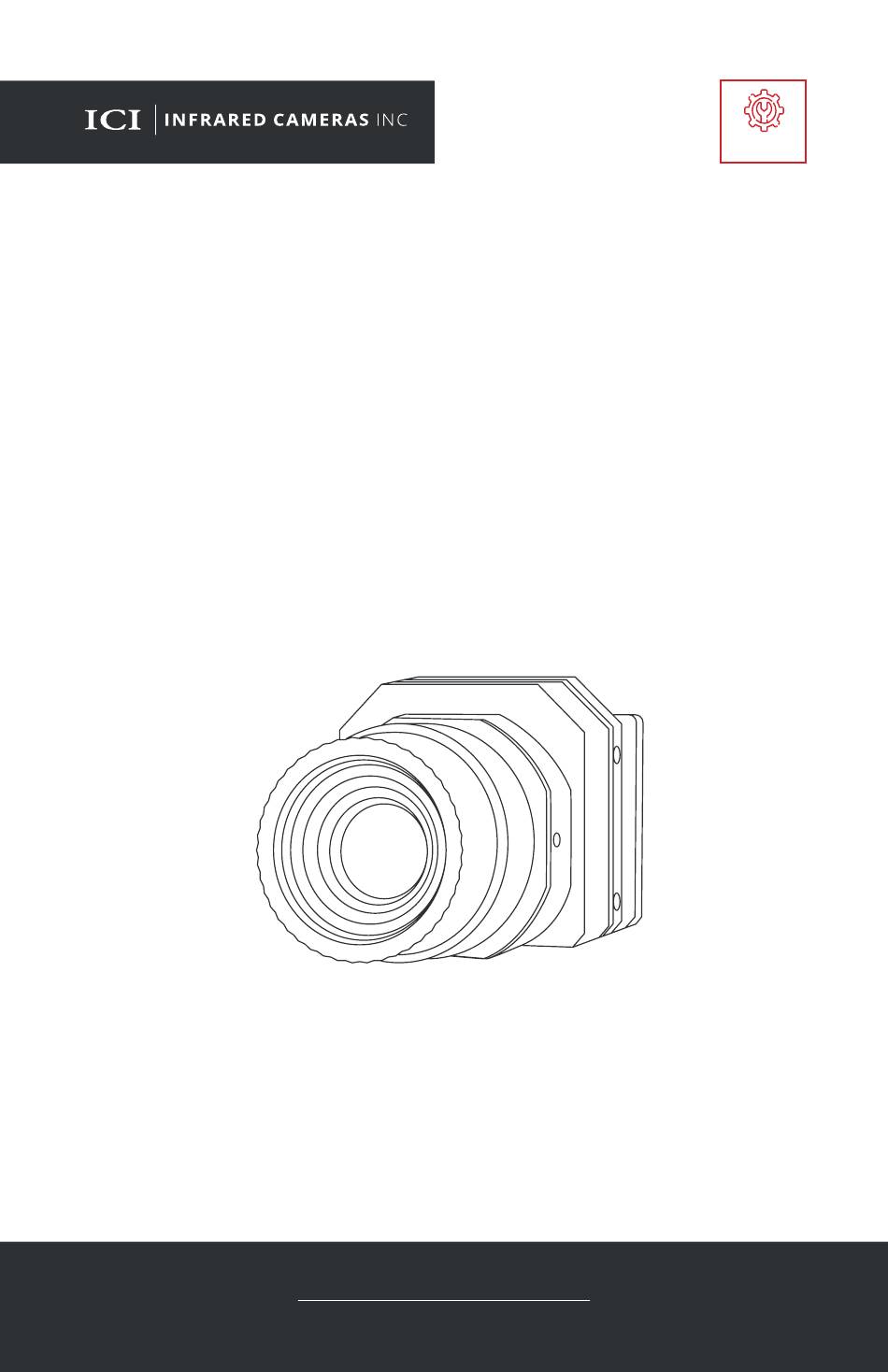

HELIOS 640 P-SERIES
USER MANUAL
PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON.
IMPORTANT SAFETY INFORMATION INSIDE.
ICI cameras fall under US Federal Law and Export Control.
2105 W. Cardinal Dr. Beaumont, TX 77705
For more information, contact us: (409) 861-0788 | sales@infraredcameras.com | www.infraredcameras.com
Advertisement
Table of Contents
Related Manuals for ICI HELIOS 640 P Series
Summary of Contents for ICI HELIOS 640 P Series
- Page 1 PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON. IMPORTANT SAFETY INFORMATION INSIDE. ICI cameras fall under US Federal Law and Export Control. 2105 W. Cardinal Dr. Beaumont, TX 77705 For more information, contact us: (409) 861-0788 | sales@infraredcameras.com | www.infraredcameras.com...
- Page 2 HELIOS 640 P-SERIES USER MANUAL Revision History 03.2024-001 Document created...
-
Page 3: Table Of Contents
Thermal imager does not power on ..........19 10-2 Thermal imager shuts off unexpectedly ........19 10-3 No thermal image ................19 10-4 Unclear or dark visible images ............19 10-5 Temperature readings are incorrect ..........19 About ICI ������������������������������������������������������������20... -
Page 4: Disclaimers
HELIOS 640 P-SERIES USER MANUAL Disclaimers Terms and Conditions Warranty Terms and Condition of Sale are made available online at: https://thermalcamera.com/support/terms-and-conditions-of-sale/ 1-2 U.S. Government Regulations This product may be subject to U.S. Export Regulations. Please send any inquiries to support@thermalcamera.com 1-3 Copyright ©... -
Page 5: User Notice
HELIOS 640 P-SERIES USER MANUAL User Notice Calibration Annual calibration to the thermal camera is recommended. Contact customer service to schedule maintenance. Accuracy For very accurate results, we recommend that you wait a minimum of 5 minutes after you have started the camera before measuring a temperature. Cybersecurity After the products are connected to the Internet, they may face risks including but not limited to network attacks, hacker attacks, virus infections, etc. -
Page 6: Intended Use
HELIOS 640 P-SERIES USER MANUAL Intended Use The ICI Helios 640 P-Series infrared camera captures 640 x 512 radiometric images and provides accurate temperature measurements up to 500°C (932°F). A high performance device, it is compact, lightweight, and easy to install in tight spaces. -
Page 7: Training
HELIOS 640 P-SERIES USER MANUAL Training To read about infrared training, visit: https://infraredtraininginstitute.com/... -
Page 8: Safety Information
HELIOS 640 P-SERIES USER MANUAL Safety Information • Operation is subject to the following two conditions: 1 This device may not cause harmful interference, and 2 this device must accept any interference received, including interference that may cause undesired operation. •... - Page 9 HELIOS 640 P-SERIES USER MANUAL • Be careful when cleaning the infrared lens. Do not clean the infrared lens too vigorously. This can damage the anti-reflective coating. • Avoid condensation. Taking the device from cold to hot will cause condensation in the thermal imager. To protect the device, power on the device and wait until it becomes warm enough for the condensation to evaporate.
-
Page 10: Technical Specifications
HELIOS 640 P-SERIES USER MANUAL Technical Specifications Helios 640 Pixel Resolution 640 x 512 Accuracy ± 2°C (± 3.6°F) or ± 2% Temperature Range Standard: -20°C to 150°C (-4°F to 302°F)/ Industrial:0°C to 500°C (32°F to 932°F) Operation Range -40°C to 80°C (-40°F to 176°F) Storage Range -45°C to 70°C (-49°F to 158°F) Detector Type... -
Page 11: Structure
HELIOS 640 P-SERIES USER MANUAL Structure Appearance and Definitions of Housing Interface Germanium Lens USB Type-C Slot SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... -
Page 12: Package Includes
HELIOS 640 P-SERIES USER MANUAL Package Includes Helios 640 Camera USB to USB Type-C Cable Software USB Drive ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE PRESENT BEFORE BEGINNING INSTALLATION... -
Page 13: Quick Start Instructions
HELIOS 640 P-SERIES USER MANUAL Quick Start Instructions Plug n’ Play Setup Plug the other end of the USB Plug the Type-C end of the cable into your computer. USB cable into the back of the Helios 640 camera. Power on computer. -
Page 14: Tripod Setup
HELIOS 640 P-SERIES USER MANUAL Tripod Setup Mount the Helios 640 camera to a tripod using the ¼-20 mount. Plug the Type-C end of the USB cable into the back of the Helios 640 camera. MAKE SURE TRIPODS DO NOT BLOCK THE DIRECT PATH OF FOOT TRAFFIC TO ENSURE THE EQUIPMENT WILL NOT BE MOVED OR KNOCKED DOWN. -
Page 15: Software
HELIOS 640 P-SERIES USER MANUAL Power on computer. Plug the other end of the USB cable into your computer. Software Install IR Flash software using the Once installed, launch IR Flash software USB drive. Refer to the IR software by double-clicking the Flash User Manual for instructions. -
Page 16: Operation Instructions
POWER THE DEVICE ON AGAIN. IR Flash Pro Software arrives installed on computers and tablets purchased from ICI as complete systems and it will launch automatically on startup. A copy of the software is provided on the Software USB Drive. Documentation can be found... -
Page 17: Cleaning And Maintenance
HELIOS 640 P-SERIES USER MANUAL Cleaning and Maintenance Cleaning the Germanium Lens Do not use corrosive chemicals on the optical glass components. The germanium window surface is coated with anti-reflection coating. Dust, grease, and fingerprints will produce harmful substances and lead to a decline in performance, or cause scratches. -
Page 18: Troubleshooting
HELIOS 640 P-SERIES USER MANUAL Troubleshooting If the user encounters any problems while using the imager, refer to the following options. If the problem persists, disconnect the power and contact the customer support department. 10-1 Thermal imager does not power on •... -
Page 19: About Ici
Website: www.infraredcameras.com You may reach a representative by phone or email. ICI manufactures complete systems and software. We can provide complete engineering, software, and OEM solutions. Our Fortune 500 clients rely on us for infrared equipment and thermography training (which we offer through the Infrared Training Institute).
