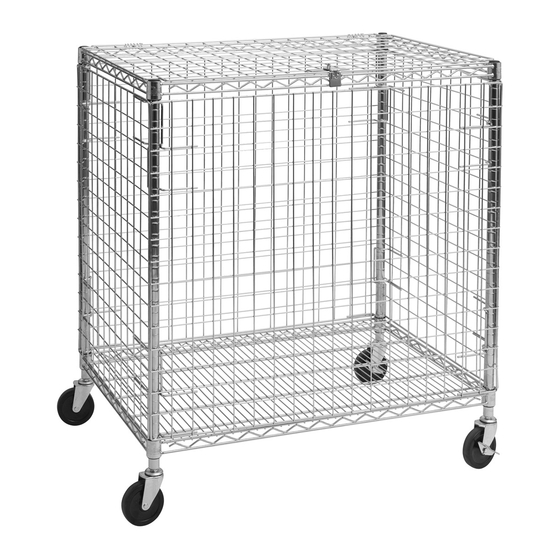

Sportime Big Ball Bin Assembly Manual

Download this manual

Items 026943

November 2018

Big Ball Bin Assembly Guide

Sportime.com | 800-283-5700

Need help?

Do you have a question about the Big Ball Bin and is the answer not in the manual?

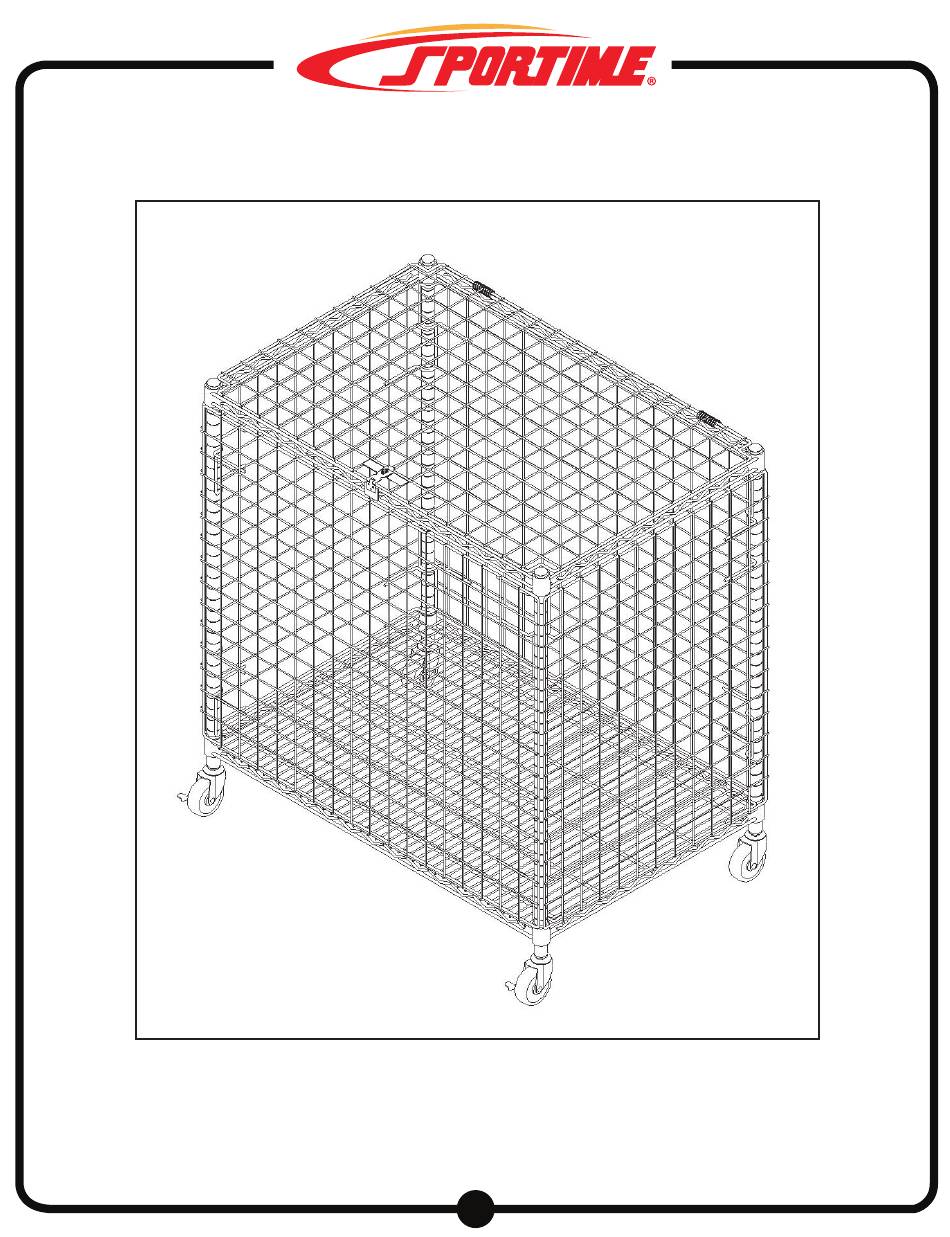

Page 1 Items 026943 November 2018 Big Ball Bin Assembly Guide Sportime.com | 800-283-5700...
Page 2 Items 026943 Component List A - 1pc E - 4 pcs F - 18 pcs B - 1pc G - 2 pcs each C - 2 pcs D - 2 pcs Figure 1: Component List...
Page 3 Items 026943 Assembly Instructions Step 1. Figure 2: Attach the clips (F) to the bottom ring Step 1 on the rod (E), as shown in Figure 2. The bottom end has the threaded hole for the casters. Repeat for other three rods (E). Step 2.
Page 4 Items 026943 Assembly Instructions Step 3. Figure 4: Screw in the four casters (G) to the Step 3 bottom of the rods (E), as shown in Figure 4. For the best results, screw the locking casters diagonally across from each other.
Page 5 Items 026943 Assembly Instructions Step 5. Figure 6: Slide top shelf (B) over the clips, as Step 5 shown in Figure 6. Step 6. Figure 7: Attach front panel (C) to the rods (E). Step 6 Note the positions of the attachments on the panel.
Page 6 Items 026943 Assembly Instructions Step 7. Figure 8: Attach side panels (D) to the rods, as Step 7 shown in Figure 8. Sportime.com | 800-283-5700...
