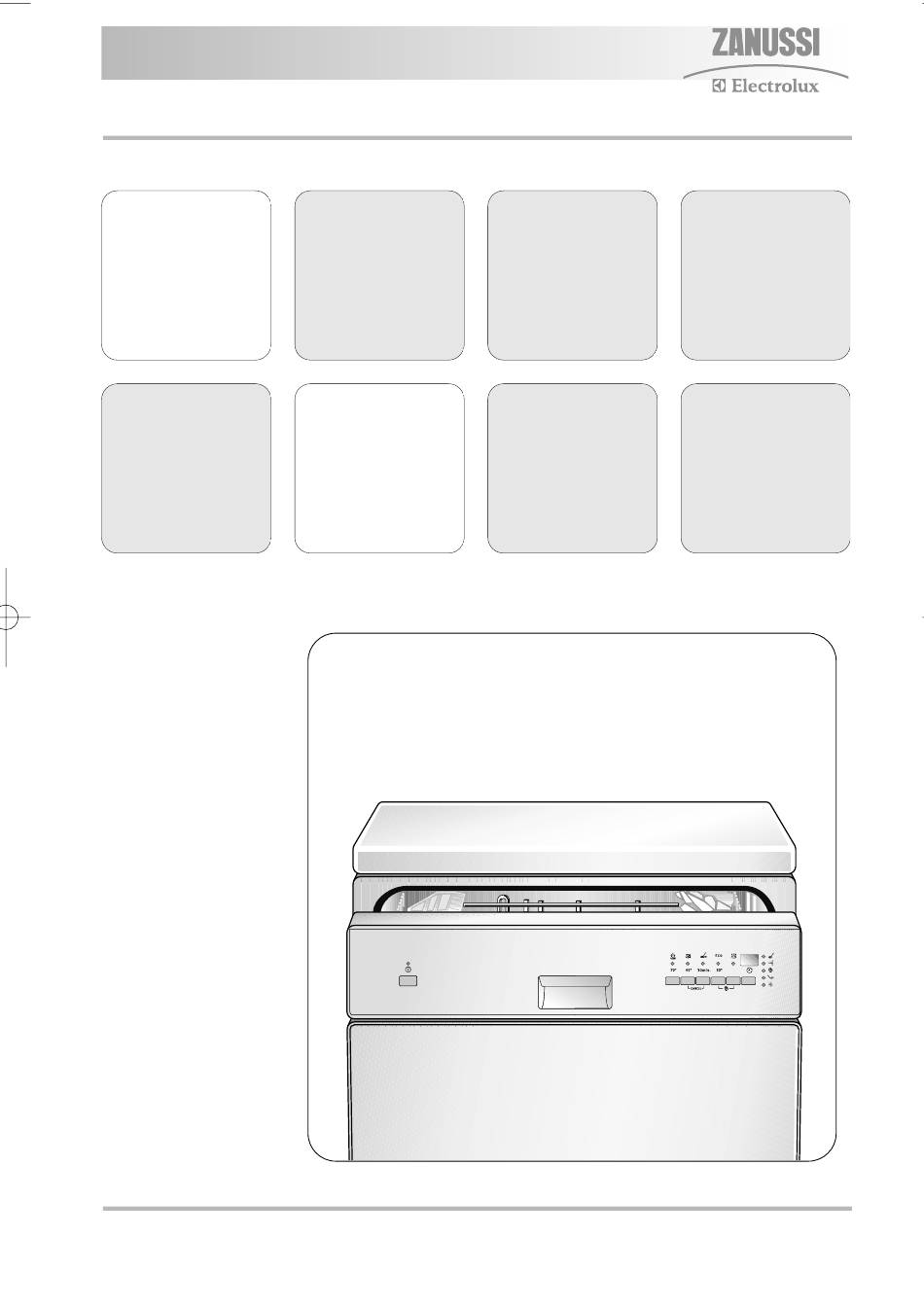

- Page 1 User manual Dishwasher ZDF 411...
-
Page 2: Table Of Contents
Thank you for selecting our appliance We wish you lots of enjoyment with your new appliance and we hope that you will consider our brand again when purchasing household appliances. Please read this manual carefully and keep it throughout the product life cycle as a reference document. -
Page 3: Safety Information
Safety information In the interest of your safety and to ensure the Under no circumstances should you attempt correct use, before installing and first using the to repair the machine yourself. Repairs appliance, read this user manual carefully, carried out by inexperienced persons will including its hints and warnings. - Page 4 Installation Check your dishwasher for any transport damage. Never connect a damaged machine. If your dishwasher is damaged contact your supplier. All packaging must be removed before use. Any electrical and plumbing work required to install this appliance must be carried out by a qualified and competent person.
-
Page 5: Control Panel
Control panel 1. On/Off button and On/Off indicator light Function buttons 2. Programme selection buttons The following functions can be set with the help of these buttons: 3. Half load button setting the water softener, 4. Delay start button cancel a washing programme or a delay start in progress, 5. - Page 6 The digital display indicates: Half load button - the level of hardness to which the water This option is useful and economical when softener is set, baskets are not fully loaded. It reduces the consumption of water and energy. - the approximate remaining time of the Remember to load both baskets.
- Page 7 Indicator lights Wash Illuminates when a washing programme is set and remains illuminated for all the duration of the washing programme. Turns off when the washing programme has ended. End of programme Illuminates when a washing programme has ended. Multi-tab function Indicates the activation/deactivation of the “Multi-tab function”...
- Page 8 3. The countdown will decrease with steps of 1 Select and start a washing hour. programme 4. The opening of the door will interrupt the countdown. Close the door; the countdown IMPORTANT! will continue from the point at which it was Select the washing programme and delay start interrupted.
- Page 9 Cancel a delay start or a washing programme in progress Simultaneously press and hold the two Cancel buttons (B and C) until NO programme button light is illuminated. Cancelling a delay start involves also the cancelling of the washing programme set. In this case you have to set the washing programme again.
-
Page 10: Washing Programme
Washing programmes Programme Cycle description Intensive 70° Heavy soil. Prewash - Main wash - Crockery, cutlery, pots and pans 2 intermediate rinses - Final rinse - Drying Normal 65° Normal soil. Prewash - Main wash - Crockery, cutlery, pots and pans 1 intermediate rinse - Final rinse - Drying 30 min. -
Page 11: Set The Water Softener
Set the water softener The dishwasher is equipped with a water The softener should be adjusted according to softener designed to remove minerals and salts the hardness of the water in your area. Your from the water supply, which would have a local Water Authority can advise you on the detrimental or adverse effect on the operation hardness of the water in your area. - Page 12 Setting the water softener manually (see table) The water softener is factory set at position 2. Set switch to position 1 or 2 Setting the water softener electronically (see table) The water softener is factory set at position 5. 1. Press the On/Off button. The dishwasher 4.
-
Page 13: Use Of Dishwasher Salt
Use of dishwasher salt CAUTION! Use only special salt suitable for dishwashers Unscrew the cap. Only before filling with Using the funnel salt for the first time, provided, pour in the fill the salt container salt until the container is with water filled with salt. -
Page 14: Use Of Rinse Aid
Use of rinse aid Open the lid. Fill up with rinse aid. Clean up any rinse aid The maximum level for which overflows. Close filling is indicated by the lid and press until it "max". locks. CAUTION! Never fill the rinse aid dispenser with any other substances (e.g. -
Page 15: Loading Cutlery And Dishes
Loading cutlery and dishes The following items are not suitable for use When loading the dishwasher, make sure in the dishwasher: that you: - Remove all left over food and debris. - Cutlery with wooden, horn, china or mother-of-pearl handles - Soften remnants of burnt food in pans - Plastic items that are not heat resistant - Load hollow items such as cups, glasses,... - Page 16 Load the lower basket. The two rows of prongs Arrange serving dishes and large lids around the on the lower basket can edge of the basket. be easily lowered to allow you to load pots, pans and bowls. Load upper basket. For taller items, the cup If plates are to be loaded in the upper Light items (plastic...
- Page 17 Adjusting the height of the upper basket If washing very large plates you can load them in the lower basket after moving the upper basket to the higher position. Maximum height of the dishes in: upper basket lower basket With upper basket raised 20 cm 31 cm With upper basket lowered...
-
Page 18: Use Of Detergent
Use of detergent IMPORTANT! Only use detergents suitable for dishwashers. Observe the manufacturer’s dosing and storage recommendations. Open the lid. Observe the dosing Fill in the detergent in levels. compartment A. For programmes with When using detergent Close the lid. prewash add an tablets: additional detergent... - Page 19 This appliance is equipped with the “Multi-tab If the drying results are not satisfactory we function”, that allows the use of the “Multi-tab” suggest that you: combi detergent tablets. 1. Fill up the rinse aid dispenser with rinse aid. These products are detergents with a 2.
-
Page 20: Unloading The Dishwasher
Unloading the dishwasher IMPORTANT! Empty the lower basket first and then the upper one; this will avoid water dripping from Open the dishwasher’s door, leave it ajar and the upper basket onto the dishes in the lower wait a few minutes before removing the one. -
Page 21: Care And Cleaning
Care and cleaning Cleaning the filters IMPORTANT! NEVER use the dishwasher without filters. Incorrect repositioning and fitting of the filters will produce poor washing results and will result in damage to the appliance. The dishwasher must Clean filters A, B and C Turn the handle about Remove filter A from the be switched off... - Page 22 4. Pull the machine out together with the External cleaning hoses. Clean the external surfaces of the machine and 5. Only transport the dishwasher in an upright control panel with a damp soft cloth. If position, otherwise salt water may run out. necessary use only neutral detergents.
-
Page 23: Environmental Concerns
Environmental concerns Packaging material Old appliance The packaging materials are environmentally The symbol on the product or on its friendly and can be recycled. The plastic packaging indicates that this product may not components are identified by markings, e.g. be treated as household waste. Instead it shall >PE<, >PS<, etc. -
Page 24: What To Do If
What to do if ... The dishwasher will not start or stops during operation. Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the indications described in the chart, without calling out an engineer. Open the door and carry out the following suggested corrective actions. - Page 25 If the malfunction or fault code reappears contact the Service Force Centre. For other fault codes not described in the above chart, please contact your Service Force Centre. The wash results are not satisfactory The wrong washing programme has been selected. The dishes are not clean The dishes were arranged in such a way as to stop water reaching all parts of the surface.
-
Page 26: Technical Data
Technical data Dimensions Width 60 cm Height 85 cm Depth. 60 cm Electrical connection Information on the electrical connection is given on the rating plate on Voltage - Overall power - Fuse the inner edge of the dishwasher’s door. Water supply pressure Minimum 0,05 MPa (0,5 bar) Maximum... -
Page 27: Hints For Test Institutes
Hints for test institutes Testing in accordance with EN 60704 must be Test in accordance with EN 50242 must be carried out with appliance fully loaded and carried out when the salt container and rinse using the test programme (see "Consumption aid dispenser have been filled with salt and values"). -
Page 28: Installation
Installation WARNING! Any electrical and/or plumbing work required to install this appliance should be carried out by a qualified electrician and/or plumber or competent person. Water connection WARNING! WARNING! The dishwasher must not be connected to Only use, for connection to the water mains, open water appliances or instantaneous water new hose-set;... - Page 29 CAUTION! Always be sure, that there is no water leakage from hoses and their connections after the installation. Ensure that the hoses When connecting the are not kinked, crushed drain hose to an under or entangled. sink trap spigot, the entire plastic membrane (A) must be removed.
- Page 30 Fitting under a counter By removing the dishwasher’s worktop, you Be sure that once the appliance has been can install it under a close fitting sink unit or a installed, it is easily accessible for the service pre-existing top. engineer in the event that a repair is required. Unscrew the two screws Push the top backwards Lift top at the front and...
-
Page 31: Guarantee/Customer Service
Guarantee/Customer Service GREAT BRITAIN & IRELAND Appliances found to be in use within a Standard guarantee conditions commercial environment, plus those which are subject to rental agreements. We, Electrolux, undertake that if within 12 months of the date of purchase this Electrolux Products of Electrolux manufacture that are appliance or any part thereof is proved to be not marketed by Electrolux. - Page 32 Customer Care For general enquiries concerning your Electrolux appliance, or for further information on Electrolux products please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.electrolux.co.uk Customer Care Department Electrolux Major Appliances Addington Way Luton Bedfordshire...
-
Page 33: European Guarantee
European Guarantee This appliance is guaranteed by Electrolux, in each of the countries listed at the back of this user manual, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed, the appliance guarantee will move with you subject to the following qualifications:... -
Page 34: Www.electrolux.com
www.electrolux.com Albania +35 5 4 261 450 Rr. Pjeter Bogdani Nr. 7 Tirane Belgique/België/Belgien +32 2 363 04 44 Bergensesteenweg 719, 1502 Lembeek Česká republika +420 2 61 12 61 12 Budějovická 3, Praha 4, 140 21 Danmark +45 70 11 74 00 Sjællandsgade 2, 7000 Fredericia Deutschland +49 180 32 26 622... - Page 35 Notes ................
- Page 36 www.electrolux.com www.zanussi-electrolux.co.uk 117984 99/0 - 02072007 Subject to change without notice...
