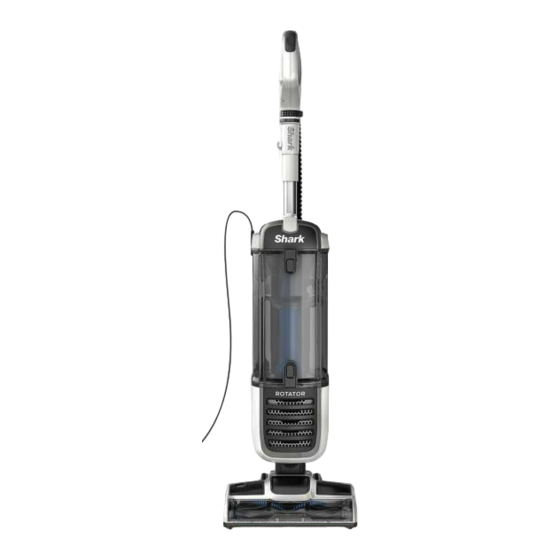

Shark Rotator Pet Plus NV255 Quick Start Manual

Please be sure to read the enclosed Shark® Owner's Guide prior to using your unit.
QUICK START GUIDE
WHAT'S INSIDE
A Vacuum Pod
B Handle & Hose
C Wand
ASSEMBLY
(Click)
C
A
(Click)
(Click)
(Click)
NOTE: For proper operation, ensure all parts
are firmly CLICKED into place.
NV255_QSG_MP_Mv7
D Hose Clip
E 5.5" Crevice Tool
F Pet Power Brush
E
B
F
D
PET PLUS
EMPTYING THE DUST CUP
Empty the dust cup after each use.
MAINTENANCE
Remove dust cup to access foam
Filter
Foam
Door
and felt filters. Next, press down
Felt
top of filter door. Tilt filter door
and lift out. Press tab at top of
HEPA filter and pull away from
the base of the vacuum.
To reinstall, insert HEPA filter into
HEPA
unit and replace the filter door.
Filter
Wash filters every 3 months to keep the suction strong.
Rinse filters with water only and allow to air-dry completely.
Tap loose dirt from foam filters as needed between washes.
Brushroll access
Unlock Open Cover
Use a coin to turn locks, then lift
cover open. Clear the debris intake.
clean
Clear Intake
