Summary of Contents for Shark MATRIX PLUS 2-in-1

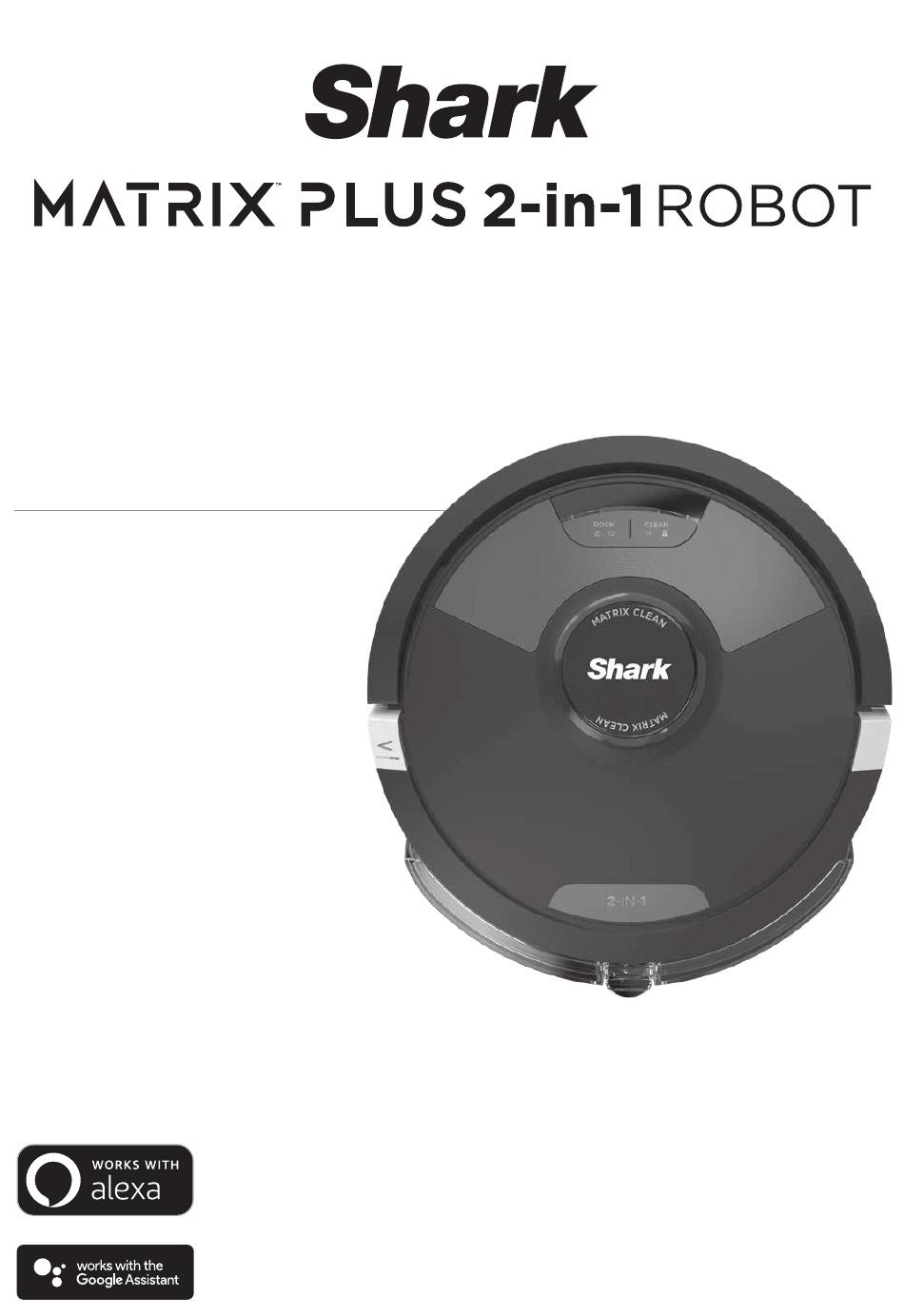

- Page 1 Robot Vacuum RV2600WA OWNER’S GUIDE...
-
Page 2: Important Safety Instructions
39. Use ONLY the Shark® charging dock including the following: 12. DO NOT handle plug, charging dock, XDRV2600WA, XDKRV2600WA & 23. Turn off the Robot Floor Cleaner before... - Page 3 GETTING TO KNOW YOUR SHARK MATRIX PLUS 2-IN-1 ROBOT GETTING TO KNOW YOUR SHARK MATRIX PLUS 2-IN-1 ROBOT ™ ™ ROBOT DUST BIN Charge Indicator Lights VAC & MOP 2-in-1 Dust Bin Wi-Fi Indicator Light Error Indicator Light Filter Front Bumper...
-
Page 4: Installing The Side Brush
SELF-EMPTY BASE ROBOT BATTERY INDICATOR LIGHTS In Use Full Partial Charge Charge Charge (White) (White) (Red) While Charging (White) No Charge 1 ft. or Off 1 ft. The white charge indicator lights show how much 2 ft. battery power is remaining. While the robot is charging, both white LED lights will flash. -
Page 5: Buttons And Indicator Lights
CHARGING BUTTONS AND INDICATOR LIGHTS IMPORTANT: The Shark Matrix™ Plus 2-In-1 Robot has a pre-installed rechargeable battery. Charge the battery completely before first use. It may take up to 6 hours to fully charge. CLEAN BUTTON Press to begin a cleaning session and press again to pause the cleaning session. - Page 6 PREP YOUR HOME USING THE SHARK MATRIX PLUS 2-IN-1 ROBOT ™ AI LASER NAVIGATION™ Your robot uses an array of sensors to navigate around walls, furniture legs, and other obstacles while it cleans. To prevent the robot from entering areas you don't want it to, set up no-go zones in the app. For best results, prepare your home as indicated below, and schedule a daily cleaning to ensure all floor areas are regularly maintained.
- Page 7 VAC & MOP 2-IN-1 CLEANING MODE VACUUM-ONLY CLEANING MODES Dining Room Dining Room Kitchen Kitchen Living Room Living Room Spot Clean Matrix Mop Single-Room Matrix Clean Whole-Home Cleaning Whole-Home Cleaning To clean a specific 5-foot-by-5-foot spot, place the Once the robot has a created map, you can select a To activate a whole-home clean when in vacuum-only To start a whole-home Vac &...
- Page 8 2-in-1 Dust Bin, detach the pad from the pad plate place. The CLEAN button on the robot will illuminate sealed. We recommend using only Shark VACMOP cleaning and slide the pad out of the slot. blue when the Vac & Mop 2-in-1 Dust Bin is inserted solution and water.
-
Page 9: Maintenance
MAINTENANCE MAINTENANCE EMPTYING THE SELF-EMPTY BASE DUST BIN To turn the robot power off, take it off the Self-Empty Base and press the DOCK button on the robot for 5-7 seconds. CAUTION: Turn off power before performing any maintenance. MAINTAINING THE VAC & MOP 2-IN-1 DUST BIN Depending on the size of the base, empty the base To empty the bin, hold it over the trash, then press dust bin every 30 to 60 days or as needed. - Page 10 MAINTENANCE MAINTENANCE CLEANING AND REPLACING THE ROBOT'S FILTERS CLEANING AND REPLACING THE SELF-EMPTY BASE FILTERS Regularly clean the filters to keep your vacuum's suction power optimal. Replace filters every 6-12 For optimal suction power, please clean and reinsert the Self-Empty Dust Bin filter after each use. months or as needed.
- Page 11 MAINTENANCE MAINTENANCE CLEANING THE SELF-CLEANING BRUSHROLL CLEANING THE VAC & MOP 2-IN-1 DUST BIN AND MOPPING PAD The Self-Cleaning Brushroll actively removes hair wrap while your robot cleans. If some debris remains wrapped around the brushroll, continue to run the robot to give the brushroll time to clean itself. If some hair wrap or debris remains after continued cleaning, carefully remove it from the brushroll.
- Page 12 “Link.” 3. Sign in to your SharkClean account. This is the same account you used when setting up your Shark® robot in the SharkClean app. To send your robot in to action, use the voice command, “Google, tell Shark®...
- Page 13 It is normal for your robot to temporarily lose connectivity when it goes under furniture or moves far from your router. Your Shark® robot will automatically reconnect to Wi-Fi. If the robot does not reconnect, power it off, wait 10 seconds, power the robot back on, and place it back on the base. Take the robot off the base and press REPLACEMENT PARTS: ROBOT and hold the DOCK button on the robot for 5-7 seconds to turn off power.
-
Page 14: Error Codes
ERROR CODES END-USER LICENSE AGREEMENT FOR SHARKNINJA SOFTWARE If any error lights are illuminated or flashing on your Shark Matrix™ Plus 2-In-1 Robot, see the IMPORTANT: PLEASE READ THE TERMS AND CONDITIONS OF THIS LICENSE AGREEMENT CAREFULLY BEFORE CONTINUING WITH THIS PROGRAM INSTALL OR USE OF THIS PRODUCT: SharkNinja Operating error code chart below: LLC’s (“SharkNinja”) End-User License Agreement (“EULA”) is a legal agreement between You (either... -
Page 15: One (1) Year Limited Warranty
END-USER LICENSE AGREEMENT FOR SHARKNINJA SOFTWARE 5.6 You will not use the Ayla Application Libraries or Ayla Embedded Software to attempt to gain unauthorized access to or use of the systems/services of SharkNinja’s other licensors; nor will You transmit ONE (1) YEAR LIMITED WARRANTY viruses, worms, Trojan horses, time bombs, spyware, malware, cancelbots, passive collection mechanisms, robots, data mining software, or any other malicious or invasive code or program into the systems/services of SharkNinja’s other licensors. - Page 16 Expected runtime: 60 minutes Expected charging time: 6 hours PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. This Owner's Guide is designed to help you keep your Shark Matrix™ Plus 2-In-1 Robot running at peak performance. SharkNinja Operating LLC US: Needham, MA 02494...
-
Page 17: Fcc Warnings
© 2024 SharkNinja Operating LLC. SHARK, SHARKCLEAN, and VACMOP are registered trademarks of SharkNinja Operating LLC. AI LASER NAVIGATION and SHARK MATRIX are trademarks of SharkNinja Operating LLC. RBRC is a trademark of Rechargeable Battery Recycling Corporation. APPLE, the Apple logo, and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
