GBA B 0041 4 E
Instructions for Use

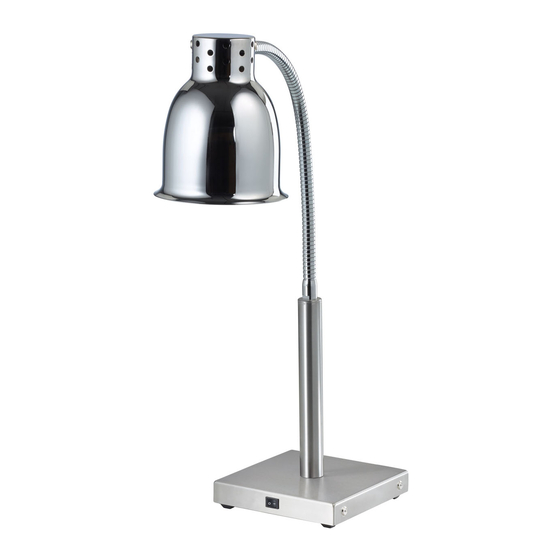

Buffet heat lamp
Model-No.
24000/B/C
24000/B/G
24000/B/W
24000/B/S
24002/B/C
24002/B/S
B 0041
Scholl Apparatebau GmbH & Co. KG
Zinhainer Weg 4
D–56470 Bad Marienberg/Germany
Phone
+0049 (0) 2661 – 9868-10
Fax
+0049 (0) 2661 – 9868-38 (Service)
Internet
www.scholl-gastro.de
E-mail
info@scholl-gastro.de
BA
Last revised 03-2019
Art.-No.
B 0041
B 0042
B 0049
B 0050
B 0043
B 0053
B 0043
Page 1 of 33
Model-No.
24000/S/C
24000/S/G
24000/S/S
24000/TS/C
24000/TS/G
24000/TS/S
B 0052
Art.-No.
B 0051
B 0052
B 0054
B 0061
B 0062
B 0056
B0061
März 21, 2019
Rev. 4
Advertisement
Table of Contents
Related Manuals for Scholl 24000/B/C
Summary of Contents for Scholl 24000/B/C
- Page 1 24002/B/S B 0053 24000/TS/S B 0056 B 0041 B 0043 B 0052 B0061 Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D–56470 Bad Marienberg/Germany Phone +0049 (0) 2661 – 9868-10 +0049 (0) 2661 – 9868-38 (Service) Internet www.scholl-gastro.de E-mail info@scholl-gastro.de...
-
Page 2: Table Of Contents
GBA B 0041 4 E ABLE OF CONTENTS Table of contents ............................... 2 Preface ................................4 Conventions ............................... 5 Pictograms – General safety notes ....................5 Pictograms – Warning notes ......................7 Pictograms – Important notes ......................8 Product information ..........................9 Information regarding compliance with standards, laws and directives ......... - Page 3 GBA B 0041 4 E Execution ............................17 8.1.1 Execution buffet heat lamp ....................... 17 8.1.2 Execution buffet heat lamp BiTherm ..................17 8.1.3 Execution buffet heat lamp with srew fitting for built-in ............18 8.1.4 Execution buffet heat lamp with table board fixing for mobile ..........18 Dimensioned drawing ........................
-
Page 4: Preface
REFACE Congratulations! In purchasing this new SCHOLL appliance you have chosen a product which meets highest technical stand- ards while providing outstanding convenience in practical use. This appliance has been designed with minimal energy consumption in mind. Used responsibly, it will serve you well in an ecologically sound manner. -
Page 5: Conventions
GBA B 0041 4 E ONVENTIONS – G ICTOGRAMS ENERAL SAFETY NOTES Be sure to observe these Instructions for Use as well as the safety notes to prevent injuries or damage to health or property. Do not alter or modify this appliance. Never use a defective appliance. - Page 6 GBA B 0041 4 E Do not allow this appliance to operate unattended. Ensure that its power switch is set to „0“ before inserting the plug into an electrical socket-outlet or connecting the appliance to the power supply. Avoid starting the unit unintentionally. Connecting the unit to the mains with its power switch set to ON may cause accidents.
-
Page 7: Pictograms - Warning Notes
GBA B 0041 4 E – W ICTOGRAMS ARNING NOTES Before any cleaning, maintenance or repair work is carried out, the appliance must be disconnected from the mains and de-energized. To do so, it is not enough to set the power switch to OFF. Instead, the mains plug must be pulled or the electrical circuit must be de-energized, respectively. -
Page 8: Pictograms - Important Notes
GBA B 0041 4 E – I ICTOGRAMS MPORTANT NOTES DANGER indicates an immediately threatening hazard. Failure to observe this warning notice will result in severe physical injury or death. WARNING indicates a potentially dangerous situation. Failure to observe this warning notice may result in severe physical injury or death. -
Page 9: Product Information
GBA B 0041 4 E RODUCT INFORMATION The buffet-heat-lamp may only be used to keep dishes short-term warm. NFORMATION REGARDING COMPLIANCE WITH STANDARDS LAWS AND DIRECTIVES This appliance conforms to the following: Standards, laws, directives 2014/35/EU Low Voltage Directive 2014/30/EU EMC Directive AFETY This appliance conforms to accepted technical rules and relevant safety codes. -
Page 10: Packing, Transport, Intermediate Storage, Scope Of Delivery
GBA B 0041 4 E ACKING TRANSPORT INTERMEDIATE STORAGE SCOPE OF DELIVERY ACKING The type of packing employed will depend, to a large extent, on the adopted shipping mode and route. Except where otherwise agreed by contract, packing will conform to the "HPE Packing Guideline" defined by the German Federal Association of the Wooden Materials, Pallets and Export Packing Industry and by the German Engineering Federation. -
Page 11: Installation And Electrical Installation
GBA B 0041 4 E NSTALLATION AND ELECTRICAL INSTALLATION NSTALLATION Before the installation of the appliance, observe the following: Inspect the unit for any defect or damage sustained in transit. Check all screw connections for tightness. Familiarize yourself with the Instructions for Use and with the conditions for the safe operation of this appliance. -
Page 12: Operation
GBA B 0041 4 E PERATION The buffet heat lamp has one switch and the buffet heat lamp BiTherm has two switches placed in the stand. The buffet heat lamp must be switched on/off by the switch. NTENDED USE Practice: ... -
Page 13: Maintenance
GBA B 0041 4 E AINTENANCE AINTENANCE AND REPAIR Maintenance and repairs on the appliance must only be carried out by an author- ized professional observing applicable safety regulations. Improperly executed work will put your safety at risk! Before any cleaning, maintenance or repair work is carried out, the appliance must be disconnected from the mains and de-energized. - Page 14 GBA B 0041 4 E Cleaning must only be performed by qualified persons who have read and under- stood these Instructions for Use and are familiar with applicable hygiene rules. En- sure that care is exercised during cleaning of the unit. Cleaning of stainless steel For light cleaning, wipe down the surface with a cloth or soft brush/sponge soaked in warm water which contains a small amount of dishwashing detergent.
-
Page 15: Troubleshooting
GBA B 0041 4 E ROUBLESHOOTING Repairs must be carried out by an authorized specialist in compliance with applica- ble safety codes and regulations. Improperly executed work will put your safety at risk! Note that some work must only be carried out by an electrical specialist. According to DIN EN 60204-1: 2011-01, specialists are „persons who by reason of their relevant training and experience are capable of recognizing risks and avoiding potential hazards."... -
Page 16: Possible Malfunctions
GBA B 0041 4 E OSSIBLE MALFUNCTIONS Malfunction Cause Remedy Buffet heat lamp does not heat Defective plug/electrical cord DANGER! Hazardous electrical voltage. Pull out the mains plug and bar product from further use. To be remedied by an electrical specialist. -
Page 17: Technical Data
2,0 m with SCHUKO plug, incl. 250 W infrared radiator white light Height: approx. 700 mm Model-No. Art.-No. Colour Voltage Power 24000/B/C B 0041 chromium 230 V 250 W plated 24000/B/G B 0042 gold 230 V... -
Page 18: Execution Buffet Heat Lamp With Srew Fitting For Built-In
GBA B 0041 4 E 8.1.3 E XECUTION BUFFET HEAT LAMP WITH SREW FITTING FOR BUILT Buffet heat lamp with lamp shade, flexible arm, connection line approx. 2,0 m, screw fitting for built-in, incl. 250 W infrared radiator white light Height: approx. -
Page 19: Dimensioned Drawing
Dimensioned drawings are available upon request. The information in the dimensioned drawings always take precedence over the summary of the technical data in chapter 8.1. 8.2.1 D IMENSIONED DRAWING BUFFET HEAT LAMP Model-No. Art.-No. 24000/B/C B 0041 24000/B/G B 0042 24000/B/W B 0049 24000/B/S... -
Page 20: Dimensioned Drawing Buffet Heat Lamp Bitherm
GBA B 0041 4 E 8.2.2 D IMENSIONED DRAWING BUFFET HEAT LAMP HERM Model-No. Art.-No. 24002/B/C B 0043 24002/B/S B 0053 Page 20 of 33 März 21, 2019 Last revised 03-2019 Rev. 4... -
Page 21: Dimensioned Drawing Buffet Heat Lamp With Srew Fitting For Built-In
GBA B 0041 4 E 8.2.3 D IMENSIONED DRAWING BUFFET HEAT LAMP WITH SREW FITTING FOR BUILT Model-No. Art.-No. 24000/S/C B 0051 24000/S/G B 0052 24000/S/S B 0054 Page 21 of 33 März 21, 2019 Last revised 03-2019 Rev. 4... -
Page 22: Dimensioned Drawing Buffet Heat Lamp With Table Board Fixing For Mobile
GBA B 0041 4 E 8.2.4 D IMENSIONED DRAWING BUFFET HEAT LAMP WITH TABLE BOARD FIXING FOR MOBILE Model-No. Art.-No. 24000/TS/C B 0061 24000/TS/G B 0062 24000/TS/S B 0056 Page 22 of 33 März 21, 2019 Last revised 03-2019 Rev. 4... -
Page 23: Circuit Diagrams
GBA B 0041 4 E IRCUIT DIAGRAMS Circuit diagrams are available upon request. 8.3.1 C IRCUIT DIAGRAM BUFFET HEAT LAMP Model-No. Art.-No. 24000/B/C B 0041 24000/B/G B 0042 24000/B/W B 0049 24000/B/S B 0050 Key: Switch Infrared radiator white light Page 23 of 33 März 21, 2019... -
Page 24: Circuit Diagram Buffet Heat Lamp Bitherm
GBA B 0041 4 E 8.3.2 C IRCUIT DIAGRAM BUFFET HEAT LAMP HERM Model-No. Art.-No. 24002/B/C B 0043 24002/B/S B 0053 Key: S1-S2 Switch R1-R2 Infrared radiator white light Page 24 of 33 März 21, 2019 Last revised 03-2019 Rev. 4... -
Page 25: Circuit Diagram Buffet Heat Lamp With Srew Fitting For Built-In
GBA B 0041 4 E 8.3.3 C IRCUIT DIAGRAM BUFFET HEAT LAMP WITH SREW FITTING FOR BUILT Model-No. Art.-No. 24000/S/C B 0051 24000/S/G B 0052 24000/S/S B 0054 Key: Infrared radiator white light Page 25 of 33 März 21, 2019 Last revised 03-2019 Rev. -
Page 26: Circuit Diagram Buffet Heat Lamp With Table Board Fixing For Mobile
GBA B 0041 4 E 8.3.4 C IRCUIT DIAGRAM BUFFET HEAT LAMP WITH TABLE BOARD FIXING FOR MOBILE Model-No. Art.-No. 24000/TS/C B 0061 24000/TS/G B 0062 24000/TS/S B 0056 Key: Infrared radiator white light Page 26 of 33 März 21, 2019 Last revised 03-2019 Rev. -
Page 27: Spare Parts List
B 0041 24000/B/G B 0042 24000/B/W B 0049 24000/B/S B 0050 Art.-No. Components Model TB-013106 tube for 24000/B/C B 0041 82,20,52 flexible lamp arm chromium-plated M12 B 0041 82,20,27 lamp shade copper chromium-plated B 0041 TB-013143 tube for 24000/B/G B 0042... -
Page 28: Spare Parts List Buffet Heat Lamp Bitherm
GBA B 0041 4 E 8.4.2 S PARE PARTS LIST BUFFET HEAT LAMP HERM Model-No. Art.-No. 24002/B/C B 0043 24002/B/S B 0053 Art.-No. Components Model TB-013294 tube for 24002/B/C B 0043 82,20,52 flexible lamp arm chromium-plated M12 B 0043 82,20,27 lamp shade copper chromium-plated B 0043 TB-037847... -
Page 29: Spare Parts List Buffet Heat Lamp With Srew Fitting For Built-In
Art.-No. 24000/S/C B 0051 24000/S/G B 0052 24000/S/S B 0054 Art.-No. Components Model TB-013106 tube for 24000/B/C B 0051 82,20,27 lamp shade copper chromium-plated B 0051 82,20,52 flexible lamp arm chromium-plated M12 B 0051 TB-013143 tube for 24000/B/G B 0052... -
Page 30: Spare Parts List Buffet Heat Lamp With Table Board Fixing For Mobile
GBA B 0041 4 E 8.4.4 S PARE PARTS LIST BUFFET HEAT LAMP WITH TABLE BOARD FIXING FOR MOBILE Model-No. Art.-No. 24000/TS/C B 0061 24000/TS/G B 0062 24000/TS/S B 0056 Art.-No. Components Model TB-013258 tube for 24000/TS/C B 0061 82,20,27 lamp shade copper chromium-plated B 0061 82,20,52... -
Page 31: Disposal And Environmental Notes
GBA B 0041 4 E ISPOSAL AND NVIRONMENTAL OTES The appliance has been packed before shipping to protect it against damage in transit. After unpacking, please dispose of packing materials in an environmentally sound manner. All packing materials are eco-compatible, 100% recyclable and marked with a sym- bol to that effect. -
Page 32: Warranty And Service
GBA B 0041 4 E ARRANTY AND SERVICE 10.1 W ARRANTY CONDITIONS The manufacturer accepts no liability or warranty in the following cases: failure to observe notes and instructions given in the Instructions for Use; use of the product in a manner not conforming to its intended use; ... -
Page 33: Service Address
7:00 a.m. till 4:00 p.m. Fridays from 7:00 a.m. till 12:15 p.m. Outside these office hours please communicate your requests per e-mail or telefax. Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D-56470 Bad Marienberg/Germany Phone 0049 (0)2661/9868-10...
