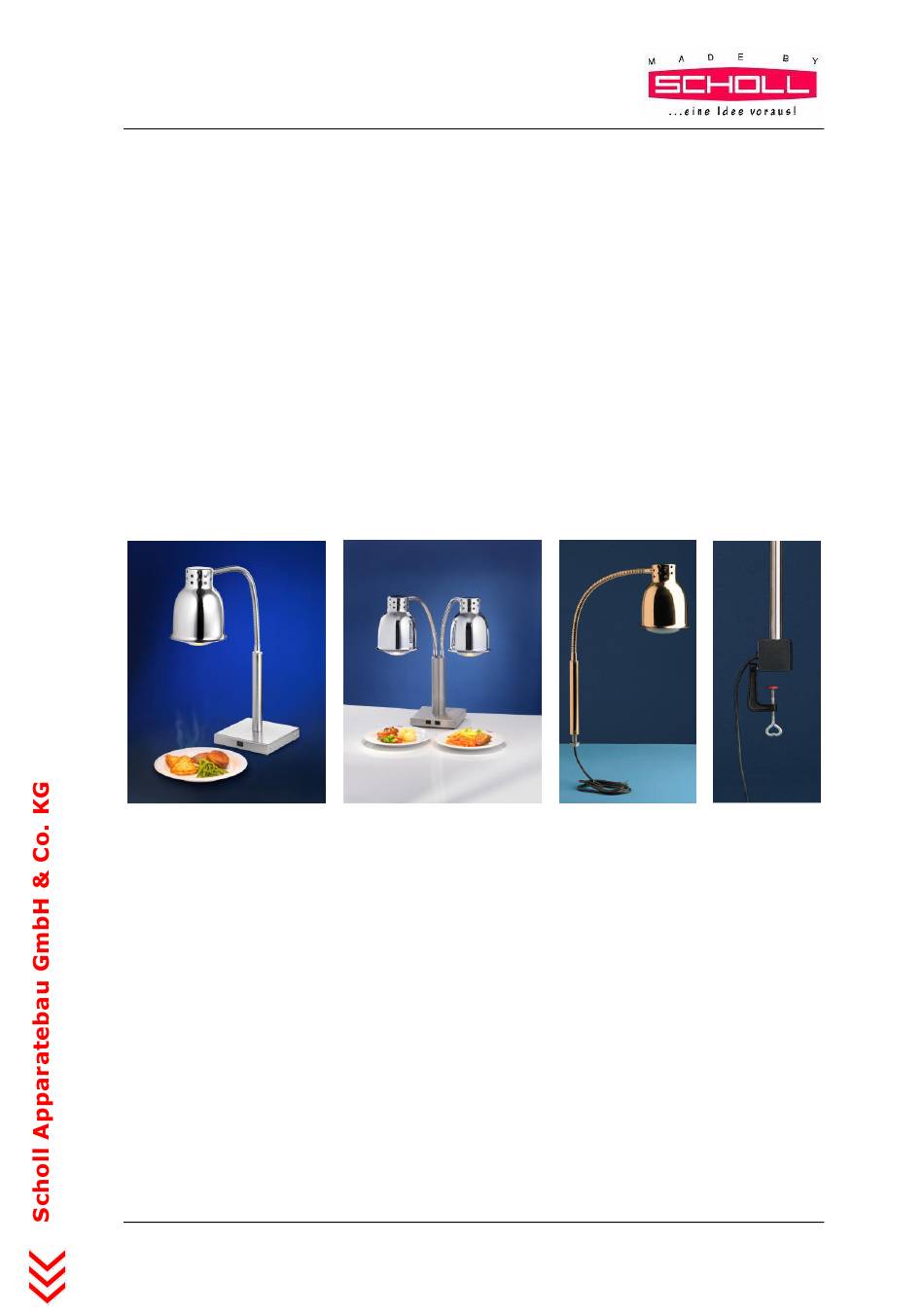

GBA B 0041 1 E
Instructions for Use
Buffet-heat-lamp
Art. No. B 0041, B 0042, B 0047, B 0048
Art. No. B 0043, B 0044
Art. No. B 0051, B 0052, B 0061, B 0062
Scholl Apparatebau GmbH & Co. KG
Zinhainer Weg 4
D–56470 Bad Marienberg / Germany
Phone
+0049 (0) 2661 – 9868-10
Fax
+0049 (0) 2661 – 9868-38 (Service)
Internet
www.scholl-gastro.de
E-mail
info@scholl-gastro.de
BA
Last revised 06-2014
Page 1 of 27
Juni 11, 2014
Rev. 1
Advertisement
Table of Contents
Related Manuals for Scholl B 0042
Summary of Contents for Scholl B 0042
- Page 1 GBA B 0041 1 E Instructions for Use Buffet-heat-lamp Art. No. B 0041, B 0042, B 0047, B 0048 Art. No. B 0043, B 0044 Art. No. B 0051, B 0052, B 0061, B 0062 Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D–56470 Bad Marienberg / Germany...
-
Page 2: Table Of Contents
GBA B 0041 1 E ABLE OF CONTENTS Table of contents ............................... 2 Preface ................................4 Conventions ............................... 5 Pictograms – General safety notes ........................ 5 Pictograms – Warning notes ......................... 7 Pictograms – Important notes ........................8 Product information ............................10 Information regarding compliance with standards, laws and directives ............ - Page 3 GBA B 0041 1 E Disposal and environment ..........................25 Environmental notes ............................25 Disposal of packing material ........................25 Disposal of the appliance ..........................25 Warranty and service ............................26 Warranty conditions ............................ 26 Service address ............................27 Page 3 of 27 Juni 11, 2014 Last revised 06-2014 Rev.
-
Page 4: Preface
REFACE Congratulations! In purchasing this new SCHOLL appliance you have chosen a product which meets highest technical stand- ards while providing outstanding convenience in practical use. This appliance has been designed with minimal energy consumption in mind. Used responsibly, it will serve you well in an ecologically sound manner. -
Page 5: Conventions
GBA B 0041 1 E ONVENTIONS – G ICTOGRAMS ENERAL SAFETY NOTES Be sure to observe these Instructions for Use as well as the safety notes to prevent injuries or damage to health or property. Do not alter or modify this appliance. Never use a defective appliance. - Page 6 GBA B 0041 1 E Do not run the power cord near heat sources, over sharp edges, etc. Always pull on the plug, not the cord, to remove it from a socket-outlet since the cord might be dam- aged as a result. Do not allow cords to hang unsupported. Route the cord so that it will not form a tripping hazard! When using an extension cord, unwind the cord from the reel to prevent heat build-up or cord fires, respectively.
-
Page 7: Pictograms - Warning Notes
GBA B 0041 1 E – W ICTOGRAMS ARNING NOTES Cleaning must only be performed by qualified persons who have read and under- stood these Instructions for Use and are familiar with applicable hygiene rules. En- sure that care is exercised during cleaning of the unit. For light cleaning, wipe down the surface with a cloth or soft brush/sponge soaked in warm water which contains a small amount of dishwashing detergent. -
Page 8: Pictograms - Important Notes
GBA B 0041 1 E Allow the unit to cool down before starting any cleaning work. Burn hazard – I ICTOGRAMS MPORTANT NOTES DANGER indicates an immediately threatening hazard. Failure to observe this warning notice will result in severe physical injury or death. - Page 9 GBA B 0041 1 E IMPORTANT Improper use may result in minor injuries or damage to property. In addition to these Instructions for Use, a number of accident prevention and other regulations apply with regard to the operation of this appliance. As re- gards food handling, please observe HACCP rules concerning compliance with hygiene requirements.
-
Page 10: Product Information
GBA B 0041 1 E RODUCT INFORMATION The buffet-heat-lamp may only be used to keep dishes short-term warm. NFORMATION REGARDING COMPLIANCE WITH STANDARDS LAWS AND DIRECTIVES This appliance conforms to the following: EC Directive: 2014/30/EG EMC Directive 2014/35/EG Low Voltage Directive Harmonized standards: DIN EN 60335-1: 2012-10 Household and similar electrical appliances –... -
Page 11: Unpacking And Start-Up
GBA B 0041 1 E NPACKING AND START ACKING The type of packing employed will depend, to a large extent, on the adopted shipping mode and route. Except where otherwise agreed by contract, packing will conform to the "HPE Packing Guideline" defined by the German Federal Association of the Wooden Materials, Pallets and Export Packing Industry and by the German Engineering Federation. -
Page 12: Assembly Instructions
GBA B 0041 1 E SSEMBLY INSTRUCTIONS Legal requirements and the connection conditions of your local power supply company must be fully observed. Before connecting or repairing the appliance, see to it that it is fully de-energized. Pull the CEE 7/4 two-pole and earthing-pin plug from the mains socket-outlet or switch off the circuit breaker. -
Page 13: Operation
GBA B 0041 1 E PERATION The buffet-heat-lamp has one main switch and the buffet-heat-lamp BiTherm has two main switches placed in the stand. The buffet-heat-lamp must be switched on/off by the main switch. Indications: Do not touch the infrared radiator! Burn injury! Never cover the appliance while operating. -
Page 14: Maintenance
GBA B 0041 1 E AINTENANCE AINTENANCE AND REPAIR Maintenance and repairs on the appliance must only be carried out by an authorized professional observing applicable safety regulations. Improperly executed work will put your safety at risk. LEANING AND CARE ... -
Page 15: Troubleshooting
GBA B 0041 1 E ROUBLESHOOTING Repairs must be carried out by an authorized specialist in compliance with applicable safety codes and regulations. Improperly executed work will put your safety at risk! Note that some work must only be carried out by an electrical specialist. According to DIN EN 60204-1: 2011-01, specialists are „persons who by reason of their relevant training and experience are capable of recognizing risks and avoiding potential hazards."... -
Page 16: Technical Data
500W Art. No. B 0043, B 0044 Equipment Art. No. B 0041, B 0042, B 0043, B 0044, B 0047, B 0048: Heat-lamp with lamp shade, flexible arm, stand, main switch, connection line ca. 2,0m with two-pin earthed plug, incl. 250W infrared radiator white light Art. -
Page 17: Dimensioned Drawing
GBA B 0041 1 E IMENSIONED RAWING Dimensioned drawing Art. No. B 0041, B 0042, B 0047, B 0048 Dimensioned drawing Art. No. B 0043, B 0044 Page 17 of 27 Juni 11, 2014 Last revised 06-2014 Rev. 1... - Page 18 GBA B 0041 1 E Dimensioned drawing Art. No. B 0051, B 0052 Dimensioned drawing Art. No. B 0061, B 0062 Page 18 of 27 Juni 11, 2014 Last revised 06-2014 Rev. 1...
-
Page 19: Circuit Diagram
Q1, Q2 - Switch R1 – infrared radiator white light R1, R2 - infrared radiator white light Circuit diagram Art. No. B 0041, B 0042, B 0047, B 0048 Circuit diagram Art. No. B 0043, B 0044 R1 – infrared radiator white light Circuit diagram Art. -
Page 20: Spare Parts List
73,40,19 cable relief plastic 73,20,05 E27 porcelain socket 3-part SHT 73,15,03 switch 1801.1102/27001 71,40,06 infrared lamp 250W, 230V white light Spare parts list Art. No. B 0042 component label TB-013143 tube for 24000/B/G TB-012433 lamp holder 85,09,20 serrated locknut DIN 6923 M10x1... - Page 21 GBA B 0041 1 E Spare parts list Art. No. B 0047 component label TB-018876 tube for 24000/B/W TB-012433 lamp holder 85,09,20 serrated locknut DIN 6923 M10x1 82,20,52 flexible lamp arm chromium-plated M12 82,20,27 lamp shade copper chromium-plated 1-part 74,70,52 unit base 20x20 mm 73,90,22 wiring harness 24000 B...
- Page 22 GBA B 0041 1 E Spare parts list Art. No. B 0043 component label TB-013294 tube for 24002/B/C TB-012433 lamp holder 85,09,20 serrated locknut DIN 6923 M10x1 82,20,52 flexible lamp arm chromium-plated M12 82,20,27 lamp shade copper chromium-plated 1-part 74,70,52 unit base 20x20 mm 73,90,22 wiring harness 24000 B...
- Page 23 GBA B 0041 1 E Spare parts list Art. No. B 0051 component label TB-013106 tube for 24000/B/C TB-012433 lamp holder 85,09,20 serrated locknut DIN 6923 M10x1 82,20,52 flexible lamp arm chromium-plated M12 82,20,27 lamp shade copper chromium-plated 1-part 73,80,65 fiberglass insulating tubing 6mm 400°C 73,80,02 silicone cable 3x0,75...
- Page 24 GBA B 0041 1 E Spare parts list Art. No. B 0061 component label TB-013258 tube for 24000/TS/C TB-012433 lamp holder 85,09,20 serrated locknut DIN 6923 M10x1 82,20,52 flexible lamp arm chromium-plated M12 82,20,27 lamp shade copper chromium-plated 1-part 73,90,22 wiring harness 24000 B 73,80,65 fiberglass insulating tubing 6mm 400°C...
-
Page 25: Disposal And Environment
GBA B 0041 1 E ISPOSAL AND ENVIRONMENT The appliance has been packed before shipping to protect it against damage in transit. After unpacking, please dispose of packing materials in an environmentally sound manner. All packing materials are eco-compatible, 100% recyclable and marked with a symbol to that effect. -
Page 26: Warranty And Service
GBA B 0041 1 E ARRANTY AND SERVICE ARRANTY CONDITIONS The manufacturer accepts no liability or warranty in the following cases: failure to observe notes and instructions given in the Instructions for Use; use of the product in a manner not conforming to its intended use; refer to „Intended Use“, in chapters Product information and Operation ... -
Page 27: Service Address
7:00 a.m. till 4:00 p.m. Fridays from 7:00 a.m. till 12:15 p.m. Outside these office hours please communicate your requests per e-mail or telefax. Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D-56470 Bad Marienberg / Germany Phone...
