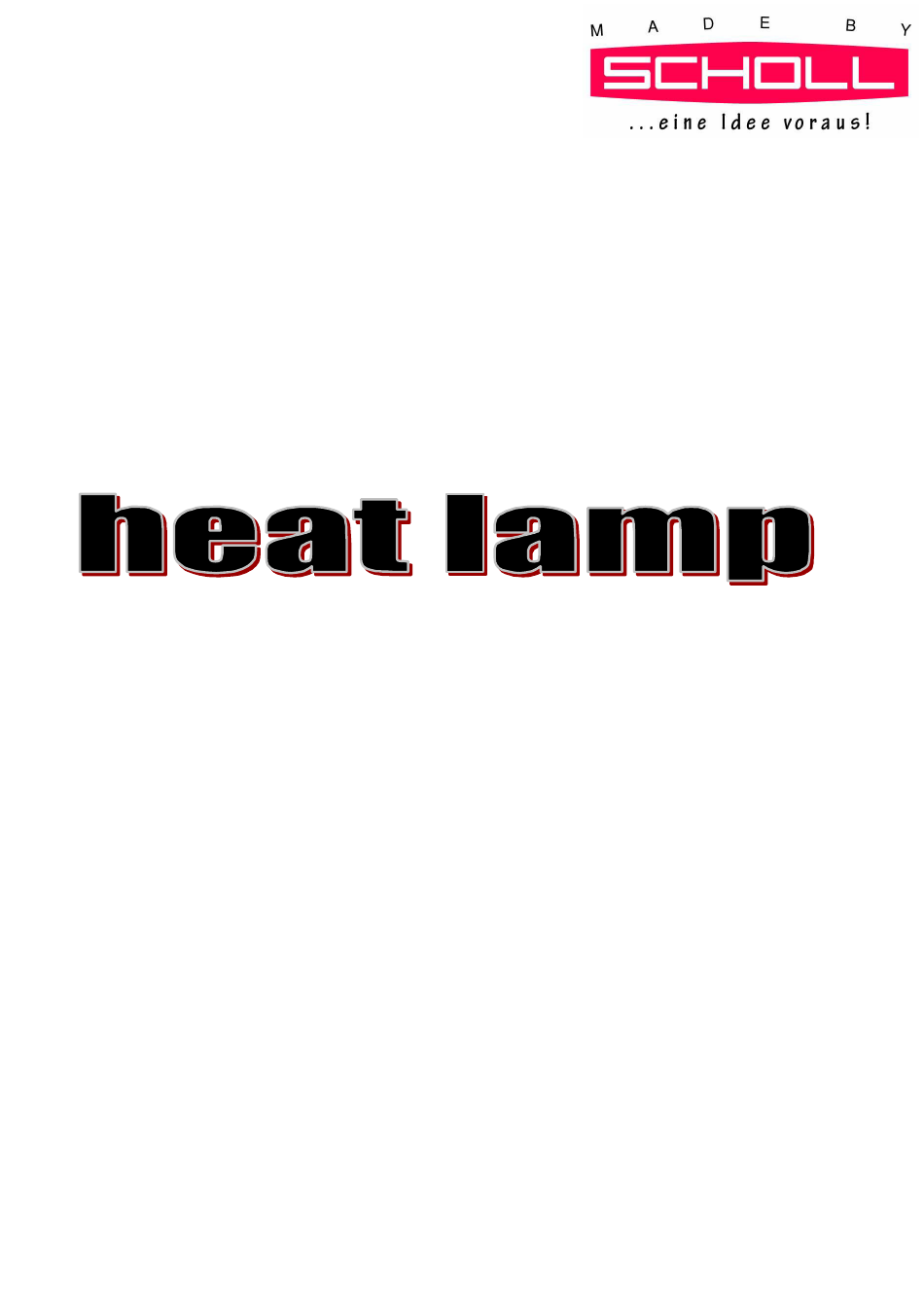

  • Page 1 27001-27008 Operating Manual State January 2005 Rev. 0. 2005...

  • Page 2: Table Of Contents

    HEAT LAMP 27001-27008 Contents Environnemental information General information Safety Technical details Transport Commissioning Operation Cleaning Stock keeping of replacement parts and service Wiring diagram 14 - 18 Appendix STATE AUGUST 2004...

  • Page 3: Environnemental Information Uw

    HEAT LAMP 27001-27008 Congratulations We recommend reading these operation Please keep these operation and assembly instructions carefully in order to familiarize instructions available for possible further yourself with your new device. owners. If properly used, a good device will serve you We wish you a lot of fun using your new many years.

  • Page 4: General Information Al

    HEAT LAMP 27001-27008 4. Before connecting the device, please check if switching off the main switch or quitting the voltage of the power supply. indications on the rating plate correspond to the installation rating. 6. Don’t leave the device unnecessarily in Basic safety instructions must be observed in any case.

  • Page 5: Safety Si

    HEAT LAMP 27001-27008 Safety -SI- SYMBOLS Attention Operating safety ATTENTION This note will be found everywhere in the operating manual where special This symbol will be found in all guidelines, regulations, operating safety advices in advices and the correct this operating manual where...
  • Page 6 HEAT LAMP 27001-27008 The proper use includes observing the operating manual and conditions of inspection and maintenance. After cleaning of device check loosened connections, raw rubbed parts and damages. All detected faults have to be repaired immediately! Always tighten firmly screwed connections loosened for maintenance and repair purposes!
  • Page 7 HEAT LAMP 27001-27008 Electrical connection Before connecting please observe indications on rating plate! Observe VDE-regulations and regulations of your local power supplier! Connected load 0,25 kW - 2,0 kW Fuse protection 1 x 10 A Voltage IN AC 230 V Special voltage upon demand Device is delivered with a helix cable of 850 mm length.
  • Page 8 HEAT LAMP 27001-27008 Information about high temperature A T T E N T I O N ! ! ! Before putting into operation During the switching on of the device (before use) high temperatures can be reached around the heating. Please check the surface before you start working there! Don’t put paper, cardboard, cloth, etc.

  • Page 9: Technical Details Te

    Also available with 250W-infrared radiator, white light. E-Connection: 230V-250W Heating lamp - rail design Design: As heat lamp 27001, but with several lamps adjacent to each other, to be switched separately. Instead of one single rosette one continuous rail made of chrome nickel steel 18/10.

  • Page 10: Transport Tr

    HEAT LAMP 27001-27008 Transport -TR- Packaging Transport route is important for selection of kind of packing. If not agreed upon otherwise by contract, packing corresponds to regulations of packing HPE, defined by the Federal Association for Wood Materials, Pallets, Export Packing e. V. and by the Association of German Machinery Manufacturers.

  • Page 11: Commissioning In

    HEAT LAMP 27001-27008 Commissioning -IN- Before commissioning Before putting into operation of the device following items have to be checked: Shipping damages? Indications on the rating plate have to match with the local public supply system. All electrical protective measures have been carried out and serviceability has been checked.

  • Page 12: Operation Be

    HEAT LAMP 27001-27008 Operation -BE- How to act in case of disturbance In addition to the following advices al local safety regulations have to be observed for the operation of the device. All electrical repairs have to be done by authorized specialists!

  • Page 13: Cleaning Re

    HEAT LAMP 27001-27008 Cleaning -RE- Always make sure that device is plugged off before cleaning the heat lamp. Don’t hose down the device. Only wipe device with a wet tissue using a mild cleaner if necessary. Don’t use cleaning powder.

  • Page 14: Stock Keeping Of Replacement Parts And Service Ek

    HEAT LAMP 27001-27008 Stock keeping of replacement parts / after-sales service -RP- Please fill in here data of the rating plate of your device. You will find the rating plate next to the cable outlet. Gustav Scholl Apparatebau GmbH & Co.

  • Page 15: Wiring Diagram Sb

    HEAT LAMP 27001-27008 STATE AUGUST 2004...
  • Page 16 HEAT LAMP 27001-27008 STATE AUGUST 2004...
  • Page 17 HEAT LAMP 27001-27008 STATE AUGUST 2004...
  • Page 18 HEAT LAMP 27001-27008 STATE AUGUST 2004...
  • Page 19 HEAT LAMP 27001-27008 STATE AUGUST 2004...
  • Page 20 HEAT LAMP 27001-27008 Appendix -AN- G.SCHOLL Apparatebau GmbH & Co. KG Zinhainer Weg 4 56470 Bad Marienberg / Ww. Replacement parts sales Telephone +2661/9868-34/-35 Telefax +2661/9868-38 E-mail: service@scholl-gastro.de Technical services Telephone +2661/9868-44 Telefax +2661/9868-48 E-mail: technik@scholl-gastro.de Contact: Mr. Jens Schell...
