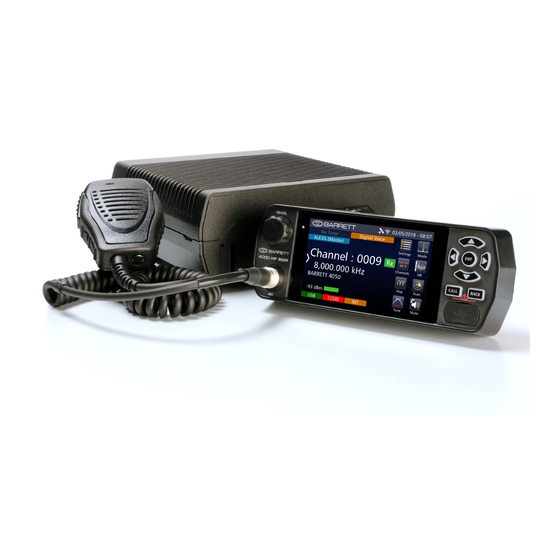

4050 DV/SDV Module Installation Guide
This guide outlines the installation and removal of a DV/SDV module from a Barrett 4050 transceiver. This should be
undertaken by a technical professional and proper care must be taken to ensure correct installation.

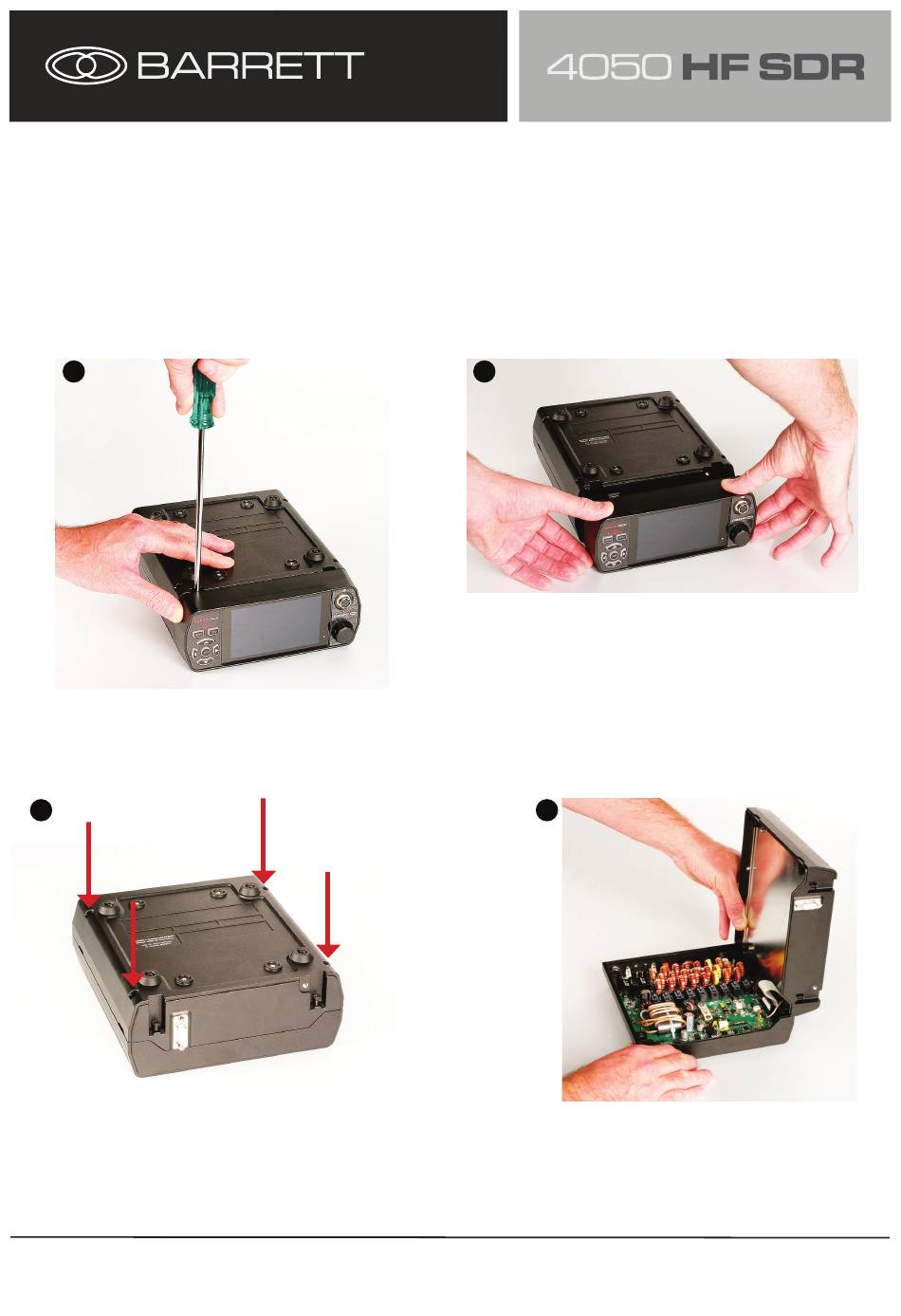

Removing the Head

1.
Invert the transceiver and use an appropriate tool to loosen (but not remove), the two front panel securing screws
located immediately behind the front panel.
2.
Gently pull the front panel from the transceiver to remove it.
1

Opening the Transceiver Body

1.
Remove the four cap head set screws securing the transceiver chassis halves together using an appropriately sized
allen key.
2.
Carefully open the transceiver chassis halves as shown.
1
BCM40531
2
2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4050 HF SDR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barrett 4050 HF SDR

Summary of Contents for Barrett 4050 HF SDR

  • Page 1 4050 DV/SDV Module Installation Guide This guide outlines the installation and removal of a DV/SDV module from a Barrett 4050 transceiver. This should be undertaken by a technical professional and proper care must be taken to ensure correct installation. Removing the Head Invert the transceiver and use an appropriate tool to loosen (but not remove), the two front panel securing screws located immediately behind the front panel.
  • Page 2 Gently separate the ribbon cable and coaxial cable from the PA board. Remove the seven screws securing the shield to the microboard half of the transceiver body. Using a screw dirver, gently prise the shield from the casing. BCM40531...
  • Page 3 Installing the DV/SDV Module Assemble all required components as shown in the image opposite. The red circle indicates the installation area. Ensure that the connectors on the module are orientated to match those on the board. BCM40531...
  • Page 4 Carefully place module onto board and press down firmly at both ends until connectors click into place. Secure module with heat plate provided. Removing the DV/SDV Module Using the tool provided, attach around short edges of the module. Lift away the module vertically. DO NOT FLEX THE BOARD OR MOVE IT LATERALLY WHILST REMOVING! THIS MAY CAUSE DAMAGE TO THE CONNECTORS! BCM40531...
