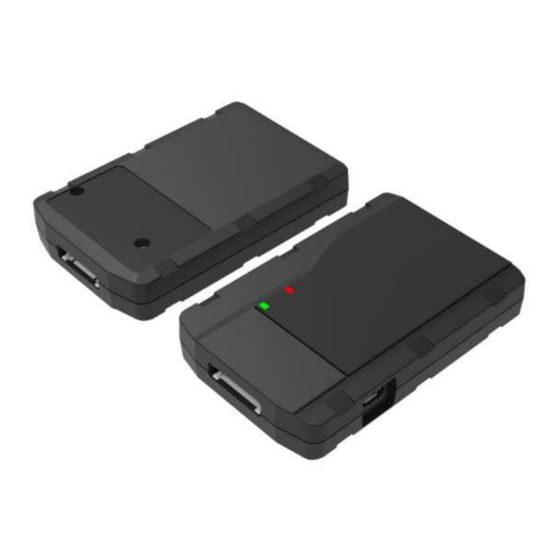

  • Page 1 JKS3 GPS Tracking Device...

  • Page 2: Table Of Contents

    Table of Contents 1. GETTING STARTED ....................7 1.1 U ..................7 NPACKING NFORMATION 1.2 I ...................... 7 NTRODUCTION 2. PORTS AND LED INDICATORS................8 2.1 P ......................... 8 ORTS 2.2 LED I ....................9 NDICATORS 3. INSTALLATION ....................10 4.
  • Page 3 Address: 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C Radio Equipment: Model: JKS3 Description: GPS Tracking Device Marketing Name: JKS3 Radio-related Software Version: Supplied Accessories and Components: NA We, Wistron NeWeb Corporation, declare under our sole responsibility that the...
  • Page 4 Safety Instruction Only authorized service providers shall replace the battery in this device.  Do not disassemble, open, crush, bend, deform, puncture, or shred.  Do not modify or remanufacture, attempt to insert foreign objects into the  battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazards.
  • Page 5 Regulatory Statement...
  • Page 6 FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 7 Industry Canada statement  This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: this device may not cause interference, and this device must accept any interference, including interference that may cause undesired operation of the device. ...

  • Page 8: Getting Started

     Cable x1 1.2 Introduction The JKS3 is a self-contained tracking device that combines GPS location with LTE Cat. M1 network connectivity. The device responds to user or server requests. Data reports contain all location data and the system status.

  • Page 9: Ports And Led Indicators

    2. Ports and LED Indicators 2.1 Ports Port Description 8 Wire Port Vin, GND, Open drain output, GPIO6, GPI, GPIO4, GPIO5, GND Micro-USB For manufacture and debugging...

  • Page 10: Led Indicators

    2.2 LED Indicators Indication Description WWAN Flashing slowly System is powering up and initializing Solid WWAN data connection acquired Flashing quickly WWAN data connection temporarily lost Device is off or in hibernation mode Blip once every Device is in monitoring or standby mode 30 seconds (keep ‘off’) Intermittent...

  • Page 11: Installation

    3. Installation The image below shows how the JKS3 tracking device is installed. JKS3 Device...

  • Page 12: Specifications

    4. Specifications • Hardware & WAN module: IMQ3 software – LTE CATM1 (B4/13/25/26) – GPS/GLONASS/aGPS • USIM 3FF • Microcontroller – STM32 F030 – ADC/UART/SPI/I2C/GPIO – 5 power mode control • Backup Li-ion battery battery – Spec: 170 mAh/3.7 V –...
