The Hummingbird ICP Control Module (REF: HICP200) is a ICP Control Module with an
integrated Patient Cable Module and a Monitor Cable specific to the hospital's monitor. The
Hummingbird ICP Control Module, when used with a Hummingbird H110 and H610 devices
and a cable compatible with the hospital's monitor, comprises a system whose principle of
operation is based on air-coupled pressure transduction.
The Hummingbird Patient Cable Module houses the pressure transducer and provides a
high-reliability pneumatic connection to the Hummingbird H110 and H610 devices. The
connector provides for audible and tactile feedback indicating a secure connection. The
intracranial pressure (ICP)waveform is transduced in the Patient Cable Module and the
analog signal is transmitted to the patient monitor, according to AAMI BP-22 standard
protocol of 5µV/V/mmHg.
The Hummingbird ICP Control Module monitors the same ICP signal transmitted to the
hospital monitor to control and implement system air priming cycle requirements and user
interface audio/visual system status.
The Hummingbird ICP Control Module is reusable so long as the instructions contained
herein are followed, while the Hummingbird H110 and H610 devices are single-use devices
only. The Hummingbird ICP Control Module is compatible with the following patient monitors.
Corresponding Monitor-Specific Cable Model Number
Patient monitor
Spacelabs Scout 6-
Pin
HP / Philips 12-Pin
Veridia
GE / Marquette Tram
11-Pin
P/N: 7000717 Rev A, CO-148, Released Date: 2021-01-28; ©2021, IRRAS USA, Inc., All rights reserved

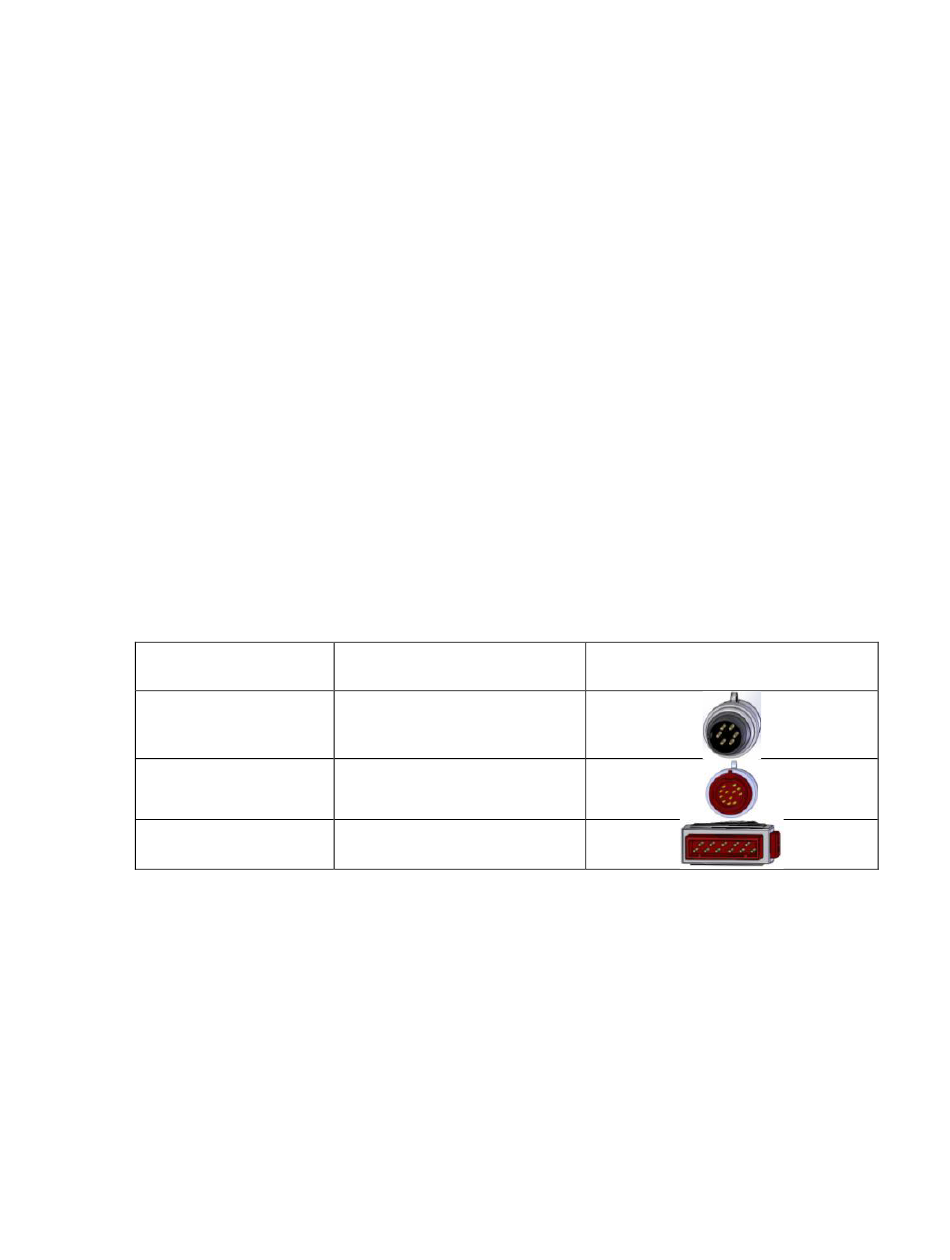

Table 1: Compatible Patient Monitors and
Monitor Cable Model
Number
7000332
7000334
7000335
Page 5 of 38
