Summary of Contents for Zest 4 Leisure Moonlight Arch

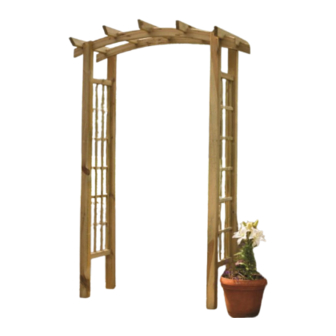

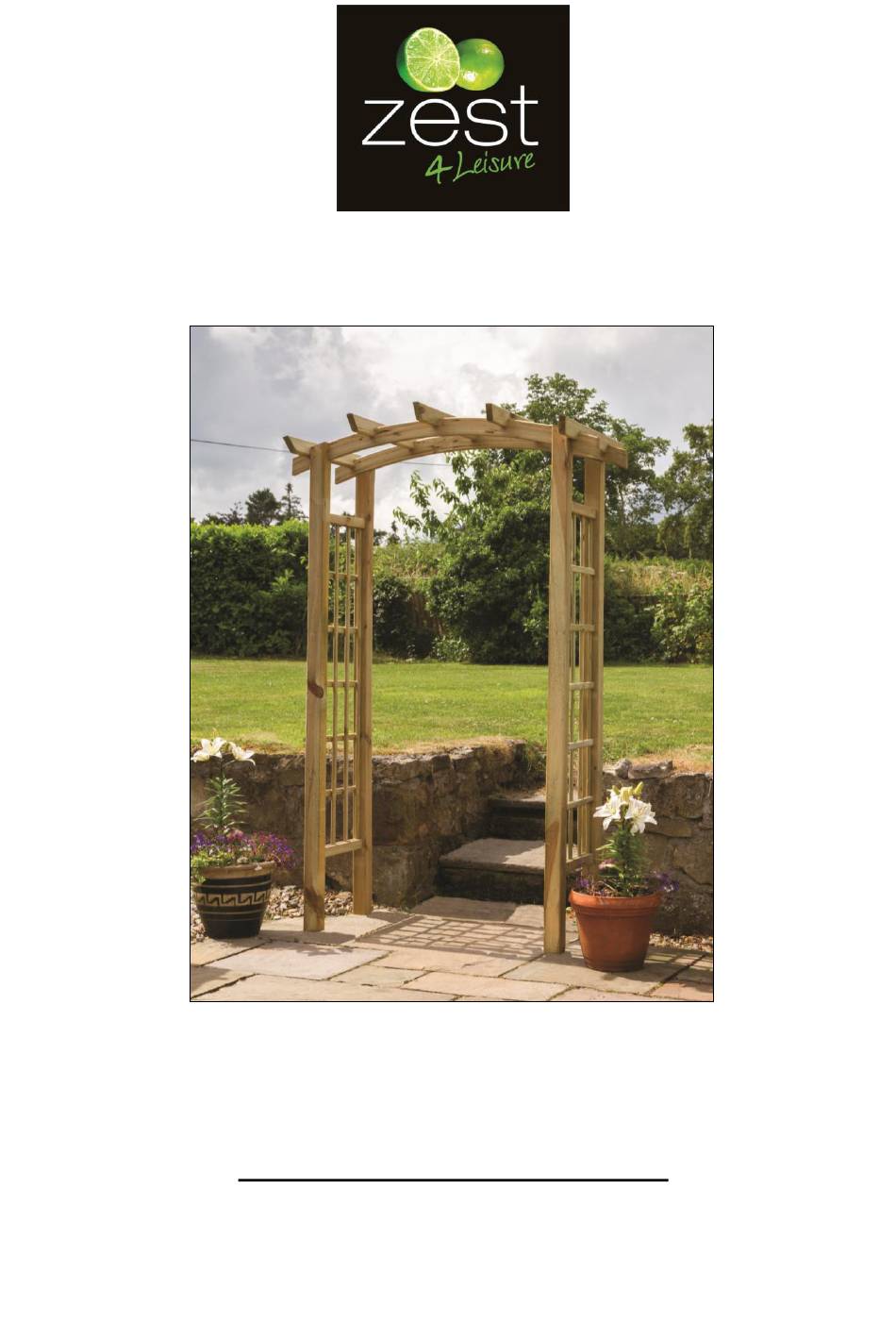

- Page 1 Assembly Instructions (W x D x H) 1.40m x 0.80m x 2.23m Product Name: Moonlight Arch PLEASE KEEP THIS INSTRUCTION Zest4Leisure 01352 752555 option 1 – sales@zest4leisure.co.uk...
- Page 2 Moonlight Arch Assembly Instructions Requires 2 person assembly. All screw holes to be pre-drilled. Tools required: Corded / Cordless Drill, Pozi-drive Bit / Screwdriver, 3mm Drill Bit, Tape Measure. Moonlight Arch Pack List Item Description Quantity Arch Rafter Post Trellis Panel...
- Page 3 Position second Post C as shown in Fig.4a and fix to Arch A using 2no 60mm Screws. Fix Trellis Panel D to second Post C using 2no 40mm Screws (Fig.4b) Repeat stages 1 to 4 for remaining Posts & Trellis Panel on opposite side of arch. Moonlight Arch is now complete.
- Page 4 www.zest4leisure.co.uk...
