Zest 4 Leisure HOLLYWOOD SWING Assembly Instructions

Advertisement

Quick Links

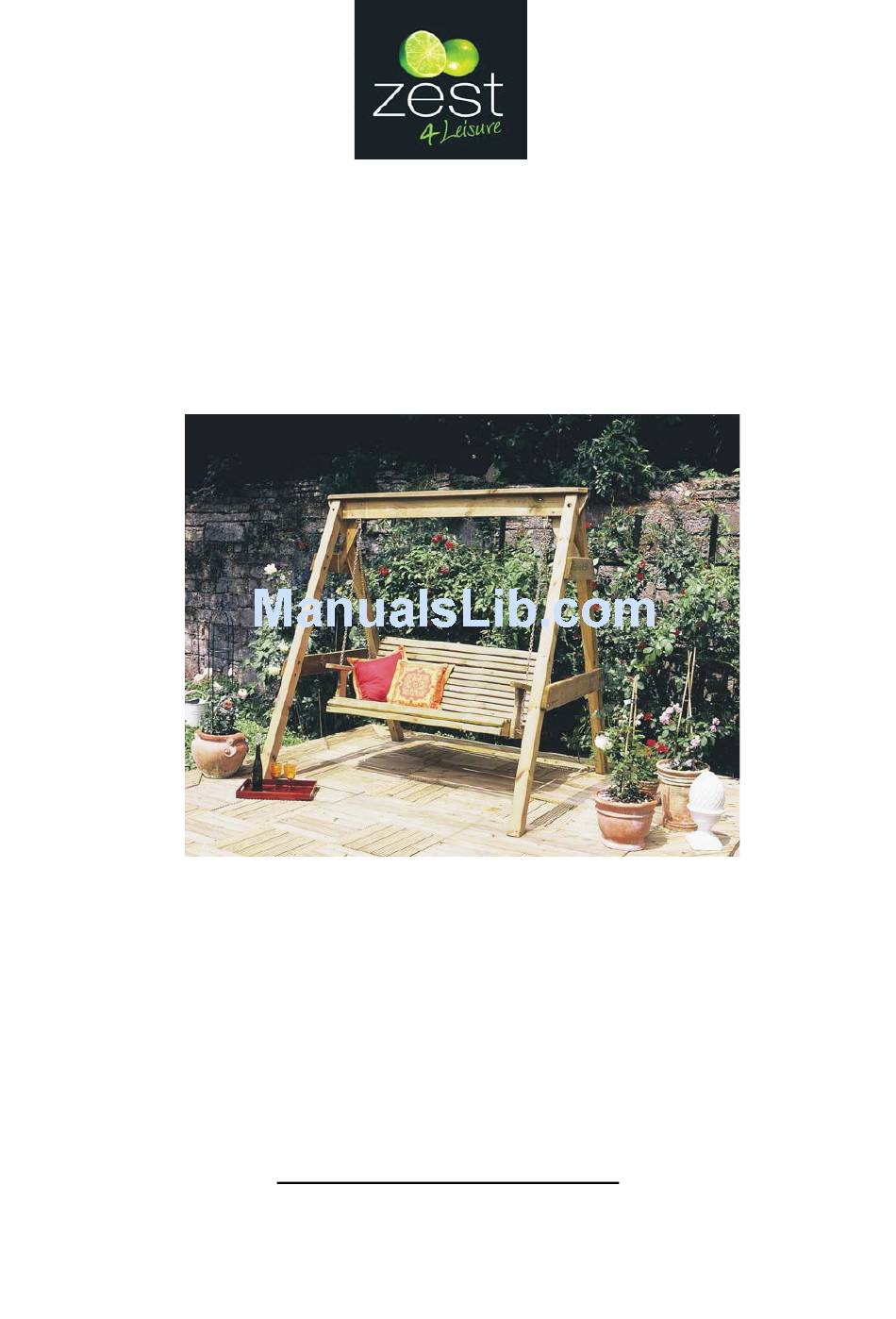

ASSEMBLY INSTRUCTIONS
HOLLYWOOD SWING
Technological adjustments reserved
ITEM CODE - SEATHWS
PLEASE KEEP THIS INSTRUCTION
21460
Zest 4 Leisure
0845 890 2357
sales@zest4leisure.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the HOLLYWOOD SWING and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Zest 4 Leisure HOLLYWOOD SWING

  • Page 1 ASSEMBLY INSTRUCTIONS HOLLYWOOD SWING Technological adjustments reserved ITEM CODE - SEATHWS PLEASE KEEP THIS INSTRUCTION 21460 Zest 4 Leisure 0845 890 2357 sales@zest4leisure.co.uk...
  • Page 2 Hollywood Swing Seat Requires 2 person assembly. Tools required:- Hammer, Corded/ Cordless Drill, Tape Measure, Pozidrive Bit/Screwdriver, 3mm Drill Bit, Pencil. See Swing Hammock Base Instructions. 1) Lay out 2no posts (5) (with counter-bore facing down) and position upper and lower crossboards (3 & 4) see fig1. Align all holes and insert 8no M8x100mm bolts (B).
  • Page 3 P.T.O. See Swing Hammock Bench Instructions. 1) Interlock bench back (8) and bench (9), align bolt holes and fix using 6no M8 x 45mm bolts (E). NB Do not fully tighten nuts at this stage. 2) Assemble connection braces (11) to arm rests (10) as per diagram, by locating dowels and pre- drilled holes, and secure using 2no 4x50mm screws (A).
  • Page 5 Parts list item code 42580 HOLLYWOOD Swing Picture Description/name Dimensions [cm] Number gableboard 3,5x15,5x222,5 beam 4,5x15,5x222,5 short strut 3,5x15,5x55,5 long strut 3,5x15,5x120 pole 8,5x8,5x226 strut 3,5x9x65 bench 9,5x59,5x152,4 seat 14x57,5x152,4 arm rest for bench 3,4x9,3x61,5 connection brace betw. seat+arm rest...
