VERSION
# 20-0 9-19
1 / 9
MODEL #
CM3480T-5PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Delemont CM3480T-5PK
Summary of Contents for Furniture of America Delemont CM3480T-5PK

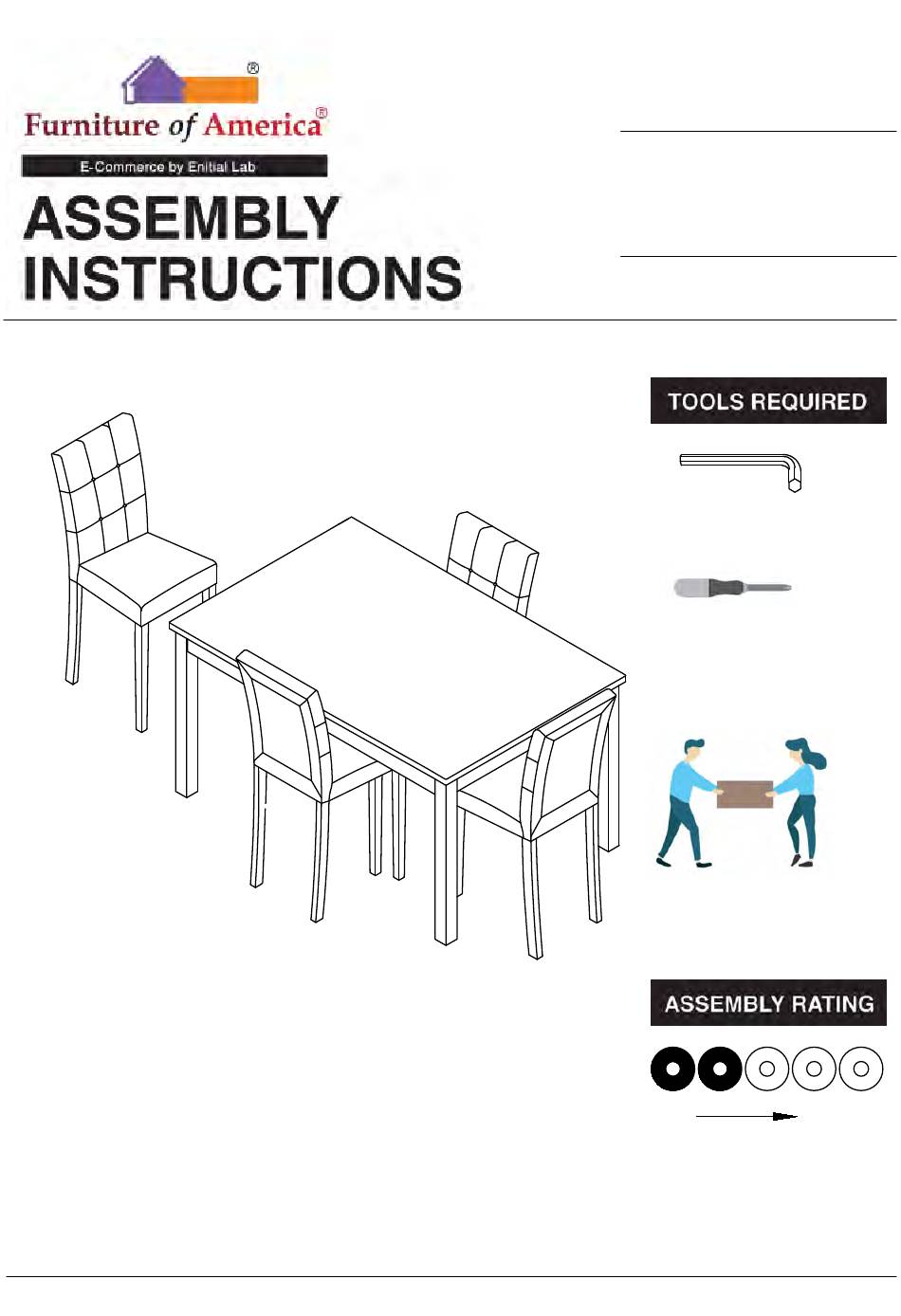

- Page 1 MODEL # CM3480T-5PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 TABLE CM3480T-5PK #1 1pc #2 4pcs Table Top Table Legs #A 8pcs #B 8pcs #C 8pcs #D 1pc Lock Washer Flat Washer Allen Wrench Bolt Ø5/16" x 2"-1/4" Ø5/16" Ø5/16" 5 / 9...
- Page 3 ASSEMBLY INSTRUCTIONS Align legs (#2) to the top (#1), then secure by using bolts (#A) with washers (#B,C). Part #1 x1pc Part #2 x4pcs Hardware #A x8pcs Hardware #B x8pcs Hardware #C x8pcs 6 / 9...
- Page 4 CHAIR CM3480T-5PK #1 1pc x4 #2 1pc x4 #3 2pcs x4 Chair Leg Chair Seat Backrest #A 4pcs x4 #D 10pcs x4 #B 4pcs x4 #C 2pcs x4 Lock Washer Ø5/16" Bolt Ø5/16" x 2"-1/4" Bolt Ø5/16" x 1-1/2" Bolt Ø5/16" x 3-1/4" #F 1pc x4 #E 10pcs x4 Flat Washer Ø5/16"...
- Page 5 ASSEMBLY INSTRUCTIONS Align seat (#2) to the chair back (#1), then secure by using bolts (#C) with Part #1 x1pc washers (#D,E). Part #2 x1pc Hardware #C x2pcs Hardware #D x2pcs Hardware #E x2pcs Hardware #A x4pcs Secure seat to chair back by using bolts Hardware #D x4pcs (#A) with washers (#D,E).
- Page 6 ASSEMBLY INSTRUCTIONS Align front legs (#3) to the seat, Part #3 x2pcs then secure by using bolts (#B) with #D #E Hardware washers (#D,E). #B x4pcs Hardware #D x4pcs Hardware #E x4pcs 9 / 9...
