J1939:
This section is used to define the main parameters of J1939 line. The means of the
fields are:
In the field "Baudrate" the data rate of J1939 is defined;
In the field "TimeOut
received in this time, the data on LoRaWAN side are set to 0xFF;
If the field "Enable Peer to
Address of the J1939 messages received.
In the field "ID Device
ETHERNET:
This section is used to define the general parameters of Ethernet. The means of the
fields are:
In the fields "IP Address" the IP address for Ethernet side of the converter is
defined;
In the fields "SubNet Mask" the SubNet Mask for Ethernet side of the converter
is defined;
In the fields "Gateway" the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net;
In the fields "DNS" the IP address of the DNS server is defined
ADFweb.com S.r.l.
Data" a time is defined. When a J1939 message is not
Peer" is checked, the gateway will mask the Source
J1939" the ID of J1939 side of the converter is defined.
User Manual LoRaWAN / J1939
Document code: MN67D26_ENG Revision 1.000

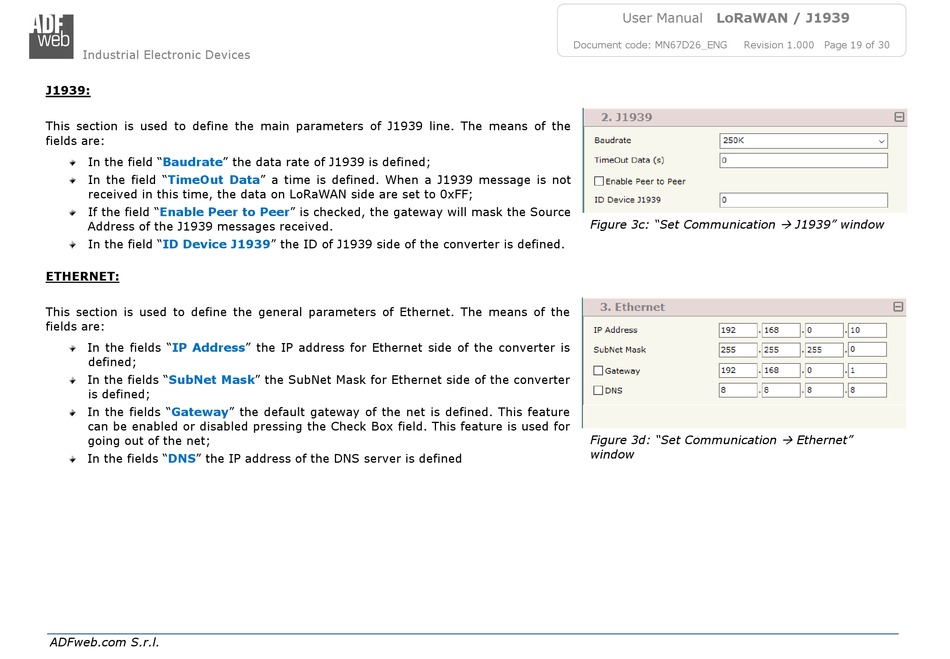

Figure 3c: "Set Communication
