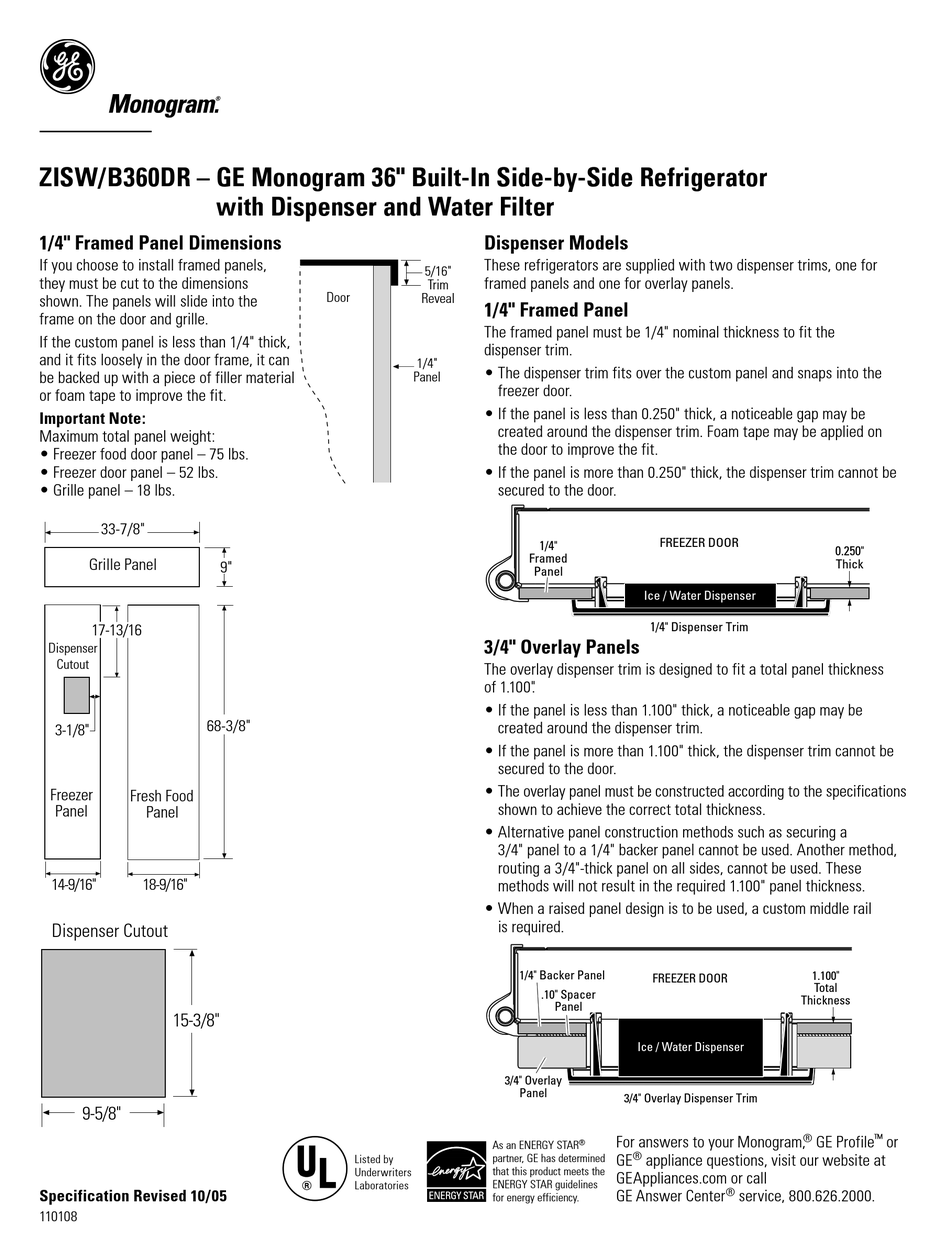

Monogram ZISB360DR Dimensions page 4

ZISW/B360DR – GE Monogram 36" Built-In Side-by-Side Refrigerator
with Dispenser and Water Filter
1/4" Framed Panel Dimensions
If you choose to install framed panels,
they must be cut to the dimensions
shown. The panels will slide into the
frame on the door and grille.
If the custom panel is less than 1/4" thick,
and it fits loosely in the door frame, it can
be backed up with a piece of filler material
or foam tape to improve the fit.
Important Note:
Maximum total panel weight:
• Freezer food door panel – 75 lbs.
• Freezer door panel – 52 lbs.
• Grille panel – 18 lbs.
33-7/8"
Grille Panel
17-13/16
Dispenser
Cutout
68-3/8"
3-1/8"
Freezer
Fresh Food
Panel
Panel
14-9/16" 18-9/16"
Dispenser Cutout
15-3/8"
9-5/8"
Specification Revised 10/05
110108
194Dia63
Door
194Dia59
9"
Listed by
Underwriters
Laboratories
R
Dispenser Models
These refrigerators are supplied with two dispenser trims, one for
5/16"
framed panels and one for overlay panels.
Trim
Reveal
1/4" Framed Panel
The framed panel must be 1/4" nominal thickness to fit the
dispenser trim.
1/4"
• The dispenser trim fits over the custom panel and snaps into the
Panel
freezer door.
• If the panel is less than 0.250" thick, a noticeable gap may be
created around the dispenser trim. Foam tape may be applied on
the door to improve the fit.
• If the panel is more than 0.250" thick, the dispenser trim cannot be
secured to the door.
1/4"
Framed
Panel
3/4" Overlay Panels
The overlay dispenser trim is designed to fit a total panel thickness
of 1.100" .
• If the panel is less than 1.100" thick, a noticeable gap may be
created around the dispenser trim.
• If the panel is more than 1.100" thick, the dispenser trim cannot be
secured to the door.
• The overlay panel must be constructed according to the specifications
shown to achieve the correct total thickness.
• Alternative panel construction methods such as securing a
3/4" panel to a 1/4" backer panel cannot be used. Another method,
routing a 3/4"-thick panel on all sides, cannot be used. These
methods will not result in the required 1.100" panel thickness.
• When a raised panel design is to be used, a custom middle rail
is required.
1/4" Backer Panel
.10" Spacer
Panel
3/4" Overlay
Panel
As an ENERGY STAR ®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
FREEZER DOOR
Ice / Water Dispenser
1/4" Dispenser Trim
696Dia3
FREEZER DOOR
Ice / Water Dispenser
3/4" Overlay Dispenser Trim
For answers to your Monogram,
®
GE appliance questions, visit our website at
696Dia4
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
0.250"
Thick
1.100"
Total
Thickness
® ™
GE Profile or
