Monogram ZISB360DR Dimensions page 3

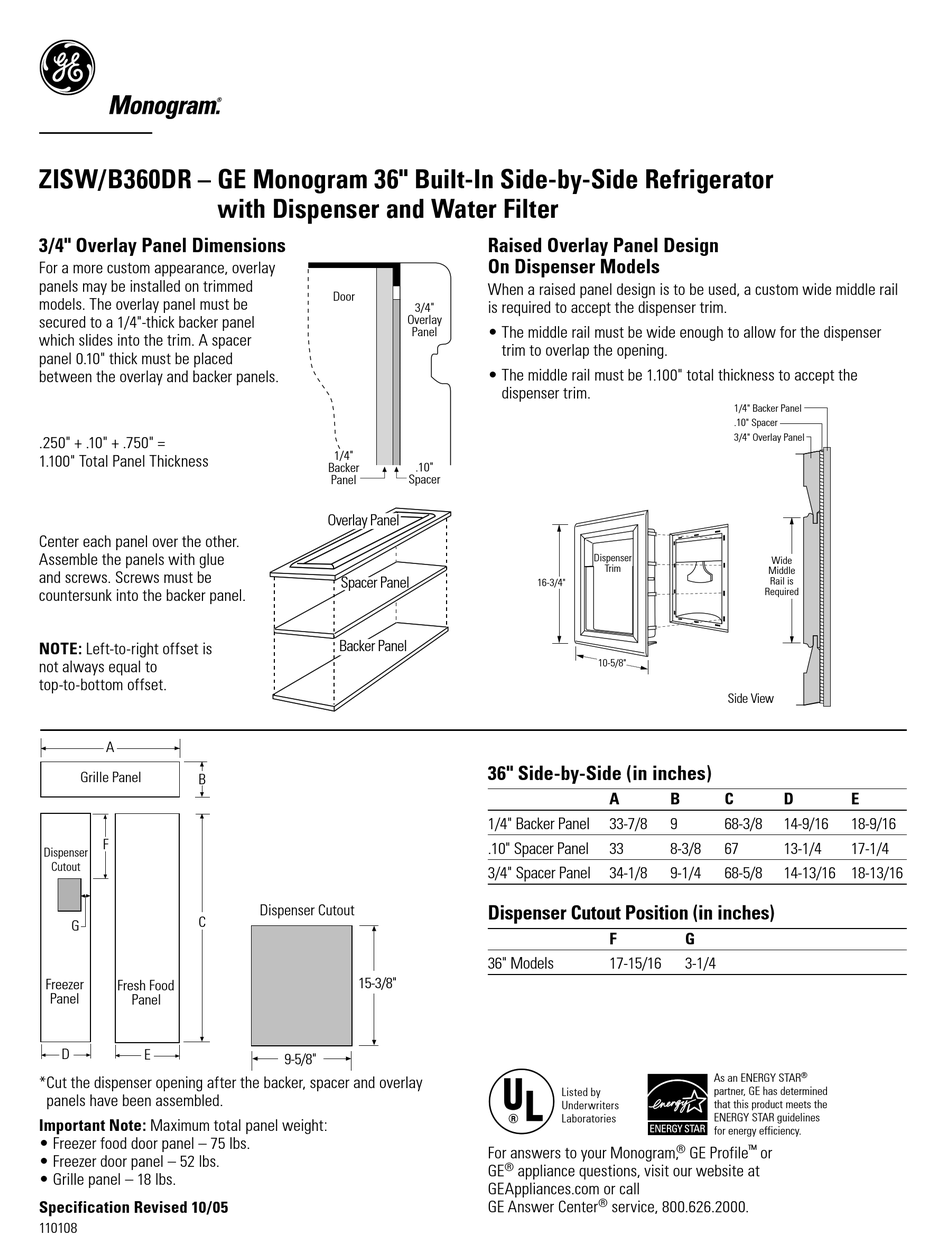

ZISW/B360DR – GE Monogram 36" Built-In Side-by-Side Refrigerator
with Dispenser and Water Filter
3/4" Overlay Panel Dimensions
For a more custom appearance, overlay
panels may be installed on trimmed
models. The overlay panel must be
secured to a 1/4"-thick backer panel
which slides into the trim. A spacer
panel 0.10" thick must be placed
between the overlay and backer panels.
.250" + .10" + .750" =
1.100" Total Panel Thickness
Center each panel over the other.
Assemble the panels with glue
and screws. Screws must be
countersunk into the backer panel.
NOTE: Left-to-right offset is
not always equal to
top-to-bottom offset.
A
Grille Panel
B
F
Dispenser
Cutout
C
G
Freezer
Fresh Food
Panel
Panel
D E
*Cut the dispenser opening after the backer, spacer and overlay
panels have been assembled.
194Dia64
Important Note: Maximum total panel weight:
• Freezer food door panel – 75 lbs.
• Freezer door panel – 52 lbs.
• Grille panel – 18 lbs.
Specification Revised 10/05
110108
Door
3/4"
Overlay
Panel
1/4"
Backer .10"
Spacer
Panel
Overlay Panel
194Dia58
Spacer Panel
Backer Panel
194Dia65
Dispenser Cutout
15-3/8"
9-5/8"
194Dia63
Raised Overlay Panel Design
On Dispenser Models
When a raised panel design is to be used, a custom wide middle rail
is required to accept the dispenser trim.
• The middle rail must be wide enough to allow for the dispenser
trim to overlap the opening.
• The middle rail must be 1.100" total thickness to accept the
dispenser trim.
Dispenser
Trim
16-3/4"
10-5/8"
36" Side-by-Side (in inches)
194Dia82
A
1/4" Backer Panel 33-7/8
.10" Spacer Panel 33
3/4" Spacer Panel 34-1/8
Dispenser Cutout Position (in inches)
F
36" Models 17-15/16
Listed by
Underwriters
Laboratories
R
