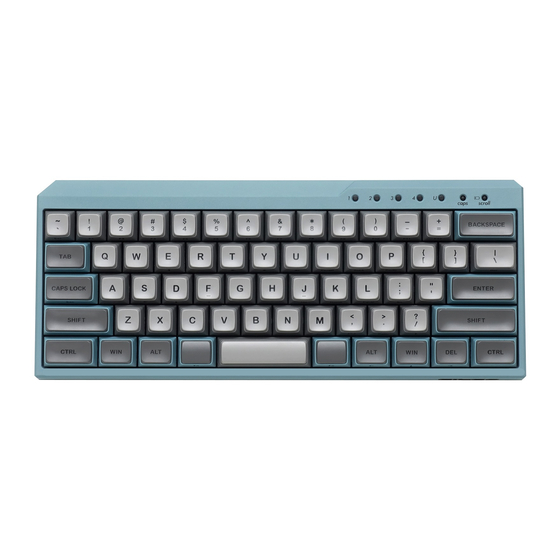

- Page 1 Guidance for swapping keycaps on MINILA-R Convertible 63 key This is an instruction of where to swap keys when using DIP switches.
- Page 2 DIP switch ‒ all OFF 11 additional keycaps...
- Page 3 DIP switch 1 ‒ ON Swap CapsLock key and Left Ctrl key Use Ctrl key and Capslock key as they are. No change is needed.
- Page 4 DIP switch 2 ‒ ON Swap CapsLock key and ESC key Install ESC key in additional keycap set.
- Page 5 DIP switch 1 and 2 ‒ ON Swap CapsLock key and left Ctrl key Swap CapsLock key and ESC key Use Ctrl key as it is and install ESC key in additional keycap set.
- Page 6 DIP switch 3 ‒ ON Swap DEL key in a 2nd row from the top far right and [ \ | ] key, and change DEL key on the bottom row to [ \ | ] key. Install DEL key and [ \ | ] key in additional keycap set.
- Page 7 DIP switch 4 ‒ ON Validate cursor keys on the right bottom and invalidate cursor keys on E/S/D/F. Install cursor keys in Remove top part of E/S/D/F with included special key puller and rotate bottom part 180 degrees and put top additional keycap set. part of E/S/D/F back so that cursor symbols cannot be seen from typing position.
- Page 8 DIP switch 3 & 4 ‒ ON Swap DEL key in a 2nd row from the top far right and [ \ | ] key, and change DEL key on the bottom row to [ \ | ] key. Validate cursor keys on the right bottom and invalidate cursor keys on E/S/D/F. Remove top part of E/S/D/F with Install ↑, ← and ↓ keys in additional keycap set. Install DEL key in included special key puller and Remove top part of →(Del) key in additional keycap set additional keycap rotate bottom part 180 degrees and with included special key puller and rotate bottom part set. put top part of E/S/D/F back so that 180 degrees and put top part of →(Del) key back so cursor symbols cannot be seen from that [ \ | ] symbols can be seen from typing position. typing position.
- Page 9 DIP switch 5 ‒ ON MAC mode Install OPT key and CMD key in Install CMD key and OPT key in additional keycap set. additional keycap set.
- Page 10 DIP switch 4 & 5 ‒ ON Validate cursor keys on the right bottom and invalidate cursor keys on E/S/D/F. Validate MAC mode. Install OPT key and CMD key Remove top part of E/S/D/F with Install ↑ and → keys in additional keycap set. in additional keycap set. included special key puller and Remove top part of ←(Alt) key and ↓(Win) key rotate bottom part 180 degrees and in additional keycap set and rotate bottom put top part of E/S/D/F back so that part 180 degrees and put top part of ←(Alt) cursor symbols cannot be seen from key and ↓(Win) key so that cmd and option typing position. print can be seen from typing position. ...
