Assembly, Maintenance

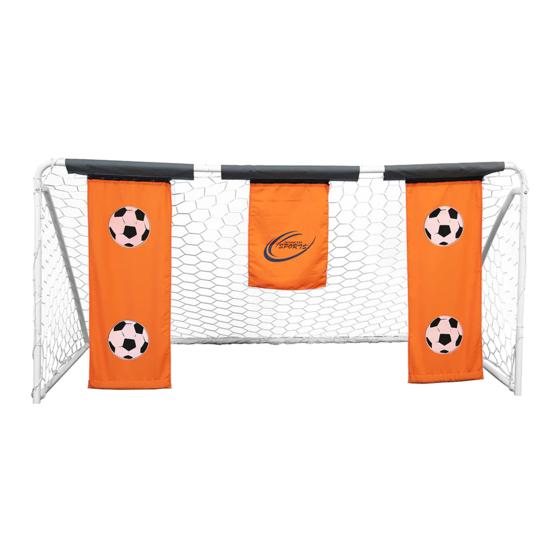

Skywalker Sports Soccer Goal Model # SSFG9
WARNING
!
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
and User Manual
SKYWALKER
SPORTS
SKYWALKER
SPORTS
BY SKYWALKER TRAMPOLINES
Skywalker Holdings LLC
PO Box 574, Brigham City, UT 84302

Advertisement

loading
Need help?

Need help?

Do you have a question about the SSFG9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for skywalker sports SSFG9

Summary of Contents for skywalker sports SSFG9

  • Page 1 Assembly, Maintenance and User Manual Skywalker Sports Soccer Goal Model # SSFG9 SKYWALKER SPORTS SKYWALKER SPORTS WARNING BY SKYWALKER TRAMPOLINES Read all precautions and instruc- tions in this manual before using Skywalker Holdings LLC this equipment. Save this manual for future reference.

  • Page 2: Table Of Contents

    Model # ID label is located on the left pole of the soccer goal. SKYWALKER SPORTS CONTENTS Before you Begin ..................3 Installation ....................3 Part Identification Chart ................4 Exploded Drawing ..................5 Part List ..................... 6 Assembly ....................7-13 Maintenance Information ................

  • Page 3: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting a Skywalker Holdings Soccer Goal. With proper care and mainte- nance, this Soccer Goal will provide many years of backyard fun. Your Soccer Goal comes equipped with warnings and instructions for the assembly, care, maintenance, and use. This information must be read by all in charge of safety and communicated to or read by all users before any person is allowed to use the Soccer Goal.

  • Page 4: Part Identification Chart

    PART IDENTIFICATION CHART Model No. SSFG9 Before beginning assembly, refer to the drawings below to identify all the parts used in assembly. The number in the circle by each drawing is the key number of the part from the PART LIST on page 6.

  • Page 5: Exploded Drawing

    EXPLODED DRAWING - MODEL NO. SSFG9 12 13 SKYWALKER SPORTS BY SKYWALKER TRAMPOLINES...

  • Page 6: Part List

    PART LIST- MODEL NO. SSFG9 Key No. Qty. Description Top corner tube Cross bar Front side post (short) Front bottom corner Bottom cross bar (long) Bottom left corner Bottom right corner Back top bent tube Back side post Anchor tube...

  • Page 7: Assembly

    ASSEMBLY Make Things Easier for Yourself! This manual is designed to ensure that the Soccer Goal can be assembled successfully by anyone. Most people find that by setting aside plenty of time, assembly will go smoothly. 1. Locate both Key #1s (top corner tubes) and one Key #2 (cross bar). Insert cross bar (2) into one top corner tube (1) as shown.
  • Page 8 3. Locate Key #4 (front bottom corner) and Key #3 (front side post short). Insert one front bottom corner (4) into one front side post (3) as shown. Repeat with remaining front bottom corner and front side post. (short) 4. Starting at the bottom of the net, weave the assembled tubes in step 3 in and out of the larger holes in the side of the net (15) as shown below.
  • Page 9 5. Attach one bottom cross bar long(5) to each of the front bottom corners (4) as shown. 6. Locate key #6 (back bottom left corner), key #2 (cross bar) and key #7 (back bottom right corner). Connect the back bottom left corner (6), cross bar (2) and back bottom right corner (7) together.
  • Page 10 7. Place the assembled tube section from the previous step on the inside of the net (15), attach to the bottom cross bars (5). 8. Locate two key #8 (back top bent tubes) and two key #9 (back side posts). Connect one back top bent tube (8) to one back side post (9) as shown.
  • Page 11 9. Place the assembled tube sets in step 8 into the bottom left(6) and bottom right corners (7) Attach the back tubes to front side posts (3) with two bolts (12) , two washers (13) and arc washers (14). 12 13 10.
  • Page 12 11. Locate the key #10 anchor tubes and insert them into the front bottom corners(4). 12. To set the goal into the ground, select a flat surface of dirt or grass, making sure the assembled unit will be at least 9 feet from other structures or obstructions. Then, with a steel or rubber mallet, drive the two ground stakes(11) into the ground making sure they are spaced to match up with the anchor tubes on the goal.
  • Page 13 Note: The sandbag weights are preinstalled in the bottom of the banners. SKYWALKER SPORTS BY SKYWALKER TRAMPOLINES The assembly of your Skywalker Sports soccer goal is now complete. Enjoy!

  • Page 14: Maintenance Information

    MAINTENANCE INFORMATION This product was manufactured using quality materials and crafted to provide you and your family with many years of enjoyment and exercise. Proper maintenance and care will help to prolong the life and reduce the possibility of injury. The following guidelines should be followed. 1.
  • Page 15 Read the assembly, installation, care, maintenance, and use instructions in this manual prior to assembling and using this Soccer Goal. Save this manual for future reference. For assembly help, warranty information, other products or any additional information pertaining to Skywalker Sports and Skywalker Trampolines please visit our many online locations: www.skywalkertrampolines.com www.facebook.com/skywalkertrampolines...

  • Page 16: Limited Warranty

    LIMITED WARRANTY Skywalker Holdings, LLC warranties its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for one (1) year after the date of purchase. All other parts are warranted for ninety (90) days after the date of purchase.
