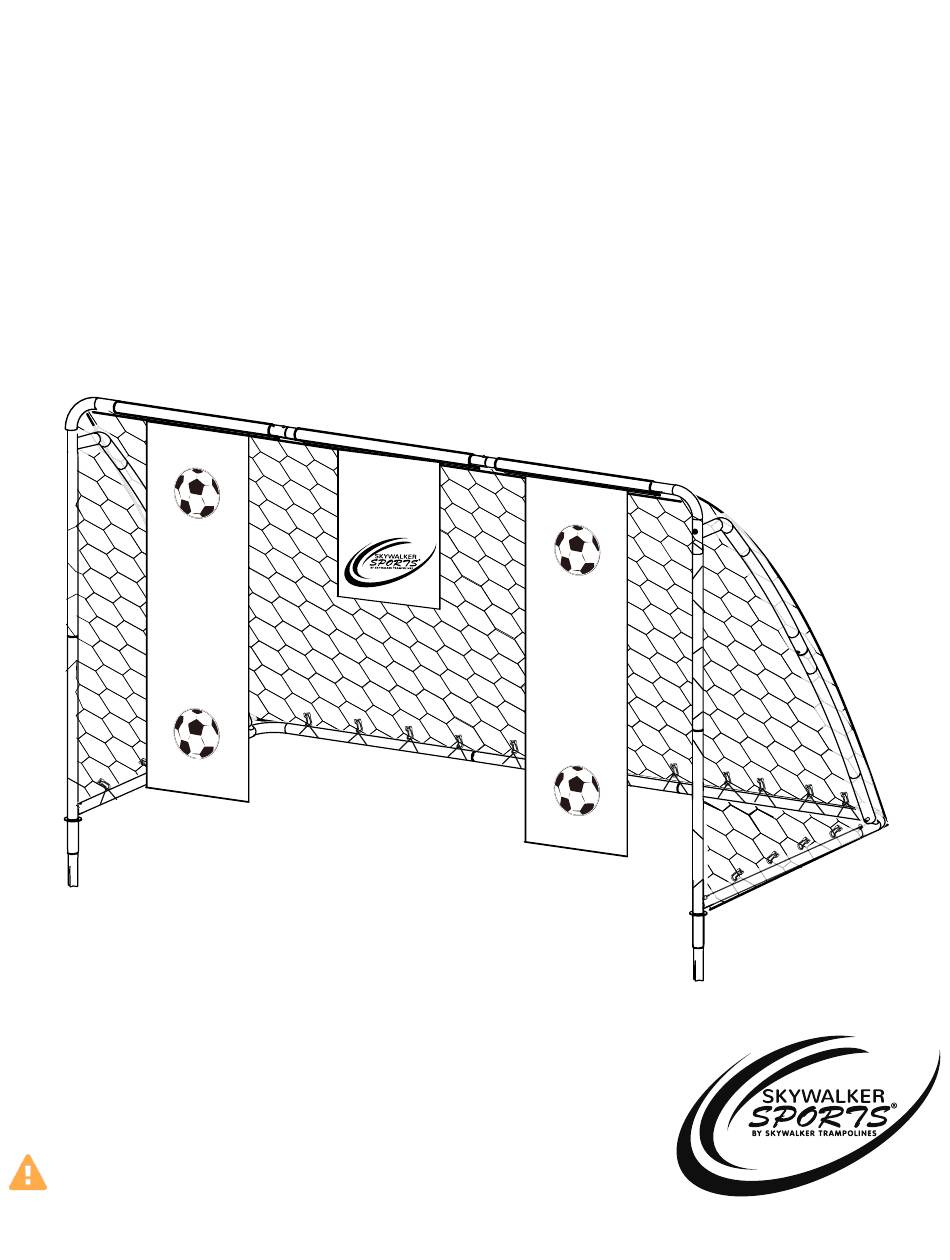

ASSEMBLY, MAINTENANCE, &
USER MANUAL
MODEL #SSFG9
WARNING
Read all precautions and instructions in
this manual before using this equipment.
Skywalker Holdings LLC
Save this manual for future reference.
P.O. Box 574, Brigham City, UT 84302

Advertisement

loading
Need help?

Need help?

Do you have a question about the SSFG9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for skywalker sports SSFG9

Summary of Contents for skywalker sports SSFG9

  • Page 1 ASSEMBLY, MAINTENANCE, & USER MANUAL MODEL #SSFG9 WARNING Read all precautions and instructions in this manual before using this equipment. Skywalker Holdings LLC Save this manual for future reference. P.O. Box 574, Brigham City, UT 84302...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Part List.....................................3 Part Identification................................4-5 Exploded Drawing................................6 Assembly...................................7-13 Limited Warranty................................14 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR TRAMPOLINE Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/ You'll need to have the following information handy: • Name • Email address •...

  • Page 3: Part List

    BEFORE YOU BEGIN Thanks for choosing Skywalker Sports! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know.

  • Page 4: Part Identification

    PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Front Side Post Top Corner Tube (x2) Cross Bar (x2) (Short) (x2)
  • Page 5 Washer (x2) Arc Washer (x2) Net (x1) Soccer Banner (x2) Middle Banner (x1) Clip (x20) Wrench (x1) Sandbag Weight (x2)

  • Page 6: Exploded Drawing

    EXPLODED DRAWING (13) (12) (14) (14) (12) (13) (10) (10) (11) (11) (15) (17) (18) (16) (16) (20) (19) (20)

  • Page 7: Assembly

    ASSEMBLY READ THIS BEFORE YOU BEGIN • You’ll probably need at least 2 adults and 2 hours to assemble your soccer goal (of course, that depends on what model you have, and whether or not you’re secretly a superhero). • We’ve provided a wrench to help with assembly, but you’re more than welcome to use your own tools. •...
  • Page 8 ASSEMBLY STEP 3 Slide the tube section from step 1 into the left and middle sleeves on the top of the net (15) as shown. Slide the remaining top corner tube (1) through the sleeve on the right side of the net, and insert into the cross bar (2) as shown. Net (x1) (15) STEP 4...
  • Page 9 STEP 5 Starting at the bottom of the net, weave the assembled tubes from step 4 in and out of the larger holes in the left side of the net (15) as shown. When you reach the top of the net, insert the assembled tubes into the top corner tube (1).
  • Page 10 ASSEMBLY STEP 7 Connect the bottom left corner (6), the cross bar (2), and the back bottom right corner (7) together as shown. Bottom Left Corner (x1) Bottom Right Corner (x1) STEP 8 Place the assembled tube section from step 7 on the inside of the net (15), and attach to the bottom cross bars (5).
  • Page 11 STEP 9 Connect one back top bent tube (8) to one back side post (9). Repeat this step with the remaining back top bent tube and back side post. Back Top Bent Tube (x2) Back Side Post (x2) STEP 10 Insert the assembled tube sets from step 8 into the bottom left (6) and bottom right (7) corners.
  • Page 12 ASSEMBLY STEP 11 Locate the 20 clips (18). Wrap the net so it lies underneath the bottom of the goal frame and wraps toward the inside. Secure the net (15) to itself by using a clip to attach the excess net on the inside to the outside portion just above the bar.
  • Page 13 STEP 13 To attach the banners, simply zip onto the sleeves. To remove, either zip off or toss over the back of net. Note: The sandbag weights are preinstalled in the bottom of the banners. Soccer Middle Banner (x1) Banner (x2) (17) (16) (16)

  • Page 14: Limited Warranty

    LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase.
  • Page 15 NOTE: SKYWALKER HOLDINGS, LLC IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
