Carrier NSA-ASENSE-D-LCD-REL Owner's Manual Installation And Operation

#NSA-ASENSE-D-LCD-REL, NSA-ASENSE-D-REL – 11/14/2019

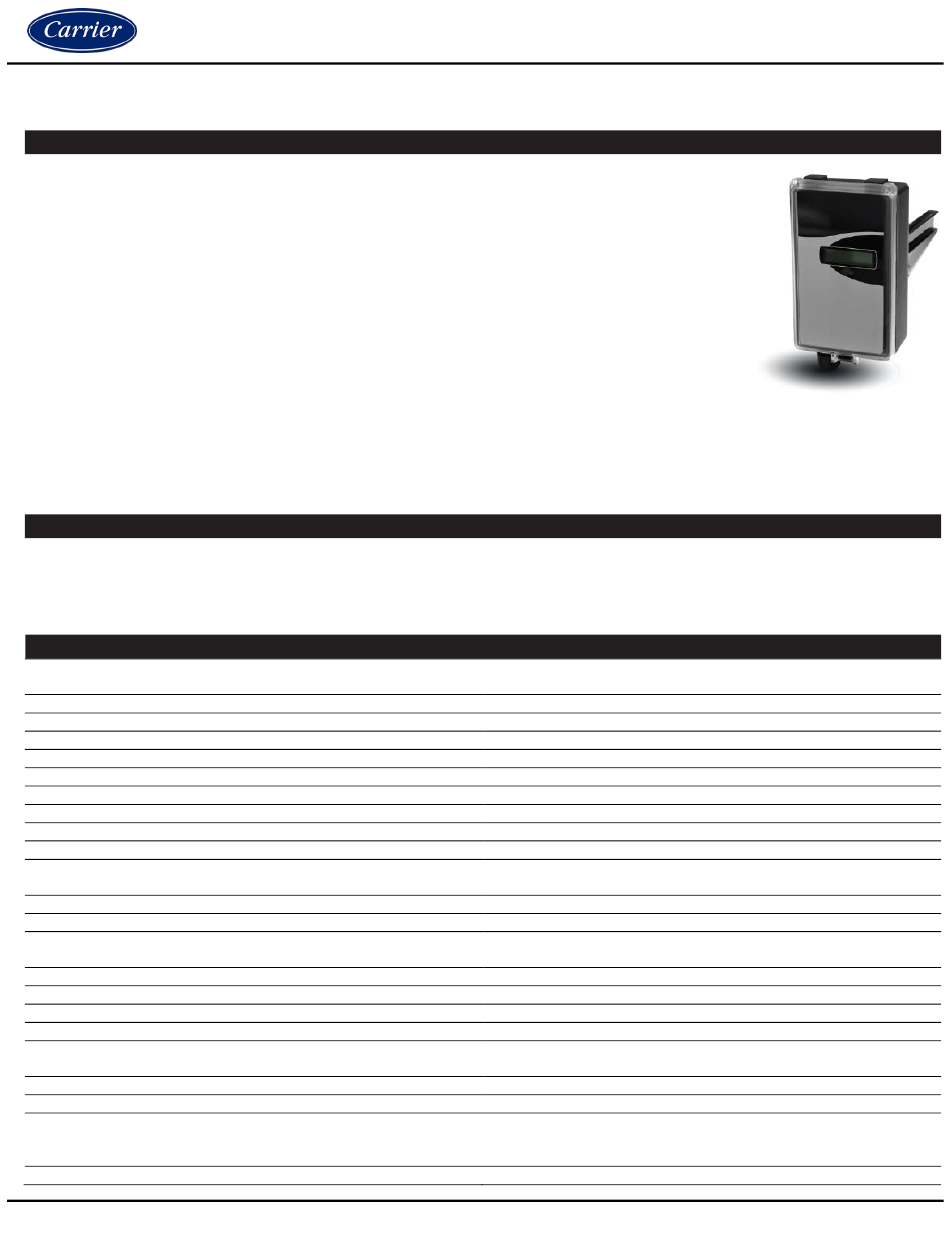

Overview

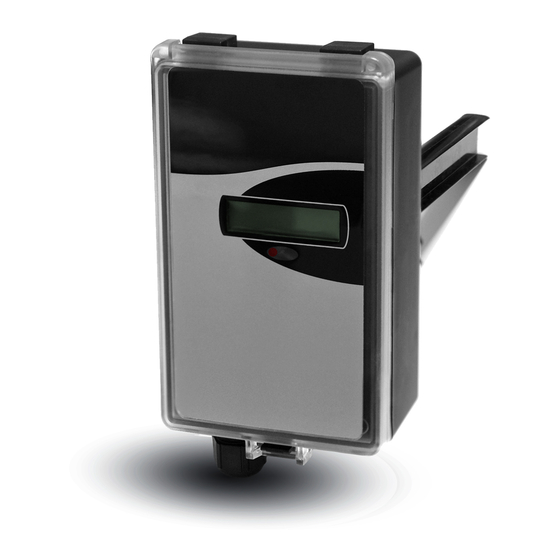

The ASENSE Duct series with IP65 Rated Enclosure monitors the carbon dioxide (CO2) levels
in industrial, commercial, school, and office type environments. The concentration of CO2 is a
strong indication of the overall indoor air quality. The ASENSE Series is based on a single beam
non-dispersive infrared technology and is a cost-optimized solution for the climate control of
buildings and other processes. In addition, ABC software eliminates the need for manual
calibration. The ASENSE Series measures the CO2 concentration in the ambient air up to 2,000
ppm and converts the data into an analog output. This data can be used in conjunction with a
Building Automation or Demand Control Ventilation System to create a healthier indoor climate.
This series features an analog temperature output (32 to 122°F) and come with combined
output options of 0-10 VDC and 0 to 20 mA (4 to 20 mA and 2-10 VDC are field selectable via
an onboard jumper) or 0-5 VDC for "-5" versions. A relay option is available for this series as
well. The UIP5 software and programming cable offer a configuration/test utility and provide
access to the main features of the ASENSE series.
Applications: Commercial Office Buildings, Hospitals & Schools
Part Numbers
NSA-ASENSE-D-LCD-REL
Specifications
Supply Voltage:
Power Consumption:
Wiring Connections:
Operating Environment:
Operating Temperature:
Operating RH:
Warm-Up Time:
Accuracy:
Repeatability:
Annual Zero Drift:
Operating Pressure:
Sensing Method:
2
Sensor Life :
Response Time (T1/e):
Sensing Range:
Extended CO2 Ranges:
Extended Range Accuracy:
Coverage Area:
Self-Diagnostics:
Display (Optional):
3
Calibration :
Outputs:
Relay (Optional):
Catalog No. 11-808-745-01
NSA-ASENSE-D-REL
24 VAC/VDC ±20%; 50/60 Hz, 10.5 to 40 VDC maximum (Half-
wave rectified)
<1W
0.00232 in² (1.5 mm²) screw terminals
Residential, commercial, and industrial spaces
32ºF to 122ºF (0ºC to 50ºC)
0 to 85% RH Non-condensing
<5 minutes (@ full specs 15 minutes)
CO2
±20 ppm ±1% of measured value
<± 0.3% of measurement range
+1.6% per 0.145 psi (1 kPa) deviation from normal pressure | (1
Atmosphere = 14.7 psi (1.013 KPa))
Single beam Non-dispersive Infrared (NDIR)
>15 years
<10 seconds @ 30 cc / minimum flow rate, <3 minutes diffusion
time
CO2: 0 to 2000 ppm | Temperature: -4 to 140ºF (-20 to 60ºC)
2000 to 10,000 ppm (factory set or programming cable required)
+/- 30 ppm and +/- 5% of reading
7500 sq. ft. maximum
Complete function check, yellow LED; LCD error indication
(display model only)
4 digits, 7 segments LCD with ppm indicator
Senseair ABC algorithm (Automatic Baseline Correction)
Out 1 (CO2): 0/2 to 10V, 0/4 to 20 mA, 0 to 2000 ppm
Out 2 (Temperature): 0/2 to 10V, 0/4 to 20 mA, 32 to 122ºF (0 to
50ºC)
Out 3: N.O. or N.C. rated 0.5A @ 125 VAC; 1A @ 24 VDC
Specifications subject to change without notice.
Asense CO2 Duct Sensor
1
: ±30 ppm ±3% of reading | Temperature: ±1.8ºF (1ºC)
Installation and Operation
Page 1 of 9
