MQTT S
UBSCRIBE

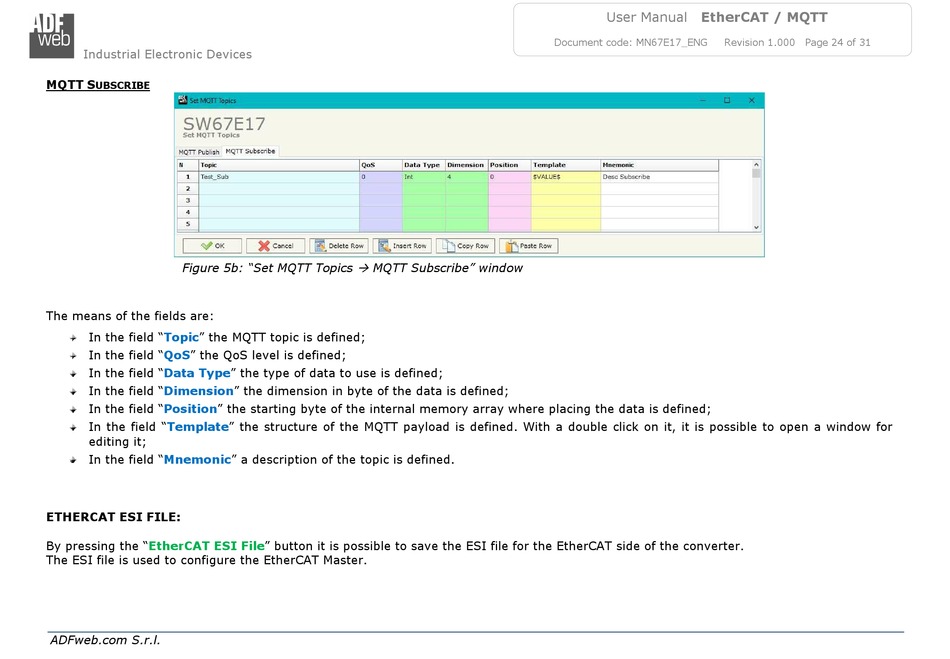

Figure 5b: "Set MQTT Topics
The means of the fields are:
In the field "Topic" the MQTT topic is defined;
In the field "QoS" the QoS level is defined;
In the field "Data Type" the type of data to use is defined;
In the field "Dimension" the dimension in byte of the data is defined;
In the field "Position" the starting byte of the internal memory array where placing the data is defined;
In the field "Template" the structure of the MQTT payload is defined. With a double click on it, it is possible to open a window for
editing it;
In the field "Mnemonic" a description of the topic is defined.

ETHERCAT ESI FILE:

By pressing the "EtherCAT ESI
The ESI file is used to configure the EtherCAT Master.
ADFweb.com S.r.l.
 MQTT Subscribe" window
File" button it is possible to save the ESI file for the EtherCAT side of the converter.
