HermanMiller Locale BRMS.FD Installation And Disassembly For Recycling Instructions

Parts Included:

Storage

Allen Wrench

Locale is among the trademarks of Herman Miller, Inc.

Illustrations and specifications are based on the latest product information available at the time of publication.

The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.

Locale

Panel Installation and Disassembly for Recycling

™

Panel

Instructions

4" 1/4-20

Fasteners (4)

Stud (4)

Part no. 1bdpwm rev B.

Table of Contents

Do you have a question about the Locale BRMS.FD and is the answer not in the manual?

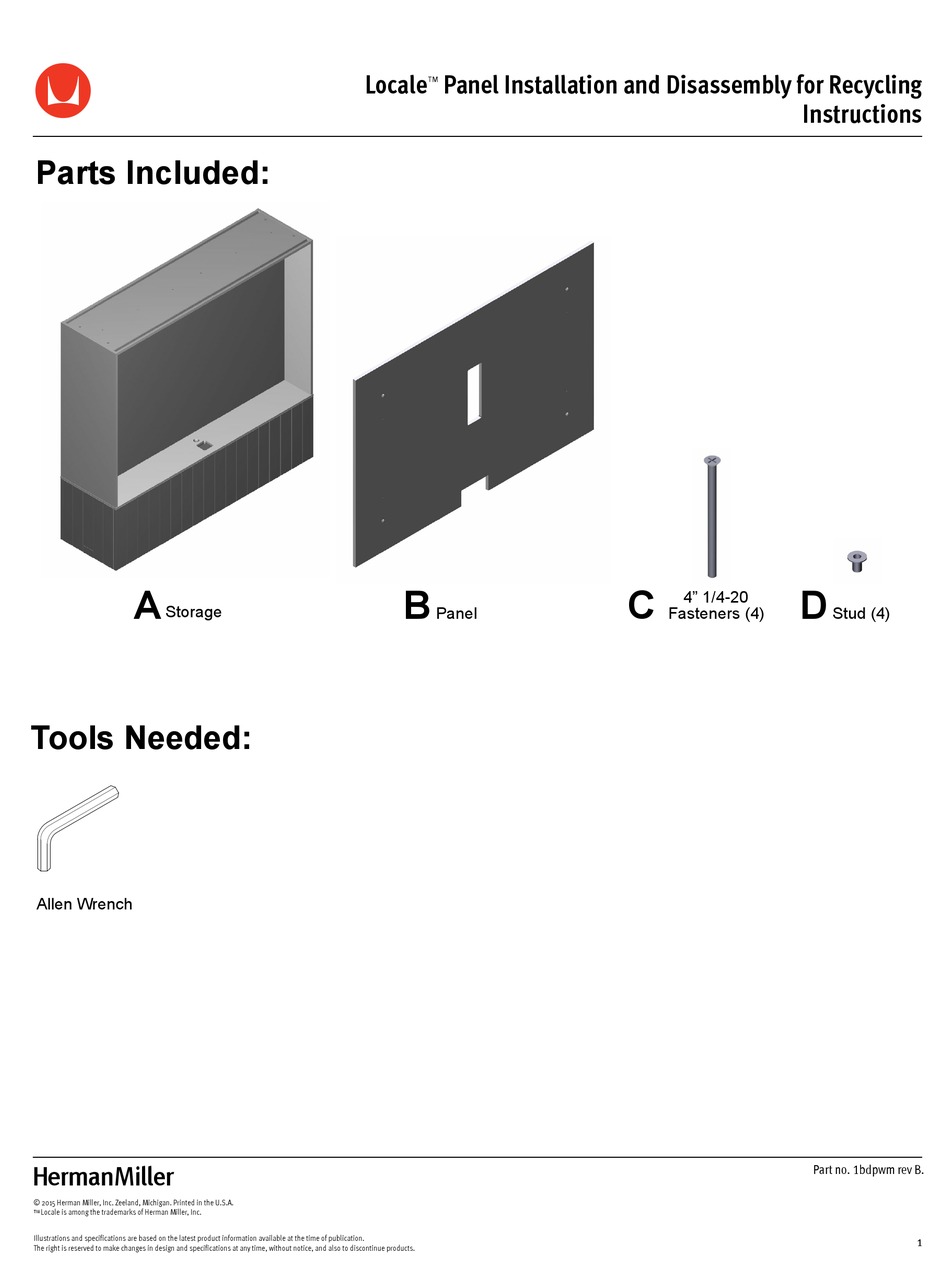

Page 1 Locale Panel Installation and Disassembly for Recycling ™ Instructions Parts Included: 4” 1/4-20 Storage Panel Fasteners (4) Stud (4) Tools Needed: Allen Wrench Part no. 1bdpwm rev B. © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Locale is among the trademarks of Herman Miller, Inc. Illustrations and specifications are based on the latest product information available at the time of publication.
Page 2 Steps: 1. Measure and mark pass through hole on uppercase. a. BRMS.FD i. 879.2 mm from the side of the upper case ii. 75.9 mm out from the back panel b. BRMS.PD i. 279.2 mm from the outer side panel ii.
Page 3 3. Install panel with vertical stiles to the inside of the unit. Guide Holes Guide Holes 4. Using a 5/16” bit, drill 4 holes through 5. Hammer the provided studs into the the center panel using through holes in new holes in the back of the original the new panel as a guide.
Page 4 6. Thread the 4” 1/4-20 fasteners through the guide holes in the display panel, into the studs. 7. Torque to 15 ft-lbs. Disassembly and Recycling: Materials Identification and Segregation: Where possible, plastic components are marked with ASTM recycling codes. Use these codes to identify material type for recycling.
