Media Mount - Centered
Installation and Disassembly for
Recycling Instructions

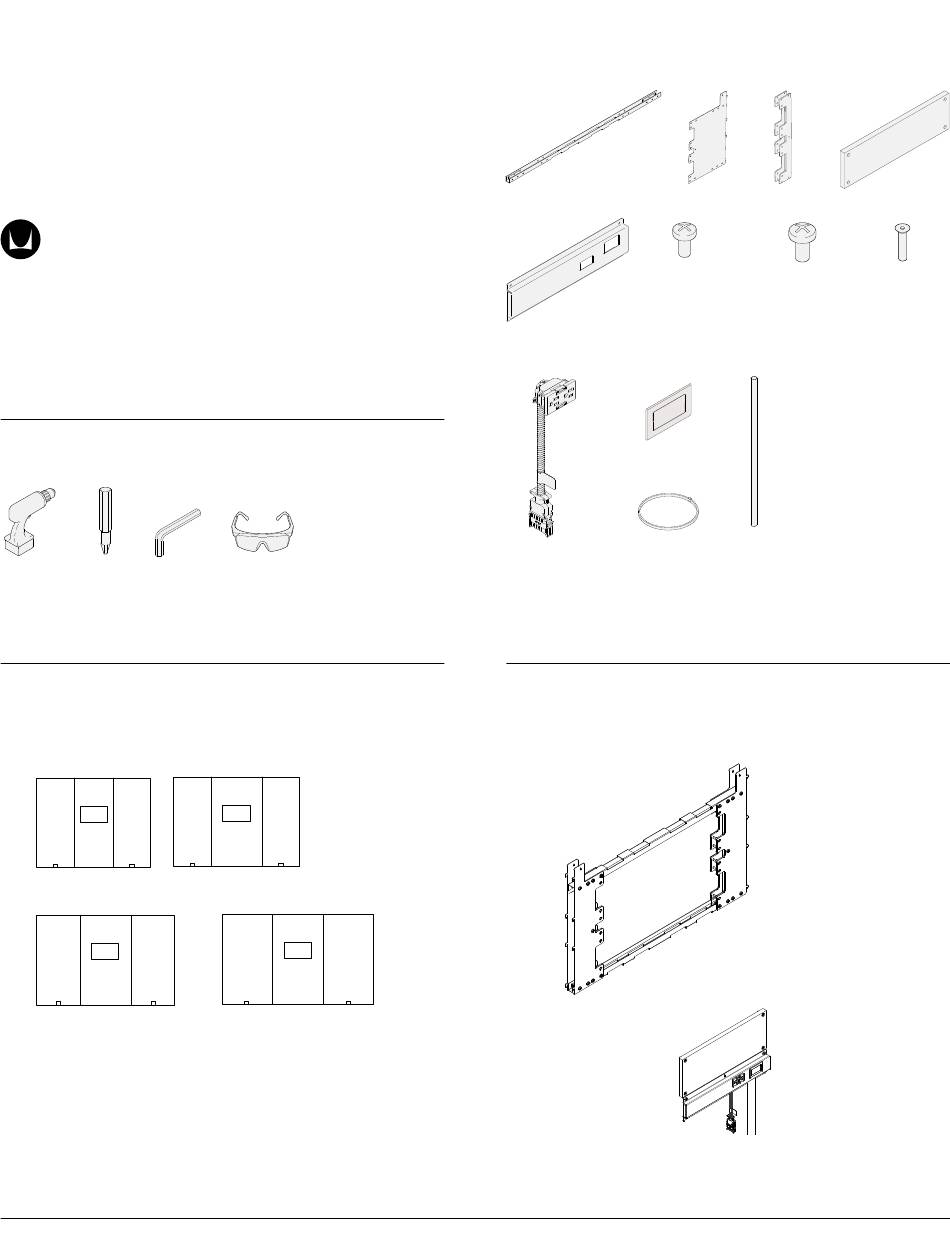

How to assemble your Overlay Media
Mount - Centered

Tools Required

Phillips Bit
Power Driver
M5 Allen Wrench
The centered media mount is used for the following
wall lengths:
9 ft
11 ft
HermanMiller
Safety Glasses
10 ft
12 ft

Parts Included

Side Rail (4)
Horizontal Rail (2)
M6 Pan Head Machine
Screw (44)
Electrical Housing
Bezel Trim
Zip Tie
Snap Duplex Assembly
A centered media mount is made of two subassemblies:
The centered media mount structure (MN915)
The centered media mounting kit (MN910)
Structure
1BN38L rev C
1
Stile (2)
Media Mount Board
M8 x 40 Socket
M8 Pan Head Machine
Head Countersink
Screw (4)
Machine Screw (4)
Wire Management
Wrap
Mounting Kit
