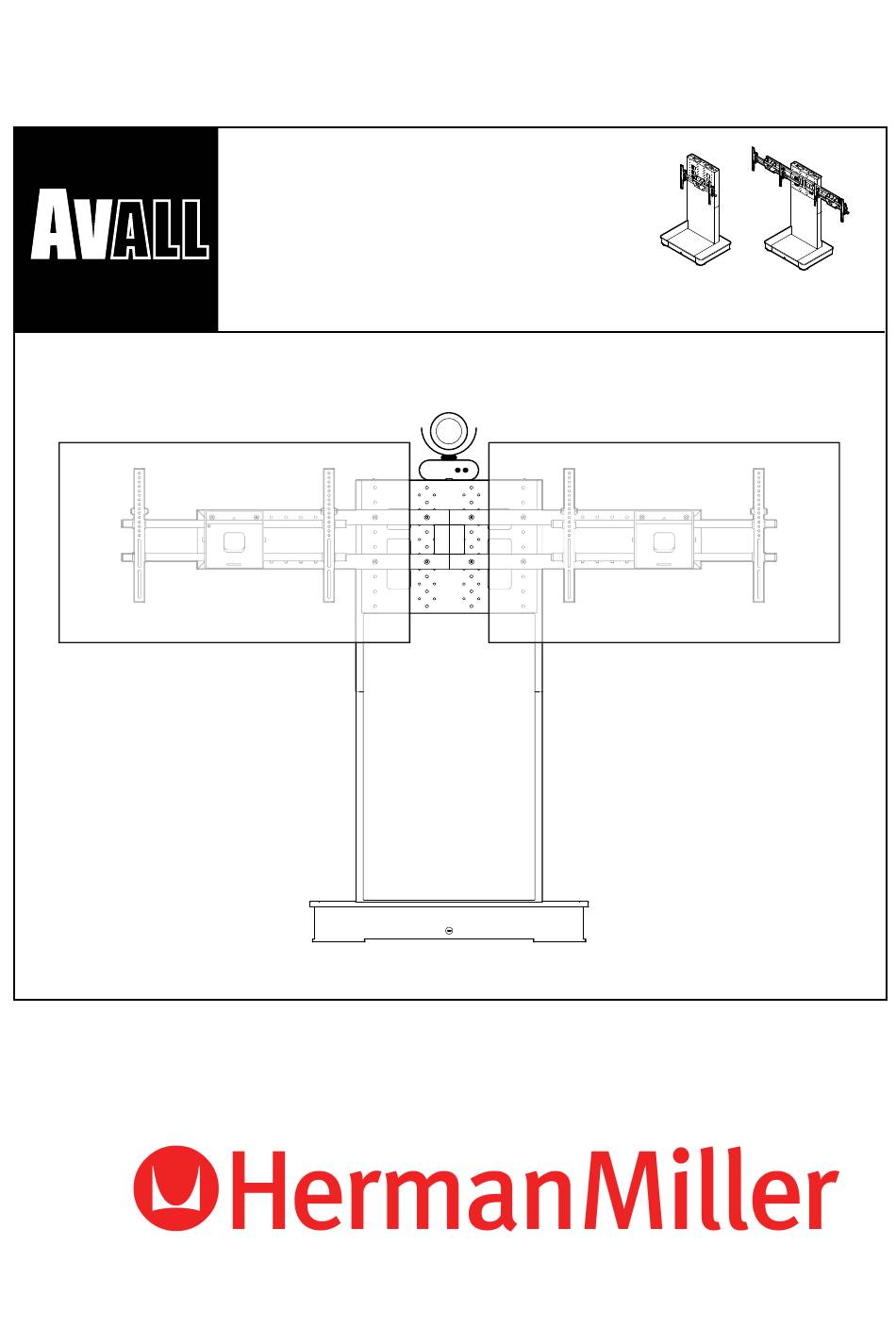

- Page 1 Installation instructions for audio visual stand AVALL-INST-D MAR 2009 www.colebrookbossonsaunders.com...
-
Page 2: Wall Mounted
AVALL DIAGRAM WITH ALL COMPONENTS AVS/002/GA10 AVM/001/B AVM/001/B AVM/001/B AVS/002/GA14 Single screen mount Camera mount Double screen mount AVS/002/GA03 AVS/002/GA04 AVS/002/GA02 Rear panel Column Front panel-plain Front panel-perforated AVS/002/GA01 AVS/002/GA12 AVS/002/GA11 AVS/002/GA15 AVS/002/GA07 AVS/002/GA08 Shelf Adjustable feet Castors Base Wall mount *... - Page 3 SOME IMPORTANT PRECAUTIONS BALANCE LEVEL AVALL-INST-D MAR 2009...
- Page 4 IMPORTANT NOTE Beware of trapping fingers when closing base cover. Internal Equipment Space IMPORTANT NOTE Apply brakes at all times (Unless Avall is being moved) 380 mm 14” 920 mm 36 ¼” 110 mm 4 ⅜” 100 mm 3”...
-
Page 5: Release Cover
Fit adjustable feet to base Fit castors to base If AVALL is to be wall mounted see instruction in wall-mount kit. IMPORTANT NOTE WARNING NOTE Braked castors fitted to rear of base. Release cover AVALL-INST-D MAR 2009... -
Page 6: Remove Cover
Remove cover UNLOCK Set column supports IMPORTANT NOTE DO NOT FULLY TIGHTEN Fit lower columns AVALL-INST-D MAR 2009... -
Page 7: Optional Accessory
Fix lower columns TIGHTEN Install accessory rail min 150 mm TIGHTEN OPTIONAL ACCESSORY AVS/002/GA15 If installing Avall Shelf do so at this stage. See separate shelf instructions. Install column connectors UNLOCK AVALL-INST-D MAR 2009... - Page 8 Fix column connectors TIGHTEN Install & fix upper column TIGHTEN Tighten column fixings IMPORTANT NOTE PLEASE TIGHTEN SECURELY AVALL-INST-D MAR 2009...
-
Page 9: Install Front Panel
TO SUIT ACCESS AROUND INTERNAL EQUIPMENT Install front panel FOR SINGLE SCREEN MOUNT GO TO STEP FOR DOUBLE SCREEN MOUNT GO TO STEP OPTIONAL ACCESSORY AVS/002/GA14 If installing Camera Mount do so at this stage. See separate Camera Mount instructions. AVALL-INST-D MAR 2009... - Page 10 Fix AVM on AVALL IMPORTANT NOTE PLEASE SEE INSTRUCTIONS AVM/001 PLASMA/LCD SCREEN MOUNT IMPORTANT NOTE ALWAYS USE ALL 4 FIXINGS 50kg/110 lb Heavy load Mount monitor 2 people required to mount screen AVALL-INST-D MAR 2009...
- Page 11 Fix double AVM on AVALL IMPORTANT NOTE PLEASE SEE INSTRUCTIONS AVM/001 PLASMA/LCD SCREEN MOUNT IMPORTANT NOTE ALWAYS USE ALL 8 FIXINGS IMPORTANT NOTE ALWAYS USE ALL 8 FIXINGS 50kg/110 lb 50kg/110 lb WARNING Heavy load Support stand until Mount monitors...
- Page 12 Re-fit the base cover LOCK Install lock plate Assemble back panel AVALL-INST-D MAR 2009...
- Page 13 Fit lock to back panel Install back panel IMPORTANT NOTE Key must be inserted in lock to close back panel Fine adjustment of lock panel USEFUL TIP If necessary, adjust position of lock plate to ensure correct latching of lock AVALL-INST-D MAR 2009...
- Page 14 WARNING • Correct installation is essential to safe and reliable operation of the AVALL product and falls outside the scope of responsibility of Colebrook Bosson Saunders. Please follow assembly instructions carefully. • Do not use this product for any purpose other than that for which it was designed.
