Y

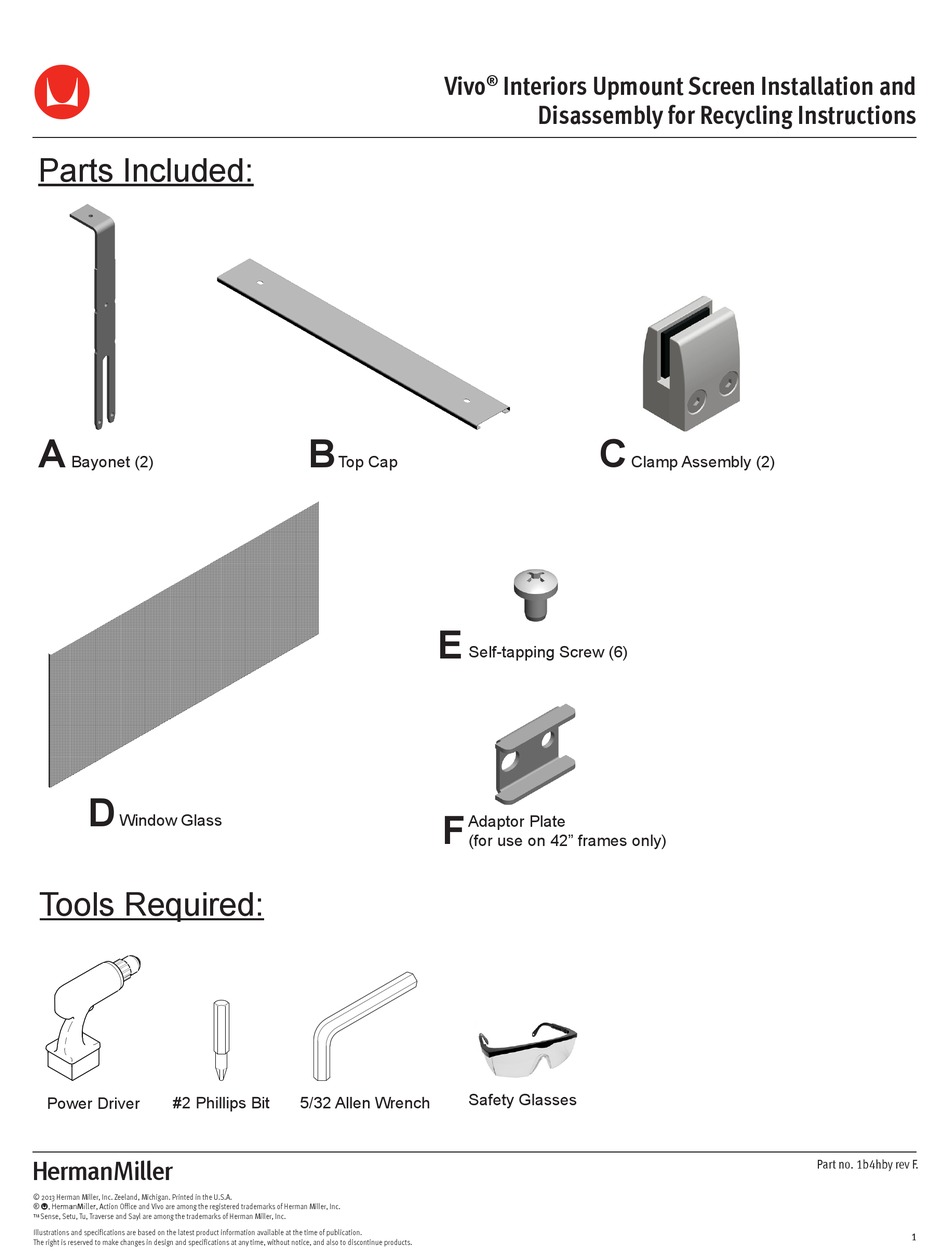

Parts Included:

A
Bayonet (2)
D
Window Glass

Tools Required:

Power Driver
#2 Phillips Bit
Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z, Action Office and Vivo are among the registered trademarks of Herman Miller, Inc.
Sense, Setu, Tu, Traverse and Sayl are among the trademarks of Herman Miller, Inc.
TM
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Vivo
B
Top Cap
E
Self-tapping Screw (6)
F
Adaptor Plate
(for use on 42" frames only)
Safety Glasses
5/32 Allen Wrench
Interiors Upmount Screen Installation and
®
C
Clamp Assembly (2)
Part no. 1b4hby rev F.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vivo Interiors Upmount Screen and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HermanMiller Vivo Interiors Upmount Screen

  • Page 1 Vivo Interiors Upmount Screen Installation and ® Disassembly for Recycling Instructions Parts Included: Bayonet (2) Top Cap Clamp Assembly (2) Self-tapping Screw (6) Window Glass Adaptor Plate (for use on 42” frames only) Tools Required: Safety Glasses Power Driver #2 Phillips Bit 5/32 Allen Wrench Part no.
  • Page 2 Assembly Instructions: Frame 1. Insert Bayonets (A) into top rail of 2. Secure Bayonets to Frame with 6 Frame. Self-tapping Screws (E). (42” high frames only) 3. When installing Screen onto a 42” Frame, Adaptors (F) are needed to fit into Window in Frame before installing Self-tapping Screws (E).
  • Page 3 Cladding 4. Install Cladding onto both sides of 5. Press Top Cap onto Frame. Frame. Clamp Half Clamp Half Self-tapping Phillips Head Screw Clamp Pad Clamp Half 6. Remove protective backing on Clamp 7. Position larger Clamp Halves onto Pads. Apply to Clamp Halves (C). Top Cap.
  • Page 4 8. Using a straight edge, align Clamp Halves. 10. Loosely assemble remaining parts 9. Tighten Self-tapping Phillips Head Screws. of Clamp. Do not let Clamp twist when tightening Screws. Hex Socket Screws 11. Set Windows Glass (D) into Clamp Assembly and center on the Frame. 12.
  • Page 5 Disassembly for Recycling: Materials Identification and Segregation: Where possible, plastic components are marked with ASTM recycling codes. Use these codes to identify material type for recycling. Non marked components should be treated as mixed plastic. Ferrous metals can be identified using a small magnet for recycling.
