2650-1081
If after completely reading these instructions you have questions regarding the operation or installation of your instrument(s),
INTRODUCTION
• The Playback Tach has the capability of recording up to 80 seconds of data.
This data is stored in memory even after power is shut off, and can be played back any number of times.
• Any Auto Meter Shift-Lite™, or Quick-Lite™ Shift-Lite can be used with this tach. Up to four different shift points can be used to activate the Shift-Lite.
• When a Shift-Lite is used, Auto Meter's unique Launch Lite™ feature gives a visual indication that the staging/launch
RPM is either AT, ABOVE or BELOW a user changeable set point.
• The number of ignition Pulses Per Revolution (PPR) of the engine can be set from .5 PPR to 6 PPR.

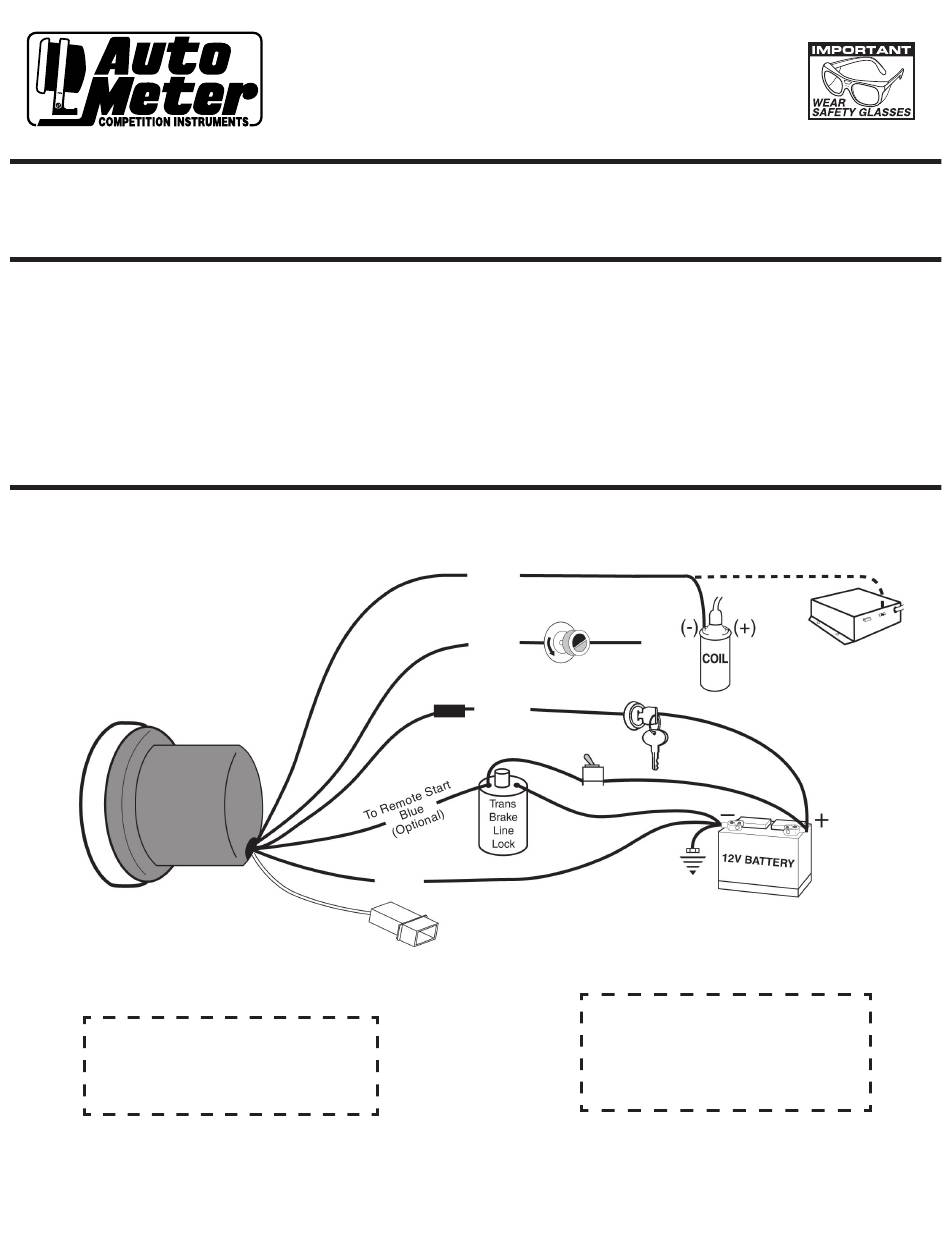

1. WIRING
(For Trans-Brake or Line-Lock Application)
CAUTION!!!
As a safety precaution the RED wire of this product should
be fused before connecting it to the positive (+) side of
the 12V DC battery. We recommend using a 4 Amp, 3AG
fast-acting type cartridge fuse (Littlefuse® #312 004 or an
equivalent) inline with the RED wire of our product.
INSTALLATION INSTRUCTIONS
5" Playback Tachometer
QUESTIONS
please contact Auto Meter Technical Service at 815-899-0801.
You may also email us at service@autometer.com.
Additional information can also be found at http://www.autometer.com/tech_faq.aspx
Black
To Shift-Lite
(Optional)
:
Green
White
Dash Lighting
Fuse
Red
(See caution
below)
Momentary
Switch
Solenoid
*
Warranty will be void if connected to coil when using
an aftermarket ignition box such as, but not limited to
products from the following manufacturers: MSD, Crane,
Jacobs, Mallory, Holley, Etc.. Prior to installation of your
tachometer, check with the ignition box manufacturer for
recommended tachometer signal location.
*
See autometer.com/tech_installation.aspx for specific
vehicle information.
*
or
See "Warning" below
Tach output on
Electronic ignition
Ignition
Switch
Good Engine
Ground
12V Battery
WARNING
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Auto Meter 2650-1081
Summary of Contents for Auto Meter 2650-1081
- Page 1 This data is stored in memory even after power is shut off, and can be played back any number of times. • Any Auto Meter Shift-Lite™, or Quick-Lite™ Shift-Lite can be used with this tach. Up to four different shift points can be used to activate the Shift-Lite.
- Page 2 2. WIRING (For Clutch Switch Application) See “Warning” below Green Tach output on Electronic ignition Fuse Ignition (See caution Switch below) Black Blue Good Engine Ground 12V Battery Arm/Clutch Switch To Shift-Lite CAUTION!!! WARNING (Optional) As a safety precaution the RED wire of this product should Warranty will be void if connected to coil when using be fused before connecting it to the positive (+) side of an aftermarket ignition box such as, but not limited to...
- Page 3 4. CONFIGURATION The tachometer is configured at the factory for 4 PPR. To change the PPR, follow the steps below: 1. With no power applied to the tach, press and hold the Shift-Set (Button C) button. 2. Apply power to the tach by turning the ignition key to the “Accessory” or “On” position. Do not start the engine! The pointer will move to a position on the dial which indicates the default configuration of 4 PPR.
- Page 4 Auto Meter Products, Inc. warrants to the consumer that this product will be free from defects in material and workmanship for a period of twelve (12) months from date of the original purchase. Products that fall within this 12 month warranty period will be repaired or replaced at Auto Meter’s option to the consumer, when it is determined by Auto Meter Products, Inc. that the product failed due to defects in material or workmanship.
