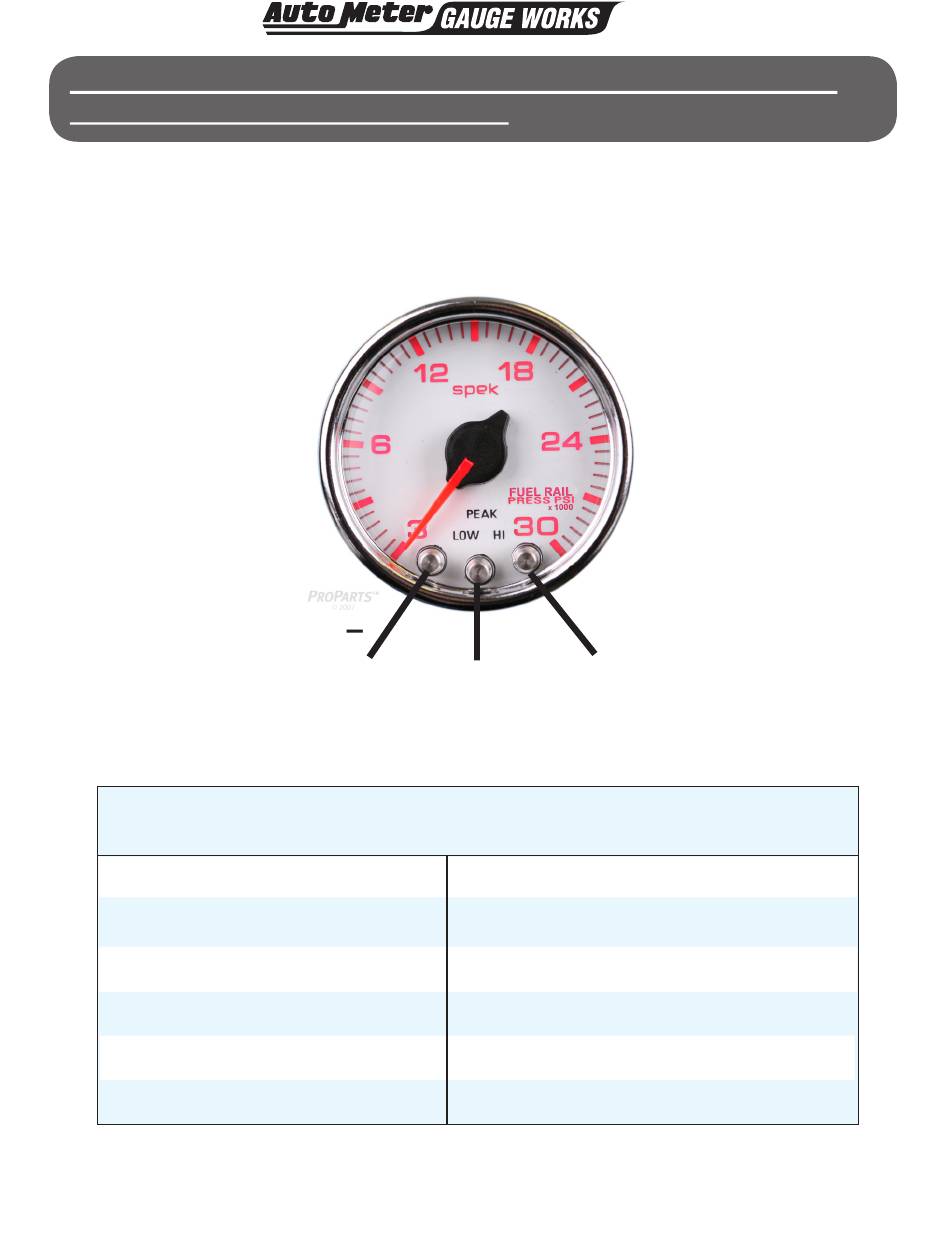

Programming Instructions for : Pressure

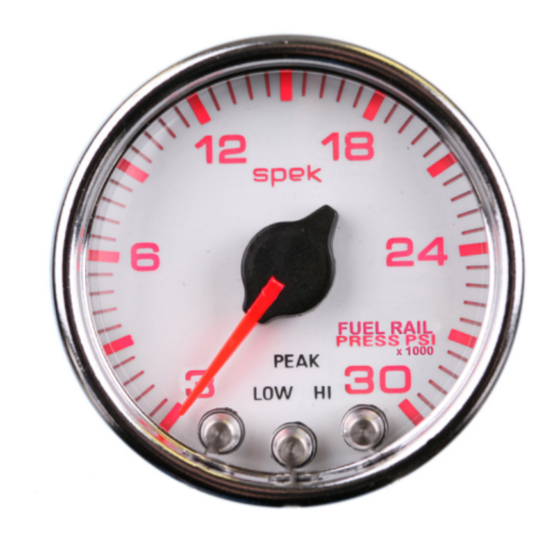

Spek Pro Fuel Rail Pressure Gauge
Refer to the "Flow Chart Programming Instructions" while reviewing this guide.
Gauge is field programmable by the operator while installed in the vehicle. This programming is
accessed by pressing the control buttons located on the face or the meter dial,
"Down" and "Up" buttons move the pointer to a desired setting or controls the faceplate illumination.
MAIN MENU
PRESS "MODE" BUTTON TO PROGRAM LEVEL. THEN PRESS BOTH CENTER AND
LEFT OR CENTER AND RIGHT BUTTONS FOR FIVE SECONDS TO ENTER SUBMENU
NORMAL/DIAL BRIGHTNESS
PEAK PLAYBACK
HIGH RED-LINE SETTING
LOW THRESHOLD SETTING
COLOR
DIAL BRIGHTNESS
DOWN
MODE
SCHEME
+
UP
SUBMENU
OPTION: CALIBRATE GAUGE TO ENVIROMENT
OPTION:RESTORE FACTORY DEFAULT
OPTION:DEMO MODE
OPTION:ADJUST POINTER BRIGHTNESS
2
"
1/16
ONE AT A
TIME. The
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Auto Meter Spek Pro
Summary of Contents for Auto Meter Spek Pro
- Page 1 Programming Instructions for : Pressure ” 1/16 Spek Pro Fuel Rail Pressure Gauge Refer to the “Flow Chart Programming Instructions” while reviewing this guide. Gauge is field programmable by the operator while installed in the vehicle. This programming is ONE AT A TIME.
- Page 2 Programming Instructions for : Pressure ” Spek Pro Fuel Rail Pressure Gauge 1/16 PROGRAMMING STARTS IN MAIN MENU MAIN MENU PRESS PROGRAM BUTTON ONE (1) AT A TIME IN THE MODE. NORMAL/DIAL BRIGHTNESS: On power up, the meter usually starts operation in NORMAL/DIAL BRIGHTNESS.
- Page 3 Programming Instructions for : Pressure ” Spek Pro Fuel Rail Pressure Gauge 1/16 SUBMENU SUBMENU IS ACCESSED THROUGH THE MAIN MENU. FIRST GO TO THE APPROPRIATE LEVEL OF MAIN MENU AND THEN FOLLOW THE INSTRUCTIONS IN THE PROGRAMMING FLOW DIAGRAM TO ENTER THE SUBMENU.
-
Page 4: Programming Information
Programming Instructions for : Pressure ” Spek Pro Fuel Rail Pressure Gauge 1/16 GAUGE TYPE ALERT FLASHES “RED” HIGH TEMPERATURE PRESSURE HIGH TACHOMETER HIGH PYROMETER NITROUS OXIDE PRESSURE HIGH BOOST PRESSURE AIR/FUEL VOLTMETER PROGRAMMING INFORMATION: • TO RESET THE PROGRAM TO NORMAL OPERATION FROM ANY MODE PRESS THE “UP”... -
Page 7: Installation Instructions
Wiring Installation Instructions for : Pressure Gauge ” Spek Pro Fuel Rail Pressure Gauge 1/16 SPEK PRO™ FUEL RAIL PRESSURE GAUGE PACKAGE CONTAINS: • Pressure Gauge • Pressure Sender • Wiring Harness • Mounting Cup • (1) Neoprene EDPM Grommet... -
Page 8: Troubleshooting
Wiring Installation Instructions for : Pressure ” Spek Pro Fuel Rail Pressure Gauge 1/16 5 INSTALL GROMMET AND MOUNTING CUP ON THE WIRING HARNESS AS SHOWN IN DIAGRAM GROMMET IS FOR THE HOLE IN THE FIREWALL 6 DO NOT CONNECT WIRING HARNESS TO THE GAUGE UNTIL THE OTHER CONNECTIONS HAVE BEEN MADE AND TESTED. - Page 9 Wiring Installation Instructions for : Pressure ” Spek Pro Fuel Rail Pressure Gauge 1/16 DIAGRAM 1 GAUGE Black-Chassis Ground Pin 2 Fuel Pressure Input/Green- Wire Pin 3 Ground/ Black Relay can use Dedenbear HPR relay or equivalent. White-12V Dash Lighting...
- Page 10 Wiring Installation Instructions for : Pressure ” Spek Pro Fuel Rail Pressure Gauge 1/16 DIAGRAM 2 PIN 12 Ground/Black PIN 8 +12 VDC/Red PIN 6 Dimmer/White PIN 5 1.9 Amp Fet Output/ Purple PIN 4 PIN 3 Ground/Black (Sensor Ground)
- Page 11 Wiring Installation Instructions for : Pressure ” Spek Pro Fuel Rail Pressure Gauge 1/16 THERE ARE THREE SECTIONS TO THIS MANUAL: WIRING INSTRUCTIONS, PROGRAMMING INSTRUCTIONS AND FLOW CHART PROGRAMMING INSTRUCTIONS. PLEASE READ EACH SECTION CAREFULLY BEFORE ATTEMPTING TO INSTALL OR OPERATE THIS PRODUCT.
- Page 12 Wiring Installation Instructions for : Pressure ” Spek Pro Professional Racing Gauge 1/16...
