Temperature
Sensor
Note The DC Voltage Sensor input wiring table is
provided above, but connection to this connector should
only be made using the optional DC Voltage sensor
cable. Consult the factory for details.
The NET-PATH provides one internal temperature sensor and a connector for an
optional external temperature sensor. The temperature range for both are from -10° to
190° F, with an accuracy and resolution of +/- 1° F. User-specified temperature deltas
determine when change in temperature events are generated. The NET-PATH can be
programmed to detect specific temperature values to determine reportable
temperature events. Temperatures can be reported in Fahrenheit, Celsius, and Kelvin.

Internal Temperature Sensor

The internal temperature sensor is positioned near the UPS battery charging circuit
and is used to detect excessive charging temperatures that may occur during abnormal
charging conditions. The battery charger is turned off until the internal temperature
returns to an acceptable level. You can program your NET-PATH to report specific
internal temperature events based on database parameters, or generate an event when
the battery charger turns off or on.

External Temperature Sensor

The optional external temperature sensor is available to monitor the temperature
within the facility where the NET-PATH is installed. The database can be
programmed to look for specific temperature values and take action, such as report
events to the maintenance center or to activate a fan via a power control device.
The external temperature sensor, shown below, connects to the NET-PATH using a
cable terminated with RJ45 male connectors at both ends. The sensor has two input
jacks, either of which can be used.

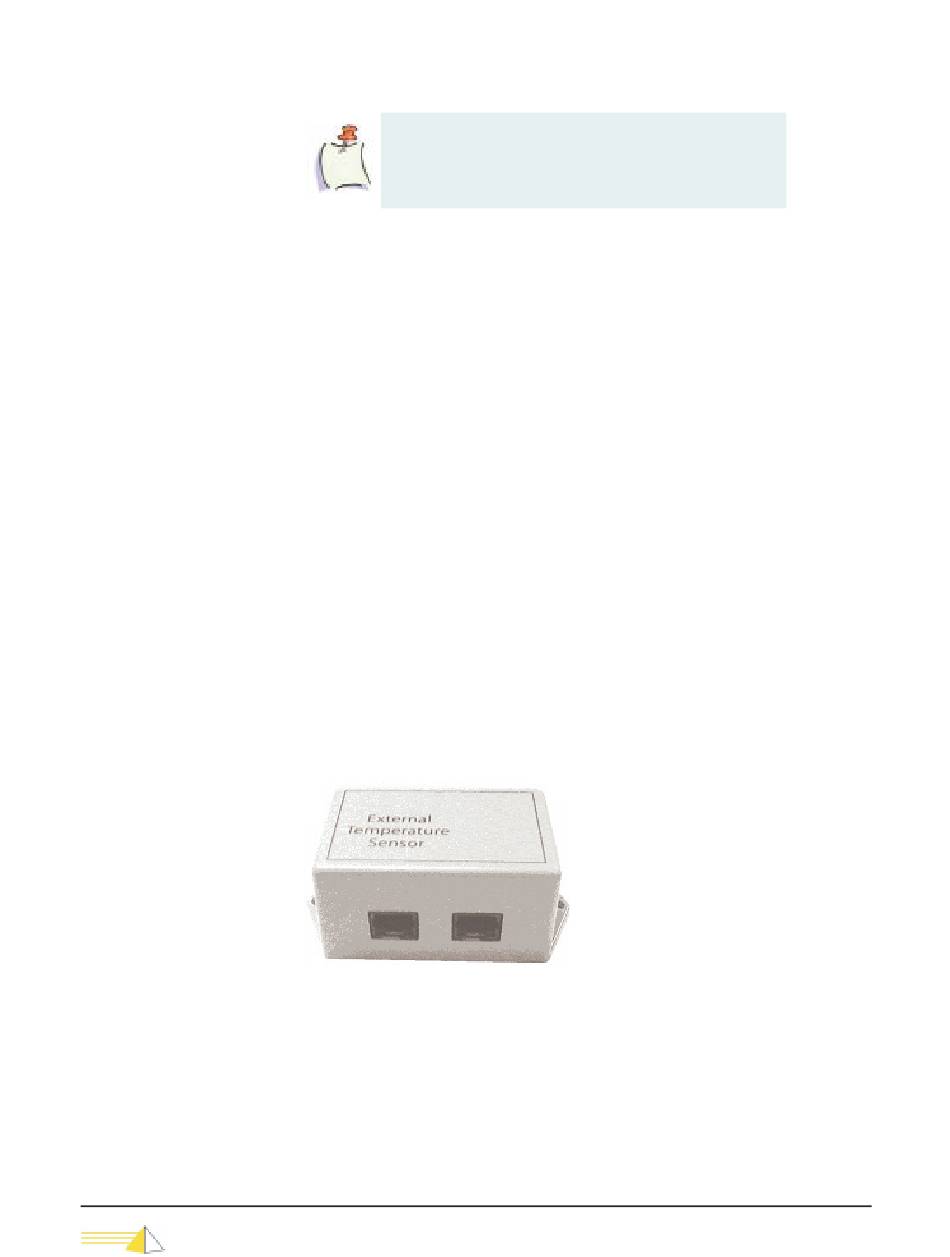

Figure 2-17 NET-PATH External Temperature Sensor
NET-PATH Installation and Operation Guide
Page 2-13
