(3) Secure mounting cord stayhook and terminate
inside wire or cable and mounting cord.
(4) Remove plastic mat retainer frame and mat
from telephone set.
(5)
Position panel on lower edge of apparatus
box with top tilted outward. Connect mounting
cord plug to connector on set panel.
mounting cord to avoid interference with telephone
set components. Align panel of set with mounting
brackets on box and secure with four mounting
screws furnished with set.
(6) Position mat on panel and secure using the
mat retainer frame.
projecting tabs may be adjusted to insure a snug
fit.
Page 2
SSP 502·706-100-i0 1_1970-03-02.j
pg Scanned by Frank Harre((, (Cowboy Frank) Castle Rock, Colorado Jan 31,2012 22:24:56
P-89C261 FOR D-180071 OR
P-89C260 FOR D-180072
KIT OF PARTS
MAT RETAINER FRAME

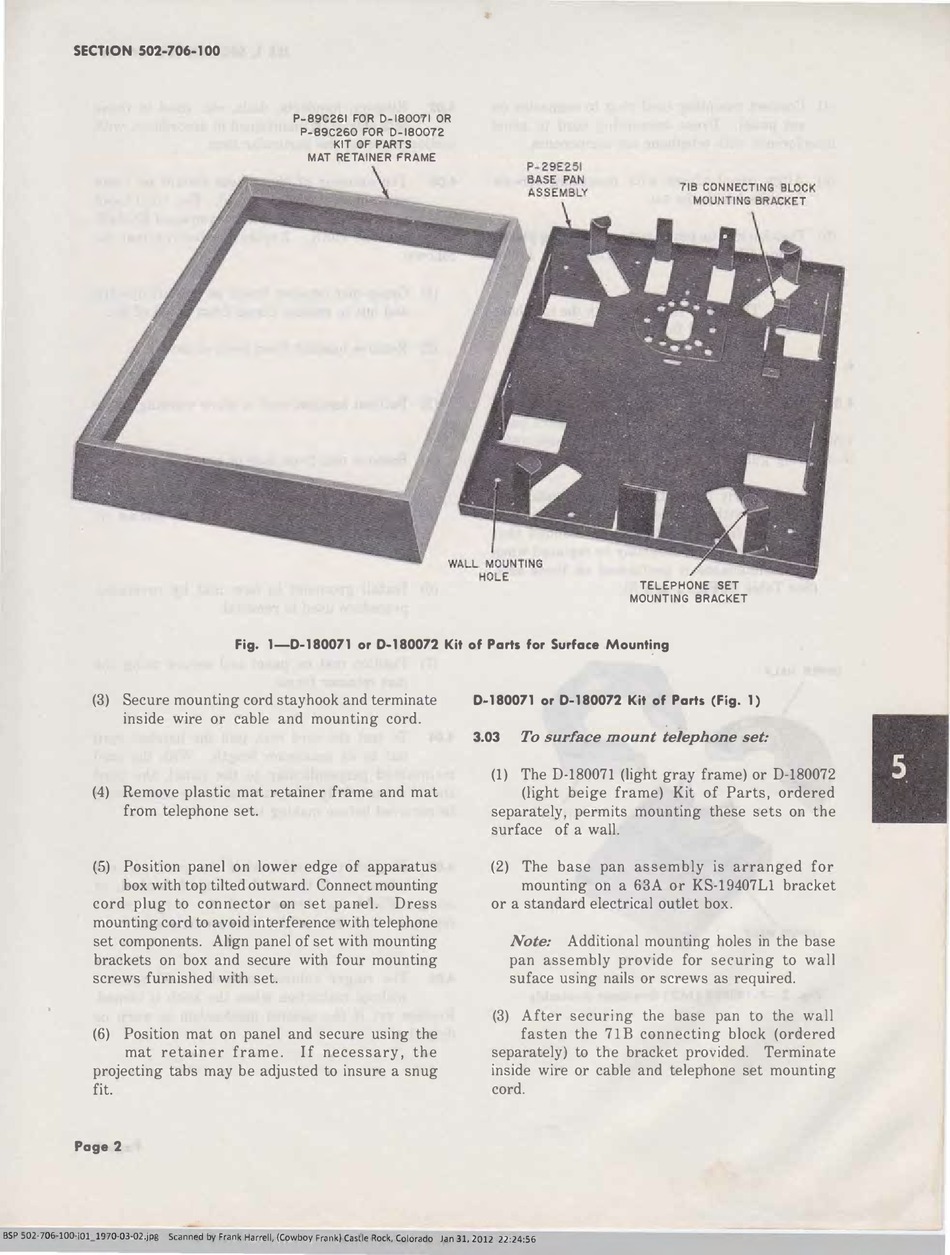

Fig. 1-D-180071 or D-180072 Kit of Parts for Surface Mounti
Dress
If necessary, the
T ELEPHONE SET
MOUNTING BRACKET
D-180071 or D-180072 Kit of Parts (Fig. 1)
3.03 To surface mount telephone set:
(1) The D-180071 (light gray frame) or D-180072
(light beige frame) Kit of Parts, ordered
separately, permits mounting these sets on the
surface of a wall.
(2) The base pan assembly is arranged for
mounting on a 63A or KS-19407L1 bracket
or a standard electrical outlet box.
Additional mounting holes in the base
Note:
pan assembly provide for securing to wall
suface using nails or screws as required.
(3) After securing the base pan to the wall
fasten the 71B connecting block (ordered
separately) to the bracket provided.
inside wire or cable and telephone set mounting
cord.
ng
.
Terminate
