GE Profile JB910SLSS Dimensions And Installation Information

30" free-standing cleandesign electric range
Hide thumbs Also See for Profile JB910SLSS:

Advertisement

JB910SL
GE Profile
30" Free-Standing CleanDesign
Dimensions and Installation Information (in inches)
KW Rating
240V
13.7
208V
10.3
Breaker Size
40 Amps
Note: Check local codes for required breaker size.
Effective January 1, 1996, the National Electrical Code requires
that new construction (not existing) utilize a 4-conductor
connection to an electric range.
Receptacle Locations: Locally approved flexible service cord
or conduit must be used because terminals are not accessible

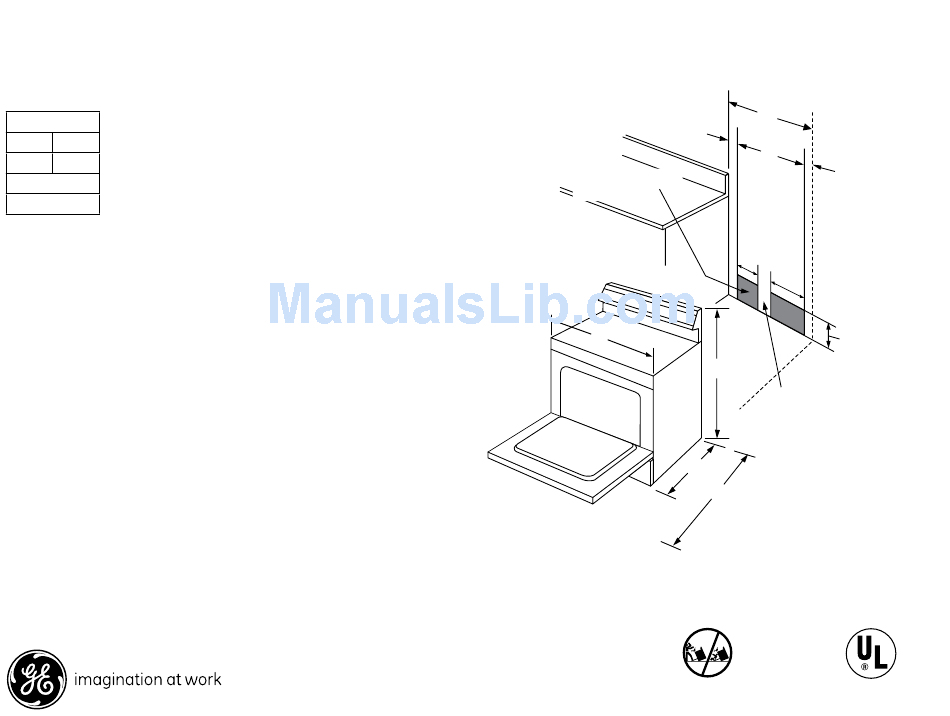

after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing
from adjacent walls below countertops. To reduce possibility
of scorching walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended, high-heat,
no-load heating element operation.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
For answers to your Monogram,
GE Profile
®
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
or
service,
30_install_fse_drawer.eps
Electric Range
Acceptable electrical
outlet area
30
2-1/2
25
7
A*
B*
On models with baking or warming
drawers, electrical outlet must not
be in this area.
*Dimension from wall to front of closed
25-3/8*
oven door handle is 27-3/8 on models
JB968/910/900 and 27-3/4 on models
47-5/8
JBP89/84/81.
*A is 29-7/8 on models JB968/910/900
*B is 46-7/8 on models JBP89/84/81
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 4/06
2-1/2
14-1/2
7-1/2
and JBP89/84/81
and 46-1/2 on models JB968/910/900
Listed by
Underwriters
Laboratories
221092
