DECATHLON
SUPER

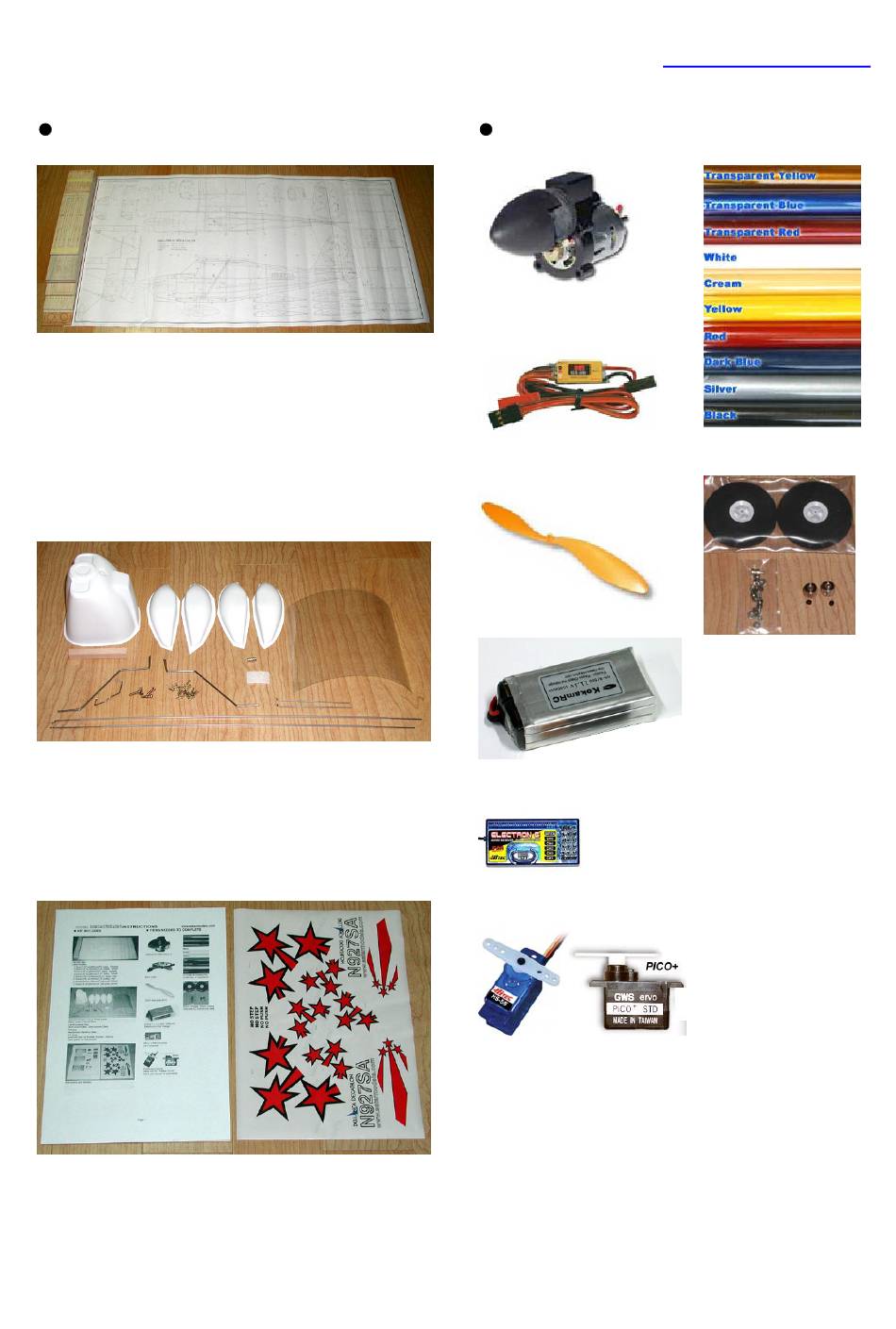

KIT INCLUDES
Full size plan
Lasercut parts
1.5mm(1/16")xL600mm(24") balsa : 1sheet
1.5mm(1/16")xL500mm(20") balsa : 2sheets
1.5mm(1/16")xL430mm(17") balsa : 2sheets
3.0mm(1/8")xL560mm(22.4") balsa : 1sheet
3.0mm(1/8")xL465mm(18.6") balsa : 6sheets
3.0mm(1/8")xL370mm(14.8") balsa : 1sheet
5.0mm(3/16") xL520mm(20.5") balsa stick : 2ea
5.0mm(3/16") xL410mm(16.1") balsa wing jig : 1ea
1.8mm(5/64")xL150mm(6") plywood :1sheet
3.0mm(1/8")xL600mm(24") plywood :2sheets
Vacuum formed Cowl & Wheel pants.
Motor mount 10x10x75mm
Landing gears(2ea)
3mm screws(4ea), 2mm screws(20ea)
Tail gear
Neodymium Manetics (4ea)
CA hinge
Pushrods(4ea) for Rudder, Elevator, Ailerons
Clear plastic for Windshield
Instructions and Stickers.
INSTRUCTIONS
Page 1
ITEMS NEEDED TO COMPLETE
GWS EPS-400C-DS(3:1) or
BL motor (4~5.33:1 geared,
10~13A)
ESC (15A)
GWS slow prop 9070
Li-Poly 11.1V 1500~1800mAh
Battery w/Li-Poly charger
Micro or Mini Receiver
(4~6 channel)
4 submicro Servos
(Hitec HS-55 / Futaba S3108 /
GWS pico servos, or equivalant)
& servo extension cords.
www.estarmodels.com
2~3 rolls of covering film.
(Solite film, or equivalant)
50mm Wheels, Wheel Collars
(4ea) and EZ connectors (4ea)
