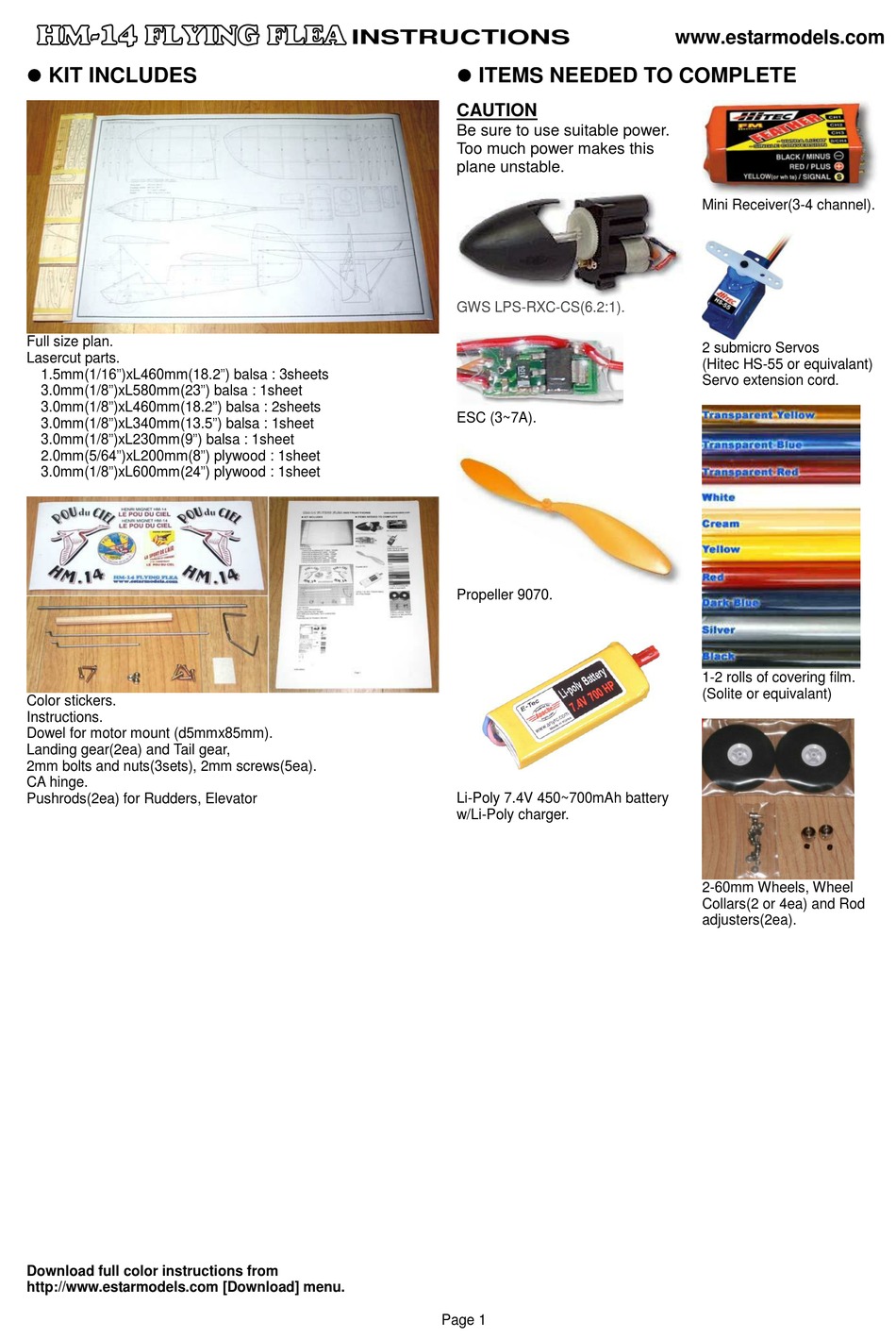

HM-14 FLYING FLEA
 KIT INCLUDES
Full size plan.
Lasercut parts.
1.5mm(1/16")xL460mm(18.2") balsa : 3sheets
3.0mm(1/8")xL580mm(23") balsa : 1sheet
3.0mm(1/8")xL460mm(18.2") balsa : 2sheets
3.0mm(1/8")xL340mm(13.5") balsa : 1sheet
3.0mm(1/8")xL230mm(9") balsa : 1sheet
2.0mm(5/64")xL200mm(8") plywood : 1sheet
3.0mm(1/8")xL600mm(24") plywood : 1sheet
Color stickers.
Instructions.
Dowel for motor mount (d5mmx85mm).
Landing gear(2ea) and Tail gear,
2mm bolts and nuts(3sets), 2mm screws(5ea).
CA hinge.
Pushrods(2ea) for Rudders, Elevator
Download full color instructions from
http://www.estarmodels.com [Download] menu.
INSTRUCTIONS
 ITEMS NEEDED TO COMPLETE
CAUTION
Be sure to use suitable power.
Too much power makes this
plane unstable.
GWS LPS-RXC-CS(6.2:1).
ESC (3~7A).
Propeller 9070.
Li-Poly 7.4V 450~700mAh battery
w/Li-Poly charger.
Page 1
www.estarmodels.com
Mini Receiver(3-4 channel).
2 submicro Servos
(Hitec HS-55 or equivalant)
Servo extension cord.
1-2 rolls of covering film.
(Solite or equivalant)
2-60mm Wheels, Wheel
Collars(2 or 4ea) and Rod
adjusters(2ea).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HM-14 FLYING FLEA and is the answer not in the manual?

Questions and answers

Related Manuals for Estarmodels HM-14 FLYING FLEA

Summary of Contents for Estarmodels HM-14 FLYING FLEA

  • Page 1 HM-14 FLYING FLEA INSTRUCTIONS www.estarmodels.com  KIT INCLUDES  ITEMS NEEDED TO COMPLETE CAUTION Be sure to use suitable power. Too much power makes this plane unstable. Mini Receiver(3-4 channel). GWS LPS-RXC-CS(6.2:1). Full size plan. 2 submicro Servos Lasercut parts.
  • Page 2  PREPARATION  Remove parts from laser-cut panel and group as shown above.  RUDDER 3. Remove rudder from the plan and apply thick CA glue at each joints for reinforcing. Carefully sand surfaces.  REAR WING (ELEVATOR) 1. Lay the waxed paper or PVC film over the plan. 1.
  • Page 3  FORE WING 6. Remove wing from the plan and apply thick CA glue at 1. Glue right, mid, left spars(W1a-W1b, W3a-W3b) with each joints for reinforcing. thick CA. Carefully sand surfaces.  FUSELAGE 2. Glue plywood spars(W2) to the W1 with thick CA. 1.
  • Page 4 5. Glue top sheet(F15) with thick CA. 10. Glue bottom sheet(F18,F19) with thick CA. 6. Insert and glue fore deck longerons(F12). 11. Glue plywood trays(F29) for rudder servo. 7. Cover fore deck(F20) with thick CA. 12. Carefully sand surfaces.  COVERING 8.
  • Page 5  EQUIPMENT INSTALLATION 5. Insert and glue motor mount(F25-F27), landing gear guide(F21), strut bracket(F23-F24), rear wing holder(F22) and rigging bracket(F28) to the fuselage. 1. Assemble and glue motor mount (F25-F27). Apply thin CA to the bracket and holder for reinforcing. Apply thick CA glue at each joints for reinforcing.
  • Page 6 13. Install rudder servo. 9. Assemble plywood tail wheel. Apply thin CA to the wheel for reinforcing. 14. Connect pushrod to the rudder horn, and then, attach rudder to the fuselage by gluing hinges with small amount of thin CA. 10.
  • Page 7 17. Install motor and gearbox, drill and fix screw to the dowel. 21. Attach wing strut(W18) with screws. 18. Insert landing gear and hold with rubber bands. 22. Rig threads as shown above. 19. Fix wheels with wheel collars. Connect ESC and receiver. 23.
