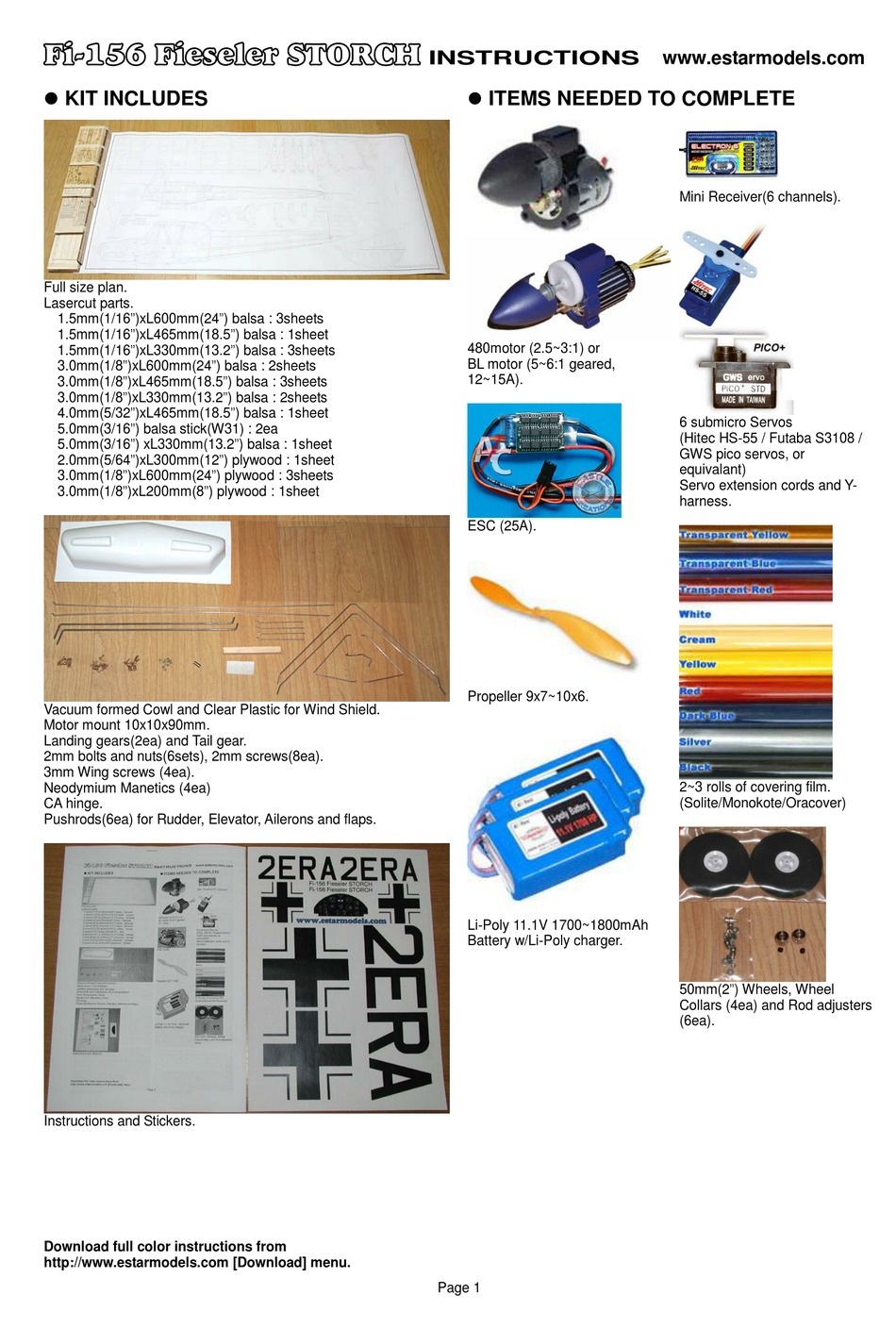

Fi-156 Fieseler STORCH
 KIT INCLUDES
Full size plan.
Lasercut parts.
1.5mm(1/16")xL600mm(24") balsa : 3sheets
1.5mm(1/16")xL465mm(18.5") balsa : 1sheet
1.5mm(1/16")xL330mm(13.2") balsa : 3sheets
3.0mm(1/8")xL600mm(24") balsa : 2sheets
3.0mm(1/8")xL465mm(18.5") balsa : 3sheets
3.0mm(1/8")xL330mm(13.2") balsa : 2sheets
4.0mm(5/32")xL465mm(18.5") balsa : 1sheet
5.0mm(3/16") balsa stick(W31) : 2ea
5.0mm(3/16") xL330mm(13.2") balsa : 1sheet
2.0mm(5/64")xL300mm(12") plywood : 1sheet
3.0mm(1/8")xL600mm(24") plywood : 3sheets
3.0mm(1/8")xL200mm(8") plywood : 1sheet
Vacuum formed Cowl and Clear Plastic for Wind Shield.
Motor mount 10x10x90mm.
Landing gears(2ea) and Tail gear.
2mm bolts and nuts(6sets), 2mm screws(8ea).
3mm Wing screws (4ea).
Neodymium Manetics (4ea)
CA hinge.
Pushrods(6ea) for Rudder, Elevator, Ailerons and flaps.
Instructions and Stickers.
Download full color instructions from
http://www.estarmodels.com [Download] menu.
INSTRUCTIONS
 ITEMS NEEDED TO COMPLETE
480motor (2.5~3:1) or
BL motor (5~6:1 geared,
12~15A).
ESC (25A).
Propeller 9x7~10x6.
Li-Poly 11.1V 1700~1800mAh
Battery w/Li-Poly charger.
Page 1
www.estarmodels.com
Mini Receiver(6 channels).
6 submicro Servos
(Hitec HS-55 / Futaba S3108 /
GWS pico servos, or
equivalant)
Servo extension cords and Y-
harness.
2~3 rolls of covering film.
(Solite/Monokote/Oracover)
50mm(2") Wheels, Wheel
Collars (4ea) and Rod adjusters
(6ea).

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fi-156 Fieseler STORCH I and is the answer not in the manual?

Questions and answers

Related Manuals for Estarmodels Fi-156 Fieseler STORCH I

Summary of Contents for Estarmodels Fi-156 Fieseler STORCH I

  • Page 1 Neodymium Manetics (4ea) (Solite/Monokote/Oracover) CA hinge. Pushrods(6ea) for Rudder, Elevator, Ailerons and flaps. Li-Poly 11.1V 1700~1800mAh Battery w/Li-Poly charger. 50mm(2”) Wheels, Wheel Collars (4ea) and Rod adjusters (6ea). Instructions and Stickers. Download full color instructions from http://www.estarmodels.com [Download] menu. Page 1...

  • Page 2: Horizontal Tail

     PREPARATION  HORIZONTAL TAIL  Remove parts from laser-cut panel and group as shown 1. Pin the stabilizer parts (H1-H10) on the plan and glue above. together with thick CA.  VERTICAL TAIL 2. Pin the left elevator parts(E1L, E2L, E3-E13) on the plan and glue together with thick CA.
  • Page 3 8. Glue top sheets(W21-W23, W27) together with thick CA. 2. Assemble and glue plywood wing joiners(W5), plywood lower spars(W6, W7) and sub trailing edge(W8) with thick 9. Glue top sheets with thick CA. 3. Assemble and glue plywood servo trays(W9) and ribs(W10-W17).

  • Page 4: Right Wing

     RIGHT WING 13. Glue leading edge(W31) with thick CA. 1. Assemble right wing. 14. Assemble and glue wingroot parts(W35-W39) with thick 2. Carefully sand surfaces. (Refer to the section on the drawing) 15. Carve and sand these parts for easy covering. 3.
  • Page 5 2. Assemble right aileron(A1-A9). 3. Assemble and glue the bulkheads(F3-F5) and longeron (F6) with thick CA. 3. Pin the left flap parts(P1-P7) on the plan and glue Make sure to pay attention to bulkheads, the numbers together with thick CA. should be facing forward.
  • Page 6 12. Cover the sheets(F32-F33) with thick CA. 7. Assemble and glue the parts(F23-F26) with thick CA. 8. Glue the parts (F27-F28) together with thick CA. 13. Glue the parts(F34-F36) with thick CA. 9. Glue the parts (F30-F31) together with thick CA. 14.
  • Page 7 16. Glue the parts (F42-F43) with thick CA. 21. Assemble and glue the parts(F60-F66) with thick CA. 22. Carefully sand surfaces 17. Cover the sheet(F44) with thick CA. 23. Assemble hatch(C1-C5) with thick CA. Use PVC film or waxed paper to prevent bonding to fuselage. 18.
  • Page 8 2. Paint parts. 26. Glue the parts (L1-L6) together with thick CA. 3. Insert and glue plywood slot supports(W34). 27. Assemble tail wheel as shown above. 4. Glue slots to the wing. 28. Glue fore and rear stut (W47-W48) with thick CA. 5.
  • Page 9 8. Fix strut to the wing with screws and then glue mid strut (W49) to the main strut (W47-W48). 12. Apply thick CA, and then Insert landing gear. Glue landing gear retainers (F71-F73). Tie wires with thread and reinforce with thin CA. 9.
  • Page 10 21. Install aileron and flap servos. Above servo installation 16. Install Neodymium magnetics and then apply thin CA. shows for 6channel receiver. (Flap servos with Y-harness, install additional flap horn-P8. 17. Insert aileron and flap hinges (A10-A12, P8-P9). Above servo installation shows for 5channel receiver. 22.
  • Page 11 26. Install ESC, receiver and extensions for ailerons and 31. Glue strips for reinforcing with thin CA as shown. flaps. 27. Cut cowl and strips as shown. 32. Cut holes as shown. 28. Draw cutting line. (5mm above from the bottom) 33.
  • Page 12  PRE-FILGHT CHECK Check CG. (CG location is shown on the drawing.) Control Throws. The following control throws are recommended at start. After you are familiar with this plane, you may increase, or decrease. - Ailerons : 16mm(5/8”) up, 10mm(3/8”) down. - Elevator : 12mm(1/2”) up and down.
