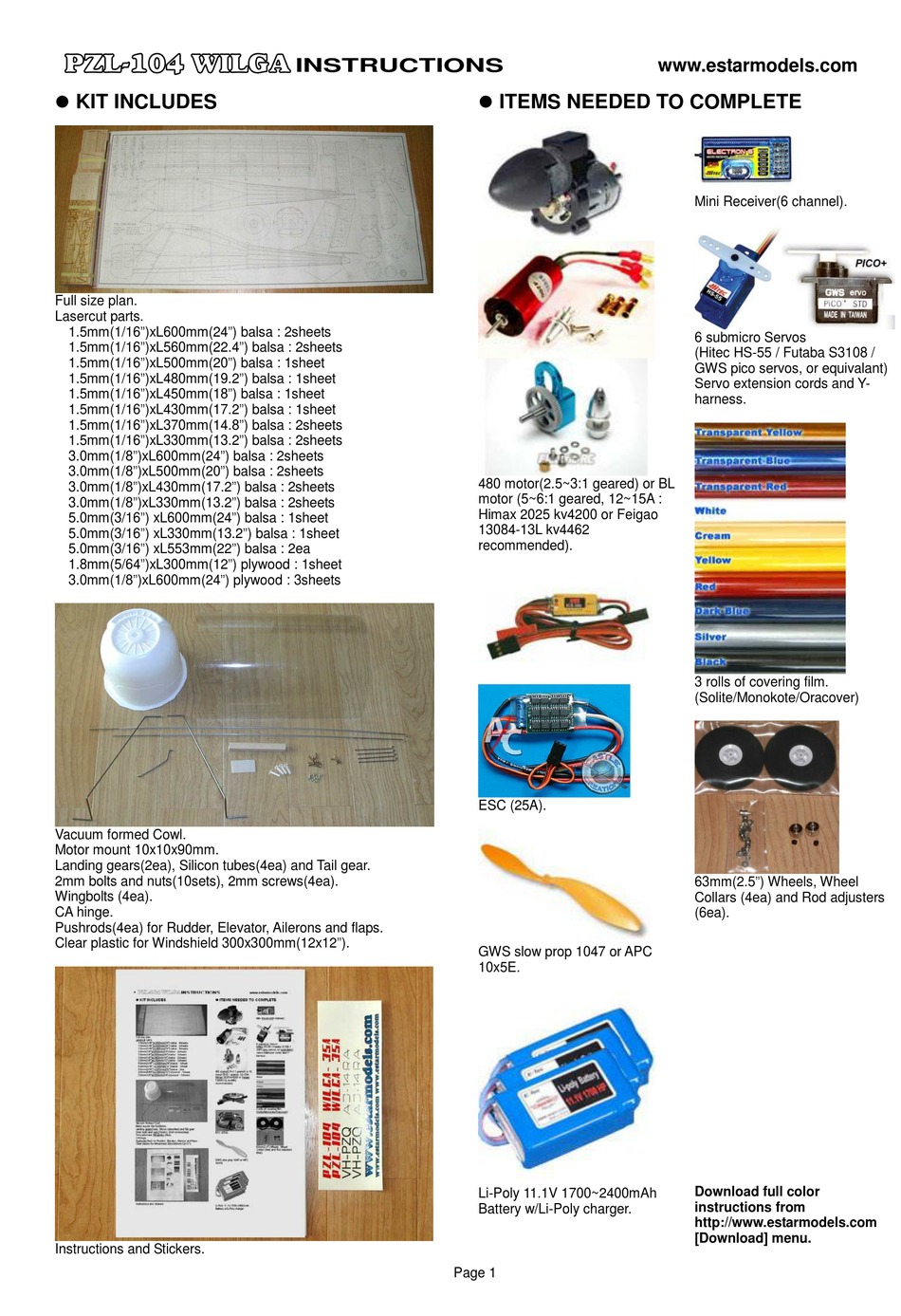

PZL-104 WILGA
 KIT INCLUDES
Full size plan.
Lasercut parts.
1.5mm(1/16")xL600mm(24") balsa : 2sheets
1.5mm(1/16")xL560mm(22.4") balsa : 2sheets
1.5mm(1/16")xL500mm(20") balsa : 1sheet
1.5mm(1/16")xL480mm(19.2") balsa : 1sheet
1.5mm(1/16")xL450mm(18") balsa : 1sheet
1.5mm(1/16")xL430mm(17.2") balsa : 1sheet
1.5mm(1/16")xL370mm(14.8") balsa : 2sheets
1.5mm(1/16")xL330mm(13.2") balsa : 2sheets
3.0mm(1/8")xL600mm(24") balsa : 2sheets
3.0mm(1/8")xL500mm(20") balsa : 2sheets
3.0mm(1/8")xL430mm(17.2") balsa : 2sheets
3.0mm(1/8")xL330mm(13.2") balsa : 2sheets
5.0mm(3/16") xL600mm(24") balsa : 1sheet
5.0mm(3/16") xL330mm(13.2") balsa : 1sheet
5.0mm(3/16") xL553mm(22") balsa : 2ea
1.8mm(5/64")xL300mm(12") plywood : 1sheet
3.0mm(1/8")xL600mm(24") plywood : 3sheets
Vacuum formed Cowl.
Motor mount 10x10x90mm.
Landing gears(2ea), Silicon tubes(4ea) and Tail gear.
2mm bolts and nuts(10sets), 2mm screws(4ea).
Wingbolts (4ea).
CA hinge.
Pushrods(4ea) for Rudder, Elevator, Ailerons and flaps.
Clear plastic for Windshield 300x300mm(12x12").
Instructions and Stickers.
INSTRUCTIONS
Page 1
 ITEMS NEEDED TO COMPLETE
480 motor(2.5~3:1 geared) or BL
motor (5~6:1 geared, 12~15A :
Himax 2025 kv4200 or Feigao
13084-13L kv4462
recommended).
ESC (25A).
GWS slow prop 1047 or APC
10x5E.
Li-Poly 11.1V 1700~2400mAh
Battery w/Li-Poly charger.
www.estarmodels.com
Mini Receiver(6 channel).
6 submicro Servos
(Hitec HS-55 / Futaba S3108 /
GWS pico servos, or equivalant)
Servo extension cords and Y-
harness.
3 rolls of covering film.
(Solite/Monokote/Oracover)
63mm(2.5") Wheels, Wheel
Collars (4ea) and Rod adjusters
(6ea).
Download full color
instructions from
http://www.estarmodels.com
[Download] menu.
