GA bon E-30 Rev 1.1 E 260406
PO Box 32 26
Phone: 0451/ 80 900-0
23581 Lübeck
Fax:
Stellmacherstraße 14
E-Mail: call@bon.de
D-23556 Lübeck
Internet: www.bon.de
bon Optic Vertriebsgesellschaft mbH – managing director: H. Jochen Kaber – HR Lübeck, HRB 3475 – VAT No. 161662634
Sparkasse zu Lübeck
0451/ 80 900-10
(Sort code 230 501 01) Acc.No. 1 014 885
Swift / BIC: HSHN DE H1 SPL
IBAN: DE 2305 0101 0001 0148 85
Instruction manual
Commerzbank Lübeck
(Sort code 230 400 22) Acc.No. 0 107 755
Postbank Hamburg
(Sort code 200 100 20) Acc.No. 409 22-204

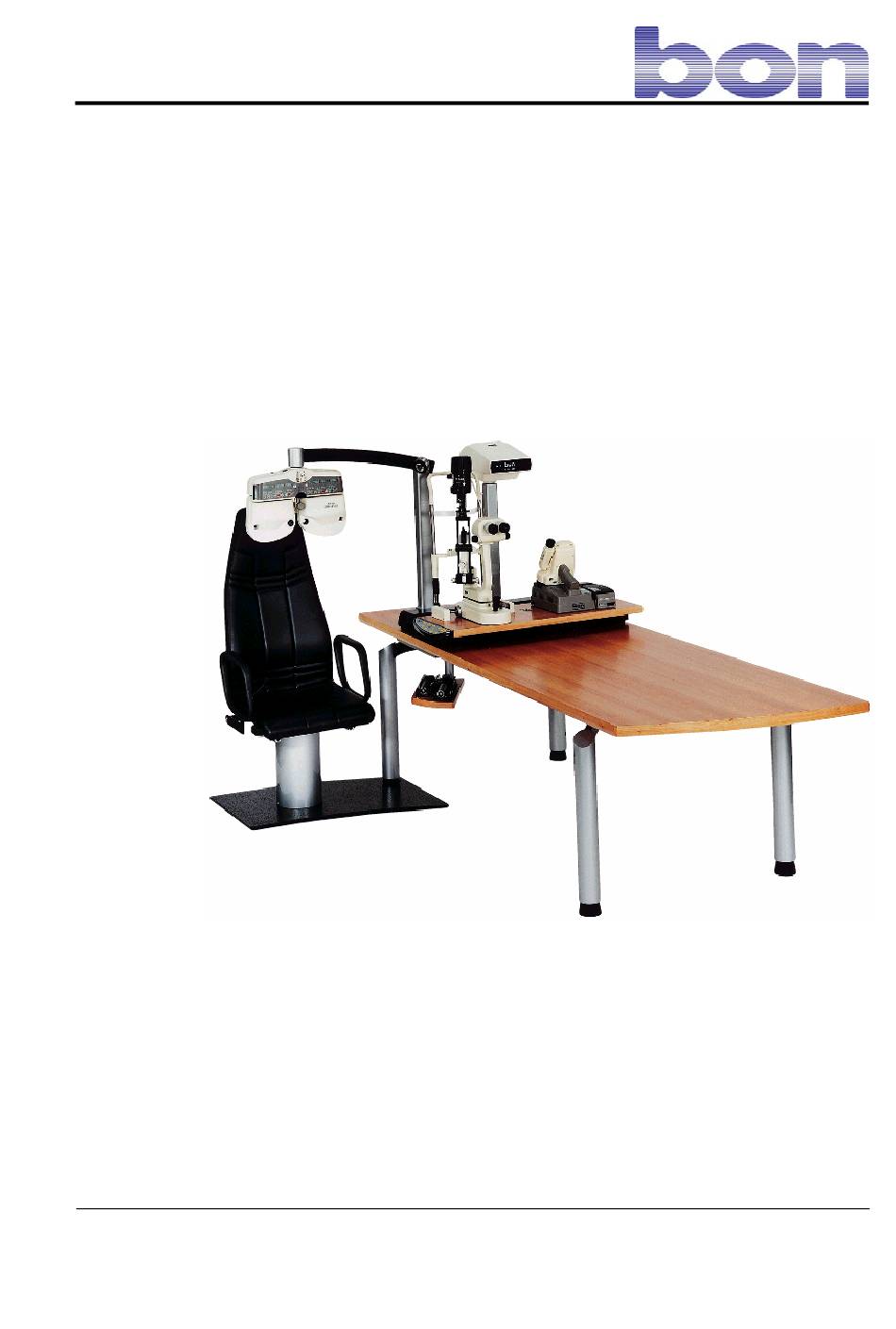

bon E-30
Advertisement
Table of Contents
Summary of Contents for bon E-30
- Page 1 Postbank Hamburg D-23556 Lübeck Internet: www.bon.de IBAN: DE 2305 0101 0001 0148 85 (Sort code 200 100 20) Acc.No. 409 22-204 bon Optic Vertriebsgesellschaft mbH – managing director: H. Jochen Kaber – HR Lübeck, HRB 3475 – VAT No. 161662634...
- Page 2 2/27...
-
Page 3: Table Of Contents
Contents Introduction .....................4 Important information ..................5 Information about the device ................5 Application and classification ................5 Liability ....................... 5 Scope of delivery....................5 Safety instructions ..................6 Description of device ..................7 Setting-up, assembly and repair ..............8 Operation ......................9 Controls ......................9 Initial start-up.................... -
Page 4: Introduction
Note! Indicates information for correct use so that errors may be avoided. This publication may not be copied or transferred without prior agreement from bon Optic. bon Optic reserves the right to make changes in the interest of technical development. These operating instructions are not subject to updating. -
Page 5: Important Information
Name of device: bon E-30 2.2 Application and classification The refraction unit bon E-30 serves as a carrier to which ophthalmological devices such as slit lamps and ophthalmometers can be attached. These devices may be adjusted in front of the patient who came for a medical examination. -
Page 6: Safety Instructions
3 Safety instructions bon E-30 3 Safety instructions Please follow the legal requirements on accident prevention and observe the following safety instructions! Setting-up and assembly: The refraction unit should not be assembled and operated in damp rooms. Ensure that the device is on a level and stable surface during assembly. -
Page 7: Description Of Device
4 Description of device bon E-30 4 Description of device Main components (max. number of components) (1) Spotlight (8) Phoropter arm (2) Projector column (3) Exchang. table (4) Work table (5) Control panel (7) Examination chair (6) Retract. equipment tray for... -
Page 8: Setting-Up, Assembly And Repair
E-30 5 Setting-up, assembly and repair Expert staff from bon Optic or your distributor will set up and assemble the refraction unit. Changes or repairs to the refraction unit may only be carried out by persons authorised by bon Optic. Medical devices that are linked to the electricity supply of the refraction unit must be shown to comply with DIN EN / IEC specifications. -
Page 9: Operation
6 Operation bon E-30 6 Operation 6.1 Controls The refractions unit may either be controlled by means of the operating keyboard on the exchangeable board or by the remote control. Abbildung 6-1: Control panel 1 Switch-on/off unit 5 Exchangeable table backward... -
Page 10: Initial Start-Up
6 Operation bon E-30 6.2 Initial start-up a) without wall terminal box. Plug the supplied power cable of the refraction unit into the mains socket. The socket of the refraction unit is on the back table leg. b) with wall terminal box. -
Page 11: Examination Chair
6 Operation bon E-30 6.3.3 Examination chair Press the buttons/keys on the operating panel to move the examination chair forward or backward. Alternatively, you may also operate the examination chair by using the remote control. down With the button/key, the examination chair will move down in its final position. -
Page 12: Programming The Ambient Light
6 Operation bon E-30 6.4 Programming the ambient light You may predefine the ambient light for 6 different operating positions. If the desired operating positions has been selected (e.g. exchangeable table has been extended), the programmed level of ambient light will be selected automatically. -
Page 13: Setup
7 Setup bon E-30 7 Setup If you want to start the set-up process, press the following key combination on the remote control: [Fix 2] → [Maddox] → [Maddox] → [Fix 1] You will hear a long and two short signal tones. To terminate the setup, you simply switch off the unit by pressing the button. -
Page 14: Curtain Control
7 Setup bon E-30 7.3 Curtain control By using the wall terminal box literally all kinds of curtain mechanisms and vertical blinds can be controlled. There are 5 different control options: Mode Function Operation by depression of key; function is maintained as long as the key is pressed. -
Page 15: Fix 1, Fix 2, Aux 1, Aux 2
7 Setup bon E-30 7.4 Fix 1, Fix 2, Aux 1, Aux 2 You may change the functions of key/buttons Fix 1, Fix 2, Aux 1 und Aux 2 from manual to automatic operation. 1. Start the setup (cf. chapter 7). - Page 16 7 Setup bon E-30 a) Press the “chair up“ key/button for selecting a fixed voltage, i.e. the set voltage will be automatically set upon activating the device irrespective of the position the potentiometer is in at the moment, b) Press the “chair down“ key/button to select a regulated voltage, i.e. a set voltage can be regulated with the potentiometer (maximum is reached, if turned to the right as far as it will go).
-
Page 17: Maintenance And Care
8 Maintenance and care bon E-30 8 Maintenance and care 8.1 Care Clean the refraction unit with a clean and damp chamois leather. Do not use any abbrasive or aggressive cleaning fluids! 8.2 Maintenance The refraction unit if used appropriately does not require any regular maintenance. -
Page 18: Changing A Fuse
8 Maintenance and care bon E-30 8.3.3 Changing a fuse Only use fuses indicated in table 1 with the listed type (T) fuse values. Before replacing a fuse, always pull out the mains plug or disconnect the refraction unit by pressing the on/off-switch of the wall terminal box. - Page 19 8 Maintenance and care bon E-30 Circuit board 1 Circuit board 2 19/27...
-
Page 20: Guarantee
A receipt with the date of purchase can be provided. The device has been used properly and in accordance with the conditions of use. Repairs have not been carried out by anyone other than the bon Optic customer service team or persons authorised by bon Optic. -
Page 21: Circuit Plans/Technical Data
10 Circuit plans/technical data bon E-30 10 Circuit plans/technical data Circuit plan of power board with wall terminal box Aut. Chart- Phoropter Projector MAIN- SUPPLY FILTER L-DIM. L-TAST EXAMINATION- CHAIR L-AUF L-AB DIMMER L-TAST REL4 L-DIM. L-DIM. POWER-BOARD 6 VAC... - Page 22 10 Circuit plans/technical data bon E-30 Circuit plan of power board without wall terminal box Aut. Chart- Phoropter Projector SI 1 MAIN- SUPPLY FILTER SI 2 MAIN POWER-ON SWITCH EXAMINATION- CHAIR L-AUF L-AB DIMMER L-TAST REL4 L-DIM. L-DIM. ROOM- LIGHT...
- Page 23 10 Circuit plans/technical data bon E-30 Circuit plan of digital board I2C-BUS TO WAK DOWN CHAIR FOOT-SWITCH K12 K11 DIGITAL-BOARD IR-IN IR-OUT CHAIR SAFETY-STOP (normal condition closed) REMOTE-CONTROL RECEIVER POTENTIOMETER FOR TABLE- AND HANDHELD-DEVICES min. max. TABLE-POSITION POTENTIOMETER CHANGE-OVER SWITCH...
- Page 24 10 Circuit plans/technical data bon E-30 Circuit plan of wall terminal box To Main-Supply Filter Refraction Unit Power-Board K11/3 L-gedimmt Refraction Unit Touch-Input Roomlight- L-getastet Regulator Refraction Unit To Main-Supply Filter Refraction Unit 6 VAC 6 VAC 24/27...
- Page 25 10 Circuit plans/technical data bon E-30 Weight Maximum scope of equipment without approx. 200 kg devices Electrical data of refraction unit Mains voltage 230 V AC Mains frequency 50 / 60 Hz Connected load 750 VA Workstation lamp 12 V AC / 20 W...
- Page 26 Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment. If you have any further questions, please contact bon optic. Should EMC disruptions (electro-magnetic compatibility) occur, please contact bon Optic customer support.
- Page 27 D-23556 Lübeck Gerätetyp / UMDNS-CODE: Untersuchungs-/Behandlungsplatz (18-014) (Device typ/ UMDNS-CODE) Refraktionseinheit bon E-30 Gerätebezeichnung: Refraction unit bon E-30 (Device name) Klassifizierung: 1 (Richtlinie 93/42/EWG, Anhang IX, Regel 1) (Classification) 1 (MDD 93/42/EEC, annex IX, rule 1) Wir erklären hiermit die Übereinstimmung des vorgenannten Produkts mit der EU-Richtlinie 93/42/EWG über Medizinprodukte.
