10. Please replace the battery only with ones of the same type as the original ones, as improper replacement will bring the risk of explosion. 11. Never expose battery to sunlight, fire or other extremely hot circumstances. 12. Please download update file from our official site www.shanling.com and update accordingly to the instruction.

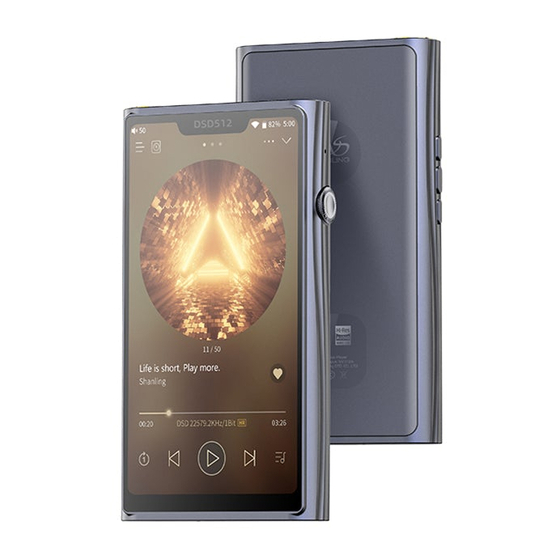

Names of Parts Micro SD Type-C USB microSD USB/DAC card slot data port 6.0 inch touch screen (1080 x 2 60) Status indicator 1.44 inch display screen Interchangeable Headphone Socket Module 3.5mm Headphone/Line output 2.5mm Balanced Headphone output 3.5 PRO Balanced Headphone output 4.4mm Balanced Headphone output...
Schematic Diagram Accessing Micro SD Card 1. Push on the right 2. Slowly pull the cover 3. Twist the cover out corner and the card out. of the way to access cover will pop out. the Micro SD card. Headphone Socket Module Installation 1.
Page 13
Operation Instructions Power ON / OFF / Screen Locking 1. Power on: press and hold power button for 2 seconds, status indicator lights up and device turns on. 2. Power off: press and hold the power button for 2 seconds. The display shows the "Power Off"...
Press again to remove the card. Firmware Update 1. When updating the firmware, please make sure that M9 is fully charged. 2. Do not do operate the player during the update process.
1. It is recommended to use DC5V 2A adapter. Using the adapter with higher voltage may damage M9. 2. Unable to start M9, it may be caused by low power or exhausted battery, please recharge and then start up again.
Page 16
The M9 includes MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording. The M9 Now Playing screen shows green or blue dot next to MQA logo to indicate that the unit is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material.
