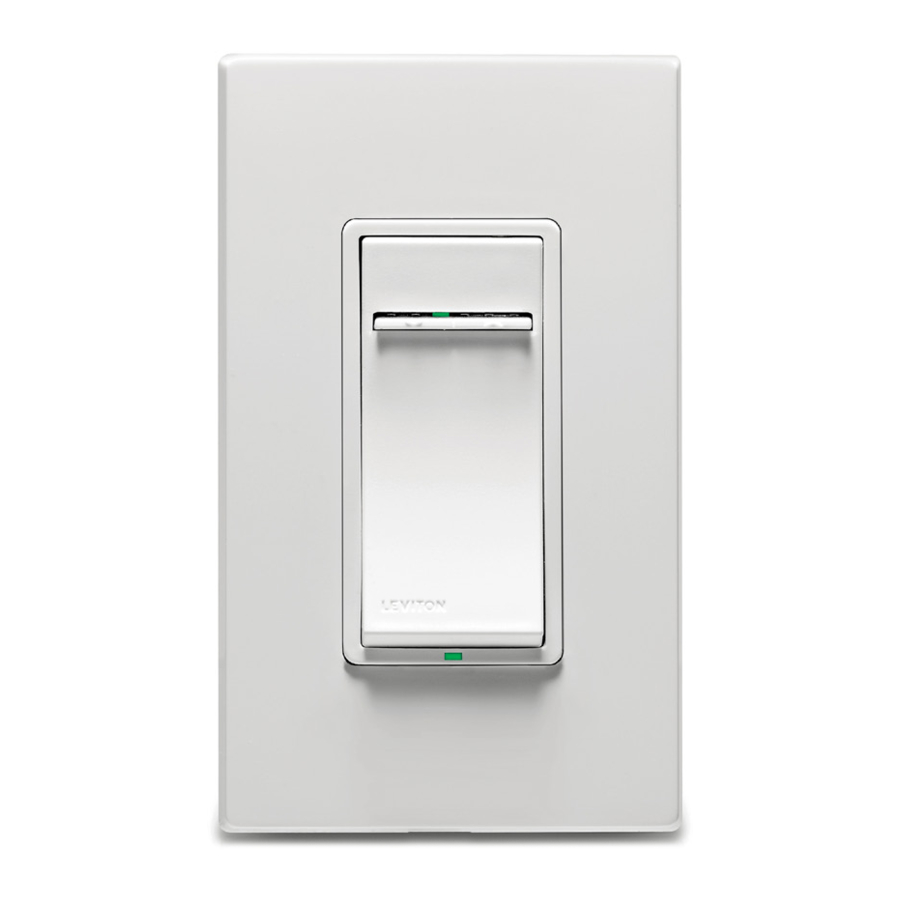

Leviton Vizia RF + VRMX1-1L Dimmer Installation Instructions

WARNINGS AND CAUTIONS

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that power is off before wiring!
• TO AVOID FIRE, PERSONAL INJURY OR PROPERTY DAMAGE, DO NOT install to control a receptacle, a motor or a transfer operated appliance.
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
• Use ONLY with the appropriate Advance Transformer 120V Mark 10™ Powerline or Lutron Tu-Wire^® electronic ballasts for controlling the specific fluorescent lamps in Fluorescent Mode.
• Use with magnetic low voltage transformers, incandescent, or 120V halogen fixtures only. Use a Leviton electronic low voltage dimmer to control electronic (solid state) low voltage transformers.
• When retrofitting Mark 10™ Powerline dimming ballasts into fixtures that originally had Instant Start ballasts, the sockets MUST be replaced with Rapid Start sockets to allow proper dimmer operation and prevent damage to the dimmer ballast. Refer to the instructions provided with the ballast.
• Vizia RF+^® dimmers are not compatible with standard 3-way or 4-way switches. They must be used with compatible Vizia +^® or Vizia RF +^® controllers for multi-location dimming.
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft.
• Dimmer may feel warm to the touch during normal operation.

• When magnetic low voltage circuits are operated at a dim level, with all lamps inoperative, excess current may flow through the transformer. To avoid possible transformer failure due to overcurrent, use a transformer that incorporates thermal protection or a fuse at the primary windings.
• Recommended minimum wall box depth is 2-1/2".
• Use this device WITH COPPER OR COPPER CLAD WIRE ONLY.
• Use with compatible dimmable LED, CFL bulbs, incandescent or 120V halogen fixtures only. For a list of compatible LED and CFL bulbs refer to www.leviton.com.
• When multiple bulbs are used with one dimmer DO NOT mix bulb types. All bulbs shall be either LED; CFL or incandescent. Using the same make/model of each bulb will enhance dimmer performance.

INTRODUCTION

Leviton's Vizia RF +^® components are designed to communicate with each other via Radio Frequency (RF) to provide remote control of your lighting. Each module in Leviton's Vizia RF +^® component line is a Z-Wave^® enabled device. In a Z-Wave^® network, each device is designed to act as a router. These routers will re-transmit the RF signal from one device to another until the intended device is reached. This ensures that the signal is received by its intended device by routing the signal around obstacles and radio dead spots. The Scene Capable Incandescent/Magnetic Low Voltage or Fluorescent Dimmer is compatible with any Z-Wave^® enabled network, regardless of the manufacturer and can also be used with other devices displaying the Z-Wave^® logo.

TO AVOID FIRE, PERSONAL INJURY OR DEATH DO NOT USE the remote for the control of high power heating appliances such as portable heaters. Remember to exercise good common sense when using the Timer features of your remote, especially when scheduling unattended devices. There can be some unexpected consequences if not used with care. For example, an empty coffee pot can be remotely turned on. If that should happen, your coffee pot could be damaged from overheating. If an electric heater is turned on by remote control while clothing is draped over it, a fire could result. DO NOT USE the remote for the control of high power heating appliances such as portable heaters. This device will not control lighting that is used with electronic low-voltage and high frequency power supply transformers, nor high pressure discharge lamps (HID lighting). This includes mercury-vapor, sodium vapor and metal halide lamps.

FEATURES

• Soft fade ON/OF
• Scene capable
• ON/OFF LED and Brightness level LED
• Two way communication
• RF reliability
• Ease of installation – No new wiring
• Compatible with other Z-Wave^® enabled devices

TOOLS NEEDED TO INSTALL YOUR DIMMER

Slotted/Phillips Screwdriver
Electrical Tape
Pliers
Pencil
Cutters
Ruler

Changing the color of your Dimmer:
Your device may include color options. To change color of the face proceed as follows:

Push in side at tab to release

Line up tabs and press in sides on at a time to attach

INSTALLING DIMMER BY ITSELF OR WITH OTHER DEVICES

If installing Dimmer in a single device application, proceed with the INSTALLING YOUR DIMMER section. If installing Dimmer in a multi-device application, proceed as follows:

MULTI-DEVICE APPLICATION

In multi-dimmer installations, the reduction of the dimmer's capacity is required. Refer to the chart for maximum load per dimmer.

Bend back and forth to remove side section

MAXIMUM BULB WATTAGE

Low-voltage dimmers are rated in Volt-Amps (VA). The maximum bulb wattage is determined by the efficiency of the transformer in the low-voltage lighting system. Transformer efficiencies will vary from different manufacturers; consider 80% efficient as average. Use the chart to determine maximum bulb wattage for typical transformer efficiency ratings.

Mark 10™ Powerline dimmers are rated in Volt-Amps (VA). The maximum bulb wattage is determined by the efficiency of the Mark 10™ Powerline ballast. The following table shows the maximum number of ballasts that can be connected to a single dimmer for different Mark 10™ Powerline ballasts. Also note that the table shows maximum ballasts for multi-gang installations.

Cat. No. VRMX1, 120V, For use with Advance Transformer
120V Mark 10^TM Powerline Electronic Ballasts

Lutron Tu-Wire^®:
To determine total ballast load, add the line current found on the ballast label for all ballasts in the circuit. This will indicate the total load for the control.

INSTALLING YOUR DIMMER

NOTE: Use check boxes when Steps are completed.

Step 1

TO AVOID FIRE SHOCK OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that power is off before wiring!

Step 2
Identifying your wiring application (most common):

NOTE: If the wiring in your wall box does not resemble any of these configurations, consult an electrician.

For 3-Way applications, note that one of the screw terminals from the old switch being removed will usually be a different color (Black) or labeled Common. Tag that wire with electrical tape and identify as the common (Line or Load) in both the dimmer wall box and remote wall box.

Step 3
Preparing and connecting wires:
Pull off pre-cut insulation from dimmer leads. Make sure that the ends of the wires from the wall box are straight (cut if necessary). Remove insulation from each wire in the wall box as shown:

• Pull off pre-cut insulation from dimmer leads.
• Make sure that the ends of the wires from the wall box are straight (cut if necessary).
• Remove insulation from each wire in the wall box as shown.
• For Single-Pole Application, go to Step 4a.
• For 3-Way Coordinating Remote (no LEDs) Application, go to Step 4b.

For non-standard wiring applications, refer to Wire Nut and Connector Size Chart

Step 4a
Single Pole Wiring Application:

This wire is used in 3-way installations only. For single pole installations, do not remove this insulating label.

WIRING DIMMER:
Connect wires per WIRING DIAGRAM as follows:

CONNECT A MAGNETIC LOW-VOLTAGE DIMMER ONLY TO THE PRIMARY (HIGH-VOLTAGE) SIDE OF A MAGNETIC LOW-VOLTAGE TRANSFORMER.

• Green or bare copper wire in wall box to Green dimmer lead.
• Line Hot wall box wire to Black dimmer lead.
• Load wall box wire to Red dimmer lead.
• Line Neutral wall box wire to White dimmer lead.
• Yellow/Red dimmer lead should have Red insulation label affixed.
  NOTE: If insulating label is not affixed to Yellow/Red dimmer lead, use electrical tape to cover.
• Proceed to Step 5.

Step 4b
3-Way Wiring with Coordinating Remote
(no LEDs) Application:

WIRING DIMMER:
Connect wires per WIRING DIAGRAM as follows:

FOR MAGNETIC LOW-VOLTAGE APPLICATIONS, CONNECT DIMMER ONLY TO THE PRIMARY (HIGH-VOLTAGE) SIDE OF A MAGNETIC LOW-VOLTAGE TRANSFORMER.

NOTE: When using the coordinating remote without LEDs, the dimmer can be installed on either the Line or Load side of the 3-way circuit.

NOTE: Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m).

• Green or bare copper wire in wall box to Green dimmer lead.
• Line Hot (common) wall box wire identified (tagged) when removing old switch to Black dimmer lead.
• First Traveler wall box wire to Red dimmer lead (note wire color).
• Remove Red insulating label from Yellow/Red dimmer lead.
• Second Traveler wall box wire to Yellow/Red dimmer lead (note wire color). This traveler from the dimmer must go to the terminal screw on the remote marked "YL/RD".
• Line Neutral wall box wire to White dimmer lead.

WIRING COORDINATING REMOTE:
Connect wires per WIRING DIAGRAM as follows:

NOTE: "BK" and "RD" terminals on coordinating remote are unused.
Tighten both screws.

NOTE: Maximum wire length from dimmer to last remote is 300 ft (90 m).

• Green or bare copper wire in wall box to Green terminal screw.
• Load wall box wire identified (tagged) when removing old switch to First Traveler (note color as above).
• Second Traveler wall box wire (note color as above) to terminal screw marked "YL/RD". This traveler from the remote must go to the Yellow/Red dimmer lead.
• Remove White insulating label from terminal screw marked "WH".
• Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.

Step 4c
3-Way Wiring with Matching Remote (w/LEDs) Application:

NOTE: The dimmer must be installed in a wall box that has a Load connection. The matching remote must be installed in a wall box with a Line Hot connection and a Neutral connection. A Neutral wire to the matching remote needs to be added as shown.

If you are unsure about any part of these instructions, consult an electrician.

NOTE: Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m).

WIRING MATCHING REMOTE (wall box with line hot connection):
Connect wires per WIRING DIAGRAM as follows:

• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when removing old switch and First Traveler to Remote terminal marked BK.
• Second Traveler wall box wire from dimmer to remote terminal screw marked "YL/RD" (note wire color). This traveler from the remote must go to Yellow/Red dimmer lead.
• Line Neutral wall box to remote terminal screw marked "WH"

.WIRING DIMMER (wall box with load connection):
Connect wires per WIRING DIAGRAM as follows:

• Green or bare copper wire in wall box to Green dimmer lead.
• Load wall box wire identified (tagged) when removing old switch to Red dimmer lead.
• First Traveler Line Hot to Black dimmer lead.
• Remove Red insulating label from Yellow/Red dimmer lead.
• Second Traveler wall box wire (note color as above) to Yellow/Red dimmer lead. This traveler from the dimmer must go to the terminal screw on the remote marked "YL/RD".
• Line neutral wall box wire to White dimmer lead.
• Proceed to Step 5.

Step 5
Testing your Dimmer prior to mounting in wall box:

NOTE: If using in a dimmable fluorescent application see Advanced Programming Feature B-4 prior to testing the device.

• Position all wires to provide room in outlet wall box for device.
• Ensure that the word "TOP" is facing up on device strap.
• Partially screw in mounting screws in wall box mounting holes.

NOTE: Dress wires with a bend as shown in diagram in order to relieve stress when mounting device.

• Restore power at circuit breaker or fuse.
• Press pad until locator light is OFF. Lights should turn ON. If lights do not turn ON, press the right half of the DIM/BRIGHT Bar until the lights brighten.

If lights still do not turn ON, refer to the TROUBLESHOOTING section.

Step 6
Dimmer Mounting:
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.

Installation may now be completed by tightening mounting screws into wall box. Attach wallplate.

Step 7
Restore Power:
Restore power at circuit breaker or fuse.
Installation is complete.

NOTE: To include your dimmer into a network, contact Leviton's Techline at 1-800-824-3005 or visit Leviton's website at www.leviton.com.

FACTORY DEFAULT

If your dimmer is not responding, or you are unable to control it after you have tried to Include/Exclude it multiple times, it may be necessary to reset the dimmer to its original factory settings. To accomplish this, proceed as follows:

• On the dimmer, engage the air-gap switch (refer to Operation section) and wait 5 seconds. Press the push pad back into the frame and hold push pad until the locator LED turns Amber and then turns Red. The dimmer is now reset. Once the dimmer is reset, it will be necessary to Re-Include it to a network before it can be used.

SETTING A DEVICE TO A FACTORY DEFAULT DOES NOT EXCLUDE THAT DEVICE FROM A NETWORK. THE EXCLUSION PROCEDURE MUST STILL BE FOLLOWED TO REMOVE THE DEVICE FROM THE PRIMARY CONTROLLER'S INFORMATION TABLE. FAILURE TO DO SO MAY RESULT IN SYSTEM THAT IS SLOW TO RESPOND, OR MAY FAIL TO RESPOND TO SOME DEVICES.

OPERATION

NOTE: The locator light will illuminate when the load is in the OFF position to facilitate access in the dark.

NOTE: If using the dimmer in a 3-wayapplication, the lights will turn ON at brightness set on dimmer's DIM/BRIGHT bar. The lighting can be controlled from either the dimmer or the remote location.

Push Pad (Default settings)
Turn ON from OFF position:
Tap – Lights turn ON to preset level.
Press and Hold – Lights turn ON to full bright.

Turn OFF from ON position:
Tap – Lights turn OFF.

DIM/BRIGHT Bar
BRIGHTEN:
Press the right half of the DIM/BRIGHT Bar – Lights brighten to desired level.

DIM:
Press the left half of the DIM/BRIGHT Bar – Lights dim to desired level. If you continue to hold, the lights will DIM to minimum level and then turn OFF.

NOTE: When lights are OFF you can change the light level that the lights will turn ON to using the DIM/BRIGHT Bar.

If there is a power outage, when the power is restored, the lights will return to the last setting before the power interruption.

Air-Gap Switch: On the dimmer only, engage the air-gap switch by gently pressing the top of the push pad until the bottom lifts completely out of the frame and a click is heard (refer to Figure). LED's will turn OFF. This will stop power to the fixture to replace the bulb. After servicing is complete, press the push pad back into place for normal operation.

Cleaning: Clean with a damp cloth. DO NOT use chemical cleaners.

ADVANCED PROGRAMMING FEATURES

Definition of A Modes

A-1) Energy Save: Sets the maximum brightness level for energy savings.

A-2) Minimum Brightness Level: Sets the minimum dimming level.

A-3) Preset ON Level: Sets the turn on brightness level regardless of the previous set light level (formerly Dim Lock).

Definition of B Modes

B-1) ON Fade Rate: Sets the amount of time in seconds it takes the lights to turn ON to maximum brightness.

B-2) OFF Fade Rate: Sets the amount of time in seconds it takes the lights to turn OFF from maximum brightness.

B-3) LED Options: Sets the time period in seconds the Locator LED and Brightness display will stay on before extinguishing.

B-4) Fluorescent Mode: Allows dimmer to control Mark 10 Powerline dimming ballasts.

Definition of LEDs

Leftmost LED = LED 1
Rightmost LED = LED 7

NOTES:

• The device will exit programming mode after 3 minutes of inactivity.
• Pressing the push pad at any time during programming will advance the device to the next programming mode.

Program Mode A
To enter Program Mode A:
Press and hold the Push Pad and then the right half of the DIM/BRIGHT Bar () for 5 seconds until the Locator LED and leftmost LED (LED 1) begin to blink.

A-1) Upon releasing the Push Pad and the right half of the DIM/BRIGHT Bar ), the Locator LED will continue to blink once per second and the rightmost LED will illuminate to display the device is in Program Mode A-1, Energy Save. The default energy save mode is 100% i.e. full bright. To change the Energy Save level, use the DIM/BRIGHT Bar to move the corresponding LED to the desired discrete preset level according to Chart A. By tapping the Push Pad this setting will automatically be saved and the device will advance to the next programming mode, A-2.

Chart A

A-2) The Locator LED will blink 2 times per second to indicate the device is in Program Mode A-2, Minimum Brightness Level. The default Minimum Brightness Level is LED 1. To change the Minimum Brightness Level from 1-50%, use the DIM/BRIGHT Bar. The light output will reflect the minimum brightness level selected. By tapping the Push Pad this setting will automatically be saved and the device will advance to the next programming mode, A-3.

A-3) The Locator LED will blink 3 times per second to indicate Program Mode A-3, Preset ON Level. To change the current Preset ON Level from 1-100%, use the DIM/BRIGHT Bar. If this feature is not desired, press and hold the left half of the DIM/BRIGHT Bar () until no LED is lit (default setting). By tapping the Push Pad this setting will automatically be saved and the device will exit Programming Mode A.

Program Mode B
To enter Program Mode B:
Press and hold the Push Pad and then the left half of the DIM/BRIGHT Bar () for 5 seconds until the Locator LED and rightmost LED (LED 7) begin to blink.

B-1) Upon releasing the Push Pad and the left half of the DIM/BRIGHT Bar (), the Locator LED will continue to blink once per second indicating the dimmer is in Program Mode B-1, ON Fade Rate. To change the ON Fade Rate, use the DIM/BRIGHT Bar to move the LED to the desired preset level according to Chart B. By tapping the Push Pad this setting will automatically be saved and the device will advance to the next programming mode, B-2.

B-2) The Locator LED will blink 2 times per second to indicate Program Mode B-2, OFF Fade Rate. To change the OFF Fade Rate, use the DIM/BRIGHT Bar to move the LED to the desired preset level according to Chart B. By tapping the Push Pad this setting will automatically be saved and the device will advance to the next programming mode, B-3.

Chart B

B-3) The Locator LED will blink 3 times per second to indicate Program Mode B-3, LED Options. To change the LED Options settings, use the DIM/BRIGHT Bar to move the LED to the desired preset setting according to the Chart B-3. By tapping the Push Pad this setting will automatically be saved and the device will advance to the next Programming Mode B-4.

Chart B-3

B-4) The Locator LED will blink 4 times per second to indicate Program Mode B-4, Fluorescent Mode. Default operation mode is incandescent/magnetic low voltage mode. To change from normal to fluorescent mode, use the DIM/BRIGHT Bar. Press and hold the right half of the DIM/BRIGHT Bar () until LED is lit (default setting is LED OFF). By tapping the Push Pad this setting will automatically be saved and device will exit Programming Mode B.

TROUBLESHOOTING

Lights Flickering

• Lamp has a bad connection.
• Wires not secured firmly with wire connectors of dimmer or terminal screws of remote.
• If using in a dimmable fluorescent application see Advanced Programming Feature B-4.

Light does not turn ON and Locator LED does not turn ON

• Circuit breaker or fuse has tripped.
• Lamp is burned out.
• Neutral not wired to Dimmer (White wire).
• Confirm that the device is being supplied from a 120V, 60 Hz AC source ONLY.
• Confirm that unit is programmed properly. Repeat "TO INSTALL" section to verify that it has been included in the Z-Wave^® network.

Intermittent dimmer operation

• Minimum load is under 40W.
• Confirm that the Load being controlled does not exceed the 1000VA dimmer limit.

Remote does not operate lights

• Ensure that total wire length does not exceed 300 ft.
• Ensure wiring is correct.

For additional information, contact Leviton's Techline at 1-800-824-3005 or visit Leviton's website at www.leviton.com

Covered by U.S. Pat. Nos.: 7,756,556; 7,985,937; 8,003,904; 8,386,661; D609,650 and corresponding foreign equivalents. Licensed under U.S. Pat. Nos. 5,905,442, and 5,982,103
