Ip Address Settings; Accon-Netlink Settings; Profile - DELTA LOGIC ACCON-NetLink-S7 Getting Started Manual

Use »Save to NetLink« to store the settings
If you choose a wrong profile when using PROFIBUS, the S7 CPU could be put into stop and
bus errors may occur.
If the properties dialog does not appear, the ACCON-NetLink S7 must be in another sub-
network e.g. behind a router which does not let pass the necessary broadcasts for a network
scan. Check the network settings of your PC.

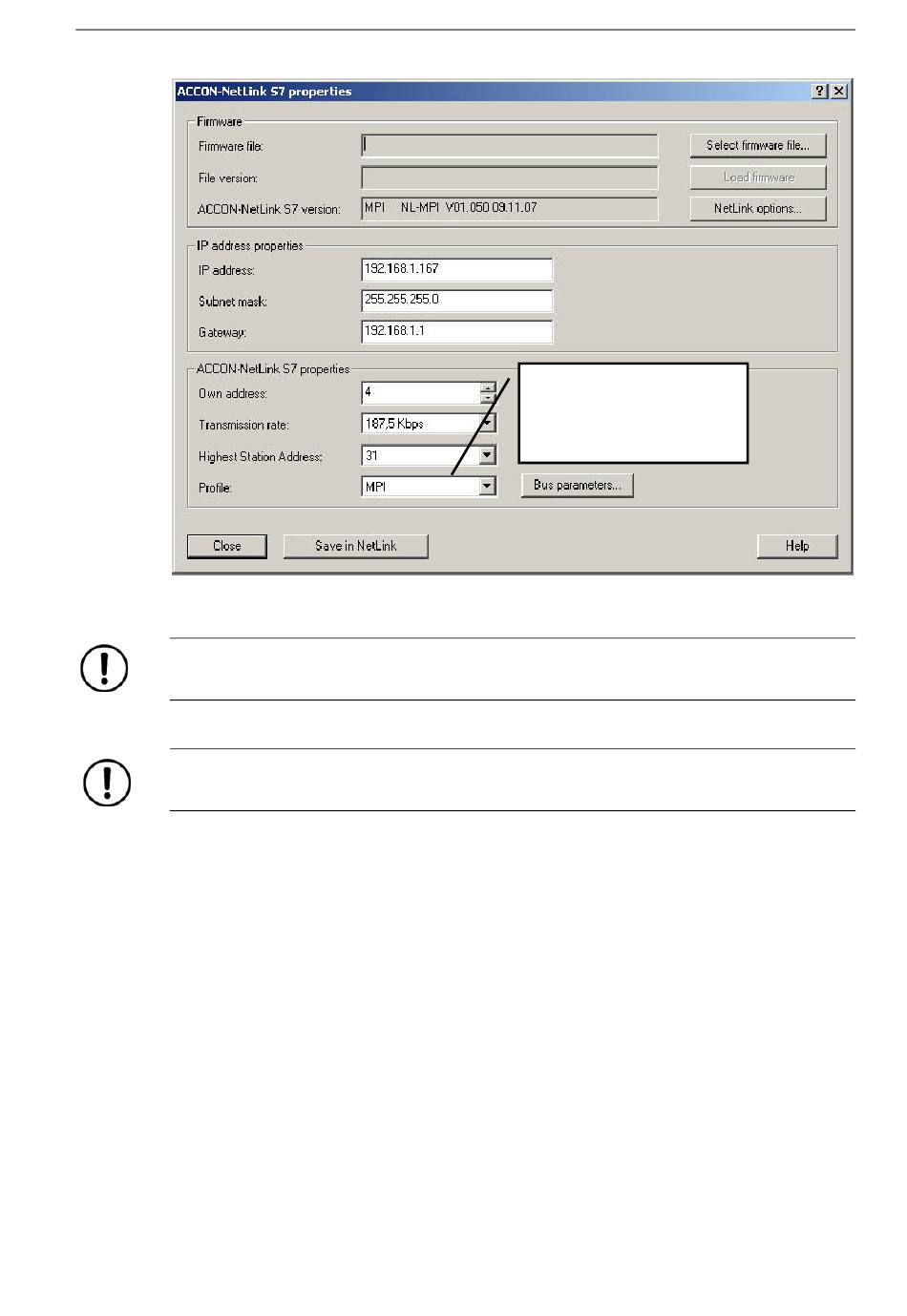

IP address settings

All IP settings can be adjusted in this group. Please enter the address of a possible gateway
(router). If there is no gateway leave it blank.

ACCON-NetLink settings

Here you can adjust the parameters of the bus system. As the ACCON-NetLink S7 is a
station in a MPI or PROFIBUS network, the device must have its own bus address. Please
remember that no other station has the same address as the ACCON-NetLink S7.

Profile

When using the MPI-Bus use the profile MPI. You can find information for other bus systems
in the manual »ACCON-NetLink-S7_HB_de.pdf« located on the
DELTALOGIC Automatisierungstechnik-CD.
