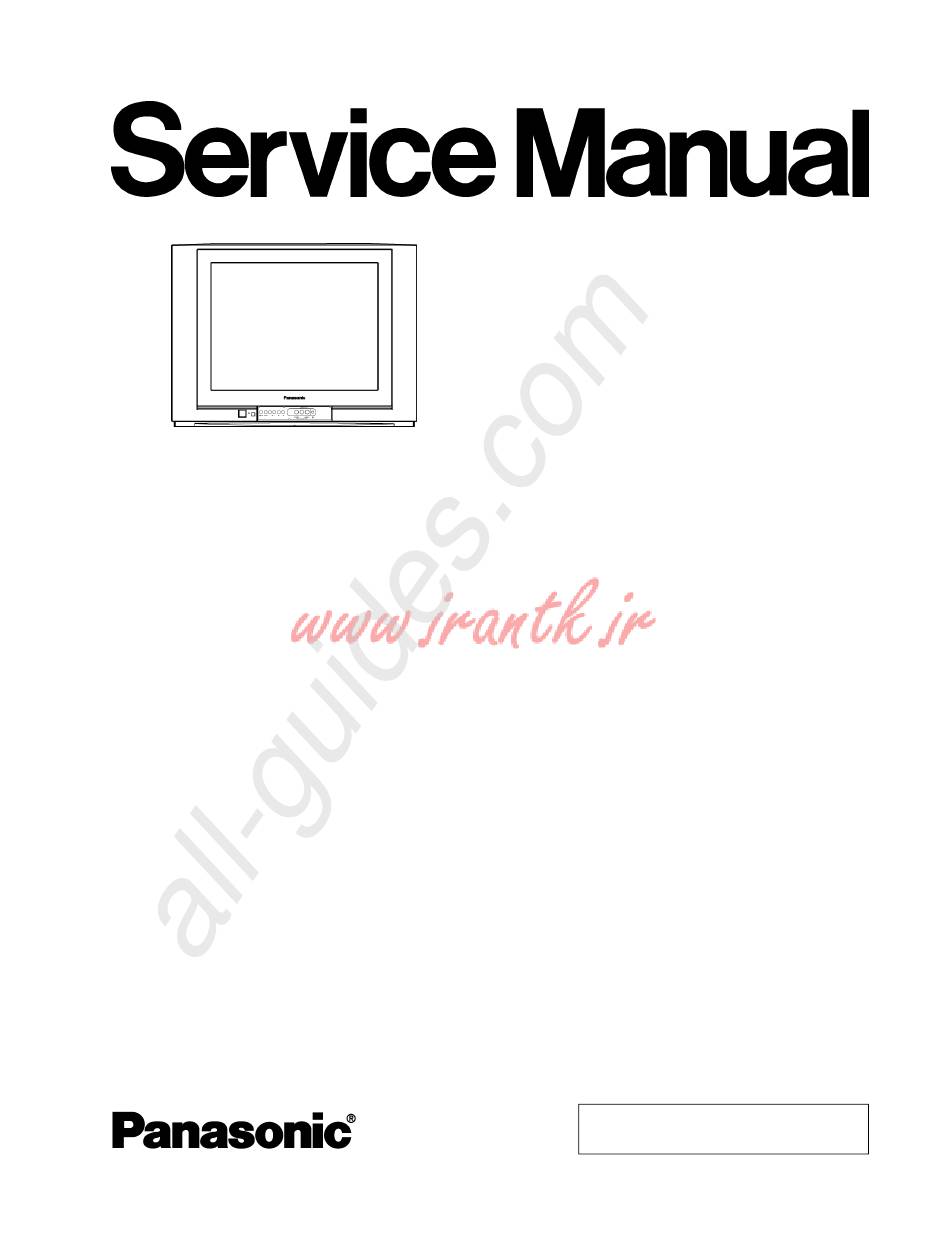

Panasonic TX-29F150B Service Manual

www.irantk.ir www.irantk.ir www.irantk.ir www.irantk.ir
Specification
Power Source
Power Consumption
Aerial Impedance
Tuning System
Receiving System
Receiving Channels
VHF BAND
UHF BAND
CATV
Intermediate Frequency
Video
All manuals and user guides at all-guides.com
AC AUTO 110-240V, 50 / 60 Hz
164 W
Standby condition : 2 W
75 Ω Unbalanced Coaxial
Frequency Synthesizer
Auto Search Tuning
Pos : 100 Positions
21 Systems
Regular TV
0-12 (PAL / SECAM B, K1)
0-12 (PAL B AUST.)
1-9 (PAL B N.Z.)
1-12 (PAL / SECAM D)
1-12 (NTSC M JAPAN)
2-13 (NTSC M U.S.A)
21-69 (PAL G, H, I / SECAM G, K,
K1)
28-69 (PAL B AUST.)
13-57 (PAL D, K)
13-62 (NTSC M JAPAN)
14-69 (NTSC M U.S.A.)
S1-S20 (OSCAR)
1-125 (U.S.A. CATV)
C13-C49 (JAPAN)
S21-S41 (HYPER)
Z1-Z37 (CHINA)
5A, 9A (AUST.)
38.0 MHz
31.5 MHz (D, K) / 32.5 MHz (B, G)
32.0 MHz (I) / 32.5 MHz (M)
Colour Television
TX-29F150B
GP2 Chassis
Sound
Colour
Video / Audio / Terminals
AV 1, 2, 3, 4
DVD
Y
P
B
P
R
Video In
Audio In
Monitor Out
Video Out
Audio Out
High Voltage
Picture Tube
Audio Output
Dimensions (W x D x H)
Weight (Mass)
Note:
Specifications are subject to change without notice. Mass and
dimensions shown are approximate.
© 2004 Matsushita Electric Industrial Co., Ltd. All
rights reserved.
distribution is a violation of law.
Order No. MTV0401312C3
33.57 MHz (PAL) /
33.6 MHz (SECAM)
34.42 MHz (NTSC) /
33.75 MHz (SECAM)
S-Video In
Y:1 Vp-p, 75 Ω
C:0.3 Vp-p, 75 Ω
1.0Vp-p, 75 Ω
0.7Vp-p, 75 Ω
0.7Vp-p, 75 Ω
1Vp-p, 75 Ω
Approx. 0.5V, 47k Ω
1Vp-p, 75 Ω
Approx. 0.5V, 1k Ω
31.0 ± 1.0 at zero
beam current
A68LZU185X Type 29 (68 cm)
Measured diagonally
104 ° deflection
20 W speaker
786 mm x 512 mm x 578 mm
43 kg (Net)
Unauthorized copying and
