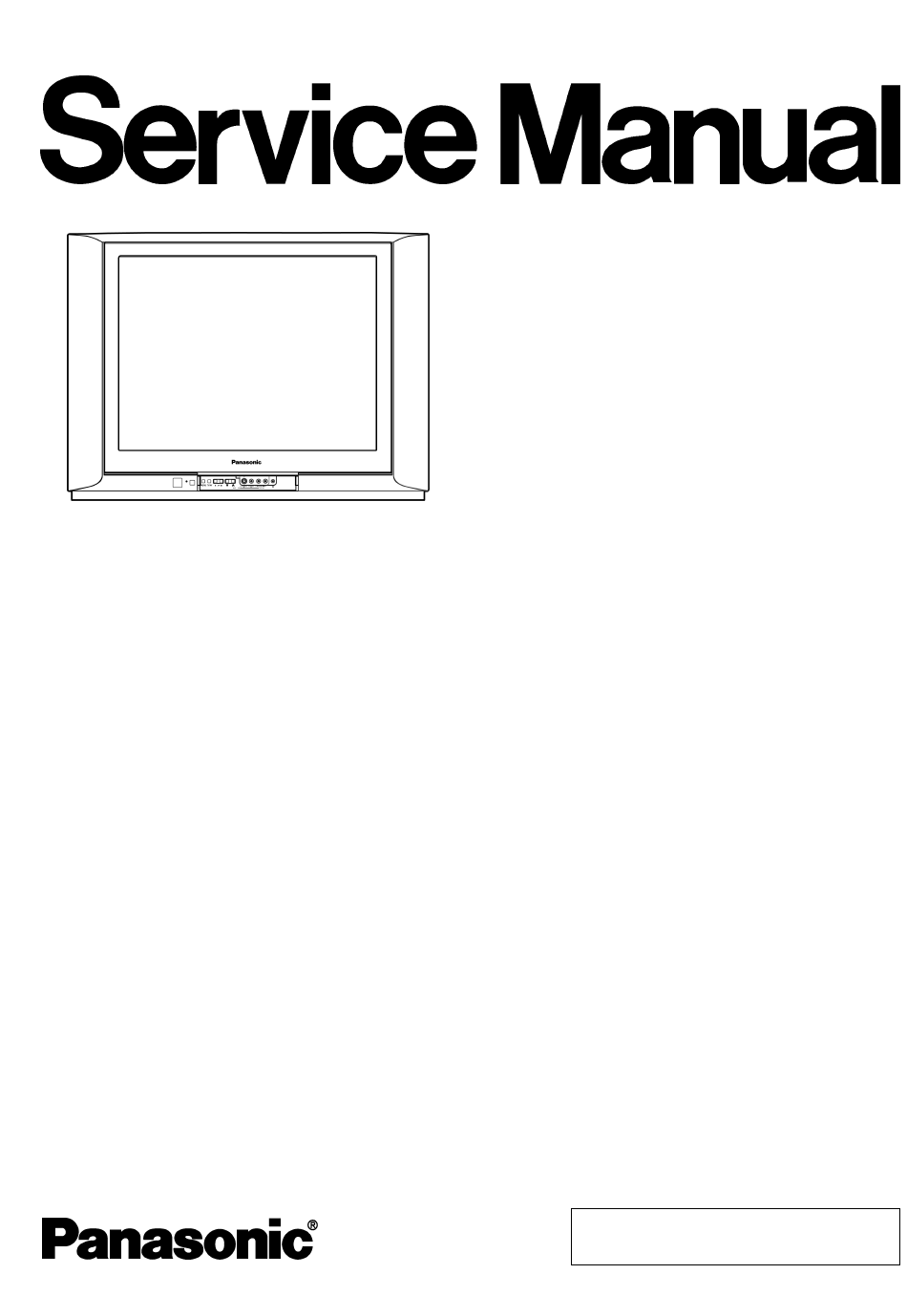

Panasonic TX-29F355R-IRAN Service Manual

Specifications
Power Source :
Power Consumption :
Aerial Impedance :
Receiving System :
Receiving Channels :
VHF
2 - 12
0 - 12
1 - 9
1 - 12
1 - 12
2 - 13
UHF
21 - 69
28 - 69
13 - 57
13 - 62
14 - 69
CATV
S1 - S20
1 - 125
C13 - C49
S21 - C41
Z1 - Z37
5A, 9A
AC SINGLE 220-240V, 50/60Hz
110W
75Ω unbalanced
Coaxial type
17 Systems
PAL/SECAM B, K1
PAL B (AUST.)
PAL B (N.Z.)
PAL/SECAM D
NTSC M (JAPAN)
NTSC M (U.S.A)
PAL G, H, I/SECAM G, K, K1
PAL B (AUST.)
PAL D, K
NTSC M (JAPAN)
NTSC M (U.S.A.)
(OSCAR)
(U.S.A. CATV)
(JAPAN)
(HYPER)
(CHINA)
(AUST.)
TX-29F355R-IRAN
GP21 Chassis
Intermediate Frequency :
Video
Sound
Colour
Video / Terminals :
AV 1, 2
S-Video In
DVD
Y
PB
YR
AV 1, 2, 3, 4
Video In
Audio In
Monitor Out
High Voltage :
Picture Tube :
© 2006 Matsushita Electric Industrial Co., Ltd. All
rights reserved.
distribution is a violation of law.
ORDER NO. MTV0601444CE
Colour Television
38.0 MHz
31.5 MHz (D, K, K1)
32 MHz (I)
32.5 MHz (B, G)
33.5 MHz (M)
33.57 MHz (PAL)
33.6 MHz (SECAM)
33.75 MHz (SECAM)
34.42 MHz (NTSC)
Y:1 Vp-p, 75Ω
C:0.3 Vp-p, 75Ω
1.0 Vp-p, 75Ω
0.7 Vp-p, 75Ω
0.7 Vp-p, 75Ω
1 Vp-p, 75Ω
Approx. 0.5V, 47kΩ
Video Out 1 Vp-p, 75Ω
Audio Out Approx. 0.5V, 1kΩ
31.0±1.0V
at zero beam current
A68LZU185X-E
67.6cm (29 inches)
Unauthorized copying and
