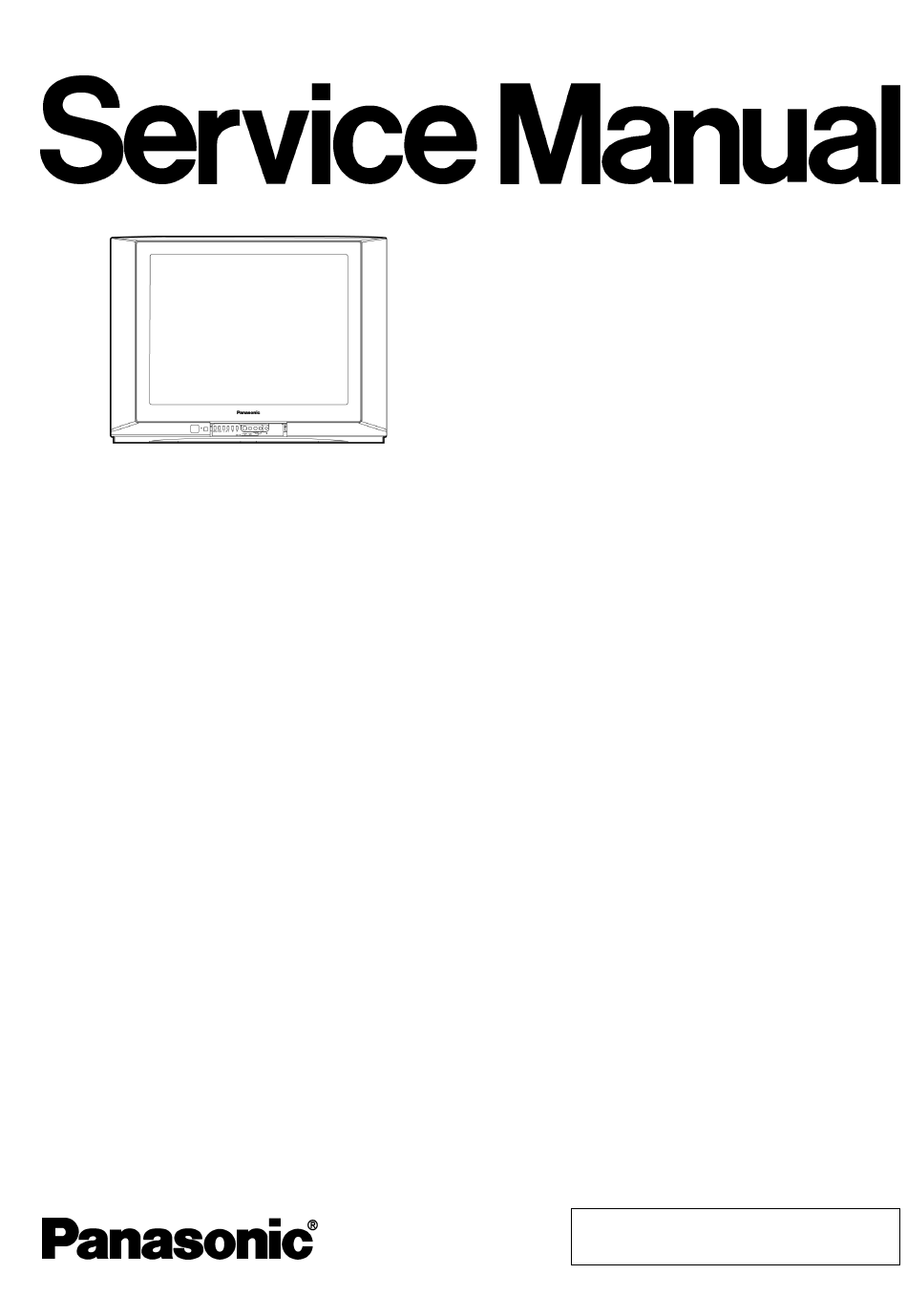

Panasonic TX-29F225R-IRAN Service Manual

Specification
Power Source
Power Consumption
Aerial Terminal
Tuning System
Receiving System
Receiving Channels
VHF BAND
UHF BAND
CATV
Intermediate Frequency
Video
Sound
AC SINGLE 220-240V, 50/60 Hz
Standby condition : 2 W
Impedance : 75Ω, Coaxial type
Frequency Synthesizer
Auto Search Tuning
Pos : 100 Positions
21 Systems
Regular TV
0-12 (PAL/SECAM B, K1)
0-12 (PAL B AUST.)
1-9 (PAL B N.Z.)
1-12 (PAL/SECAM D)
1-12 (NTSC M JAPAN)
2-13 (NTSC M U.S.A)
21-69 (PAL G, H, I/SECAM G, K, K1)
28-69 (PAL B AUST.)
13-57 (PAL D, K)
13-62 (NTSC M JAPAN)
14-69 (NTSC M U.S.A.)
S1-S20 (OSCAR)
1-125 (U.S.A. CATV)
C13-C49 (JAPAN)
S21-S41 (HYPER)
Z1-Z37 (CHINA)
5A, 9A (AUST.)
38.0 MHz
31.5 MHz (D, K) / 32.5 MHz (B, G)
32.0 MHz (I) / 32.5 MHz (M)
33.57 MHz (PAL) /
TX-29F225R-IRAN
GP2 Chassis
Colour
164 W
Video/Audio/Terminals
AV 1, 2, 3, 4
DVD
Y
P
B
P
R
Video In
Audio In
Monitor Out
Video In
Audio In
High Voltage
Picture Tube
Audio Output
Dimensions (W x D x H)
Weight (Mass)
Note:
Specifications are subject to change without notice. Mass and
dimensions shown are approximate.
© 2005 Matsushita Electric Industrial Co., Ltd. All
rights
distribution is a violation of law.
Order No. MTV0501408CE
Colour Television
33.6 MHz (SECAM)
34.42 MHz (NTSC) /
33.75 MHz (SECAM)
Approx. 0.5V, 47KΩ
Approx. 0.5V, 47KΩ
31.0 ± 1.0 at zero
A68LZU185X Type 29 (68 cm)
Measured diagonally
786 mm x 512 mm x 578 mm
reserved. Unauthorized
S-Video In
Y:1 Vp-p, 75Ω
C:0.3 Vp-p, 75Ω
1.0Vp-p, 75Ω
0.7Vp-p, 75Ω
0.7Vp-p, 75Ω
1Vp-p, 75Ω
1Vp-p, 75Ω
beam current
104° deflection
20 W speaker
43 kg (Net)
copying and
