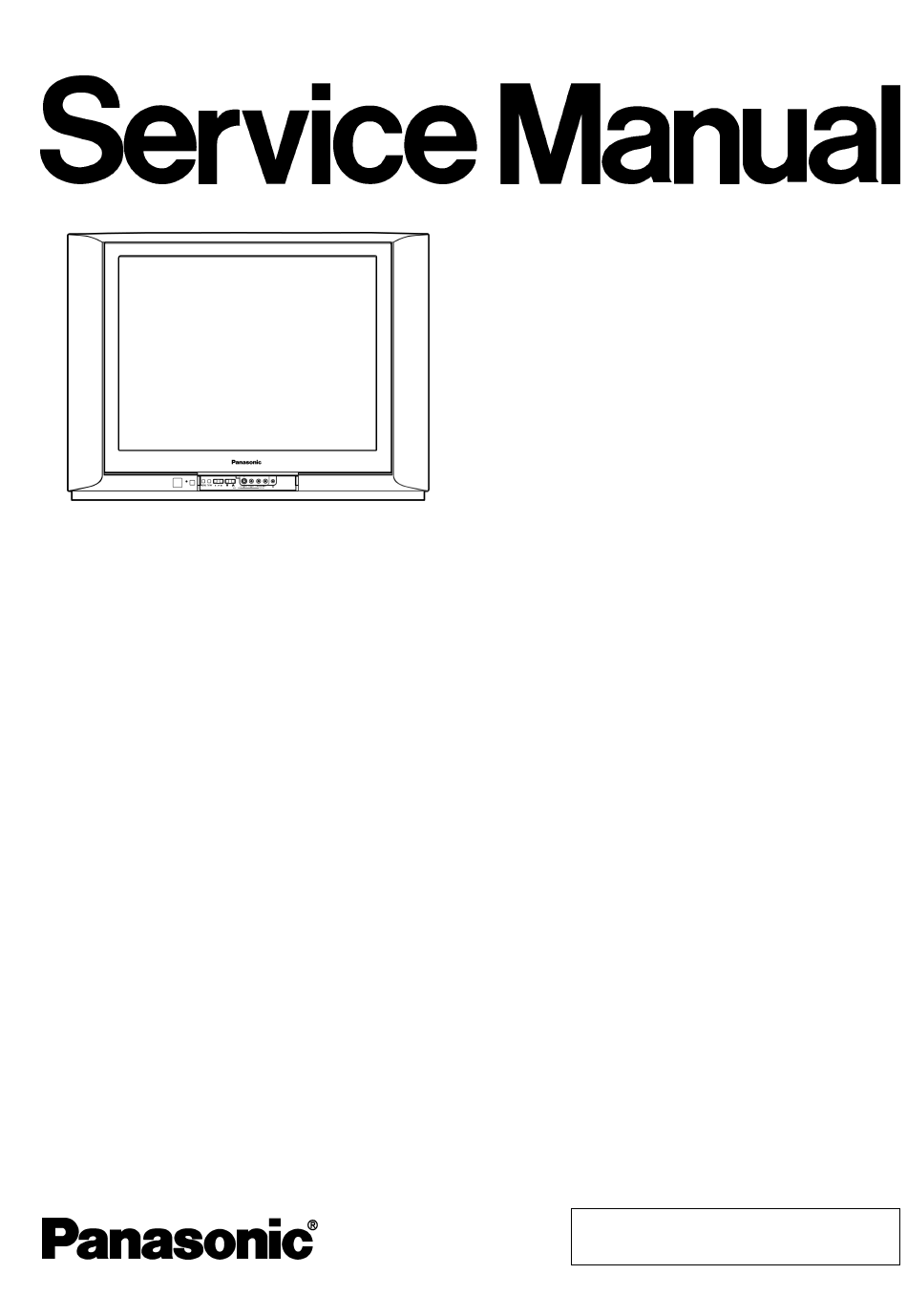

Panasonic TX-29F350T Service Manual
Panasonic TX-29F350T Service Manual

Panasonic TX-29F350T Service Manual

Gp21 chassis

Advertisement

Specifications
Power Source :
Power Consumption :
Aerial Impedance :
Receiving System :
Receiving Channels :
VHF
2 - 12
0 - 12
1 - 9
1 - 12
1 - 12
2 - 13
UHF
21 - 69
28 - 69
13 - 57
13 - 62
14 - 69
CATV
S1 - S20
1 - 125
C13 - C49
S21 - C41
Z1 - Z37
5A, 9A
Intermediate Frequency :
AC SINGLE 220-240V, 50/60Hz
110W
75Ω unbalanced
Coaxial type
17 Systems
PAL/SECAM B, K1
PAL B (AUST.)
PAL B (N.Z.)
PAL/SECAM D
NTSC M (JAPAN)
NTSC M (U.S.A)
PAL G, H, I/SECAM G, K, K1
PAL B (AUST.)
PAL D, K
NTSC M (JAPAN)
NTSC M (U.S.A.)
(OSCAR)
(U.S.A. CATV)
(JAPAN)
(HYPER)
(CHINA)
(AUST.)
TX-29F350T
GP21 Chassis
Video
Sound
Colour
Video / Terminals :
AV 1, 2
S-Video In
DVD
Y
PB
YR
AV 1, 2, 3, 4
Video In
Audio In
Monitor Out
High Voltage :
Picture Tube :
© 2006 Matsushita Electric Industrial Co., Ltd. All
rights
reserved.
distribution is a violation of law.
ORDER NO. MTV0601446CE
Colour Television
38.0 MHz
31.5 MHz (D, K, K1)
32 MHz (I)
32.5 MHz (B, G)
33.5 MHz (M)
33.57 MHz (PAL)
33.6 MHz (SECAM)
33.75 MHz (SECAM)
34.42 MHz (NTSC)
Y:1 Vp-p, 75Ω
C:0.3 Vp-p, 75Ω
1.0 Vp-p, 75Ω
0.7 Vp-p, 75Ω
0.7 Vp-p, 75Ω
1 Vp-p, 75Ω
Approx. 0.5V, 47kΩ
Video Out 1 Vp-p, 75Ω
Audio Out Approx. 0.5V, 1kΩ
30.5±1.0V
at zero beam current
A68LZU185X-E
67.6cm (29 inches)
Measured diagonally,
Unauthorized
copying
and

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic TX-29F350T

  • Page 1 ORDER NO. MTV0601446CE Colour Television TX-29F350T GP21 Chassis Specifications Power Source : AC SINGLE 220-240V, 50/60Hz Video 38.0 MHz Power Consumption : 110W Sound 31.5 MHz (D, K, K1) Aerial Impedance : 75Ω unbalanced 32 MHz (I) Coaxial type 32.5 MHz (B, G)
  • Page 2: Table Of Contents

    TX-29F350T 90° deflection Mass : 43 kg (Net Wt.) Audio Output : 10W+10W = 20W Dimensions : Height : 578 mm Specifications are subject to change without notice. Mass and dimensions shown are approximate. Width : 786 mm Depth : 508 mm...
  • Page 3: Safety Precautions

    TX-29F350T 1 Safety Precautions 1.1. General Guide Lines 1. It is advisable to insert an isolation transformer in the AC supply before servicing this hot chassis. 2. When servicing, observe the original lead dress, especially the lead dress in the high voltage circuits. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.
  • Page 4: Gp21 Chassis Block Diagram

    TX-29F350T 1.5. GP21 Chassis Block Diagram...
  • Page 5: Service Hints

    TX-29F350T 2 Service Hints 2.1. Service Position for E-Board 1. Remove the back cover. 2. Stand the TV set as shown in Fig. 2. 3. Remove the A-Board from the TV set by pulling the main board out as shown in Figure 2.
  • Page 6: Adjustment For White Balance

    TX-29F350T 2.3. Adjustment for White Balance Preparation: 1. Receive the white balance pattern and aging should have been performed over 30 minutes. 2. Set the picture menu to DYNAMIC NORMAL. 3. Degausse the CRT face. 4. Fix the CRT colour analyzer receiver unit to CRT face.
  • Page 7: Adjustment Procedure

    TX-29F350T 2.5. Adjustment Procedure 2.5.1. +B Voltage 2.5.2. High Voltage Item / preparation Item / preparation 1. Operate the TV set. 1. Receive the crosshatch pattern. 2. Set control as follows : 2. Set to 0 Beam. Brightness ... minimum Screen VR ..
  • Page 8: Pal Colour

    TX-29F350T 2.6. PAL Colour 1. Receive the PAL B/G studio colour bar pattern and adjust local frequency at the best tuned position. 2. Pic Menu: Dynamic Normal, Confirm Contrast - 100 DAC, Sub Contrast - 21 dac. 3. Channel colour set --------- STD 4.
  • Page 9 TX-29F350T Before Colour Purity, Convergence and White Balance adjustment are attempted, V. Height, H. Centre and Focus adjustments must be completed. Colour Purity Convergence 1. Set the Brightness and Contrast controls to their maximum 1. Apply a crosshatch pattern signal and Normalize Contrast positions.
  • Page 10 TX-29F350T Adjustment of CRT VRS 1. Preparation a. Set DY to CRT not to tilt up and down left and right deflection. b. Set CY to CRT and set CY magnet primarily (Fig. 1) Purity magnet : Set purity magnet that 2 magnets are (TOP POSITION) VRS magnet : Set purity magnet 2 magnets are (HORIZONTAL POSITION) 2.
  • Page 11 TX-29F350T Fig. 10 Fig. 11 Notes: 1. Wedge A, B and C should be inserted following the sequence of 1, 2 and 3 shown in Fig. 11. 2. The wedges should be set 120° apart from each other. 3. Be certain that three wedges are firmly fixed and the Deflection Yoke is tightly clamped in place.
  • Page 12: Conductor Views

    TX-29F350T 3 Conductor Views...
  • Page 13: Schematic Diagram

    TX-29F350T 4 Schematic Diagram...
  • Page 14 TX-29F350T...
  • Page 15: D Board

    TX-29F350T 4.1. D Board 4.1.1. D Board (1/5) <1A> <2A> <3A> <4A> <5A> <6A> <7A> <8A> <9A>...
  • Page 16 TX-29F350T 4.1.2. D Board (2/5) <1A> <1B> <2A> <2B> <3A> <3B> <4B> <4A> <5B> <5A> <6B> <6A> <7B> <7A> <8A> <8B> <9A> <9B>...
  • Page 17 TX-29F350T 4.1.3. D Board (3/5) <1B> <1C> <2C> <2B> <3C> <4C> <5C> <3B> <4B> <5B> <6C> <6B> <7B> <7C> <8B> <8C> <9B> <9C>...
  • Page 18 TX-29F350T 4.1.4. D Board (4/5) <1C> <1D> <2C> <3C> <4C> <5C> <2D> <3D> <6C> <4D> <5D> <7C> <6D> <7D> <8D> <8C> <9C> <9D>...
  • Page 19 TX-29F350T 4.1.5. D Board (5/5) <1D> <2D> <3D> <4D> <5D> <6D> <7D> <8D> <9D>...
  • Page 20: A Board

    TX-29F350T 4.2. A Board 4.2.1. A Board (1/5) <1A> <2A> <3A> <4A> <5A> <6A> <7A> <8A> <9A>...
  • Page 21 TX-29F350T 4.2.2. A Board (2/5) <1A> <1B> <2A> <2B> <3B> <4B> <5B> <3A> <4A> <6B> <5A> <6A> <7A> <7B> <8A> <8B> <9A> <9B>...
  • Page 22 TX-29F350T 4.2.3. A Board (3/5) <1B> <1C> <2C> <2B> <3C> <3B> <4C> <4B> <5B> <6B> <5C> <6C> <7B> <7C> <8B> <9B> <8C>...
  • Page 23 TX-29F350T 4.2.4. A Board (4/5) <1C> <1D> <2C> <3C> <2D> <4C> <3D> <4D> <5D> <6D> <5C> <6C> <7D> <7C> <8D> <8C> <9D>...
  • Page 24 TX-29F350T 4.2.5. A Board (5/5) <1D> <2D> <3D> <4D> <5D> <6D> <7D> <8D> <9D>...
  • Page 25: L Board

    TX-29F350T 4.3. L Board 4.3.1. L Board (1/4) <1A> <2A> <3A> <4A> <5A> <6A> <7A> <8A> <9A>...
  • Page 26 TX-29F350T 4.3.2. L Board (2/4) <1A> <1B> <2A> <2B> <3A> <3B> <4A> <4B> <5A> <6A> <5B> <6B> <7A> <7B> <8A> <8B> <9A> <9B>...
  • Page 27 TX-29F350T 4.3.3. L Board (3/4) <1B> <1C> <2B> <2C> <3B> <3C> <4B> <5B> <6B> <4C> <7B> <5C> <8B> <9B> <6C>...
  • Page 28 TX-29F350T 4.3.4. L Board (4/4) <1C> <2C> <3C> <4C> <5C> <6C>...
  • Page 29: G Board

    TX-29F350T 4.4. G Board 4.4.1. G Board (1/3) <1A> <2A> <3A> <4A> <5A> <6A> <7A> <8A> <9A>...
  • Page 30 TX-29F350T 4.4.2. G Board (2/3) <1A> <1B> <2A> <3A> <4A> <2B> <5A> <6A> <7A> <8A> <3B> <9A>...
  • Page 31 TX-29F350T 4.4.3. G Board (3/3) <1B> <2B> <3B>...
  • Page 32: Parts Locations

    TX-29F350T 5 Parts Locations...
  • Page 33: Replacement Parts List

    TX-29F350T 6 Replacement Parts List...
  • Page 34: Replacement Parts List

    TX-29F350T 6.1. Replacement Parts List Ref. Part No. Part Name & Description Remarks C1132 ECJ2VF1E104Z C 0.1UF, Z, 25V Ref. Part No. Part Name & Description Remarks C1133 F2A1C1000079 C 10UF, J, 16V C1134 F2A1C101A310 E 100UF, 16V A68LZU185X-E PICTURE TUBE...
  • Page 35 TX-29F350T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C1706 F2A1C1000079 E 10UF, 16V C3204 ECJ2VC1H561J C 560PF, J, 50V C1709 F1J1H103A590 C 0.01UF, 50V C3205 ECA1CM101B E 100UF, 16V C1710 F1J1H333A021 C 0.033UF, 50V...
  • Page 36 TX-29F350T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C802 F0CAF2240003 CAP 250VAC 0.22UF D1241 MAZ81200ML DIODE C812 F1B1H103A013 C 0.01UF, 50V D1242 MAZ81200ML DIODE C813 F2A1C221A338 E 220UF, 16V D1243 MAZ81200ML...
  • Page 37 TX-29F350T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks D830 B0HAJL000003 DIODE L1262 G0C4R7JA0021 COIL D832 B0EAKT000018 DIODE L1263 EXCML20A390U EMI FILTER D833 B0HAJL000003 DIODE L150 J0JKA0000038 BEAD CORE D834 B0BA6R800025 ZENER DIODE...
  • Page 38 TX-29F350T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Q101 B1ABCE000015 TRANSISTOR R1064 ERJ6ENF5111 F 5.11KOHM,J,1/10W Q102 B1ABCE000015 TRANSISTOR R1065 ERJ6ENF9091 M9.09KOHM, 1/10W Q103 B1ABCE000015 TRANSISTOR R1066 ERJ6ENF2152 M21.5KOHM, 1/10W Q1050 B1ABCE000015...
  • Page 39 TX-29F350T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R1243 ERJ6GEYJ472 M 4.7KOHM,J,1/10W R1526 ERJ6GEY0R00 M 0OHM,J,1/10W R1244 ERJ3GEY0R00 M 0OHM,J,1/16W R1534 ERJ6GEY0R00 M 0OHM,J,1/10W R1247 ERJ6GEYJ750 M 75OHM, 1/10W R1535 ERJ3GEY0R00...
  • Page 40 TX-29F350T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R1736 ERJ6GEYJ102 M 1KOHM,J,1/10W R3114 ERJ6GEY0R00 M 0OHM,J,1/10W R1737 ERJ3GEYJ620 F 62OHM,J,1/10W R3122 ERJ6GEYJ101 M 100OHM,J,1/10W R1738 ERJ6GEYJ271 M 270OHM,J,1/10W R3123 ERJ6GEYJ184 M 180KOHM,J,1/10W...
  • Page 41 TX-29F350T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R373 ERJ6GEYJ821 M 820OHM,J,1/10W R840 RCR100TAJ825 C 8.2MOHM,J, 1W R375 ERG1SJ683P M 68KOHM,J,1W R841 ERDS2TJ393 C 39KOHM,J, 1/4W R376 ERJ6GEY0R00 M 0OHM,J,1/10W R842...
  • Page 42 TX-29F350T Ref. Part No. Part Name & Description Remarks FL1270 ELKE103FA NOISE FILTER FL1501 ELKE103FA NOISE FILTER FL1706 ELKE103FA NOISE FILTER FL1713 J0HAAB000012 EMI FILTER K1KA04AA0190 CONNECTOR K1KA05AA0190 CONNECTOR K1KA09AA0190 CONNECTOR K1KA09AA0190 CONNECTOR ERJ6GEY0R00 M 0OHM,J,1/10W ERJ6GEY0R00 M 0OHM,J,1/10W JA10...
