Page 1

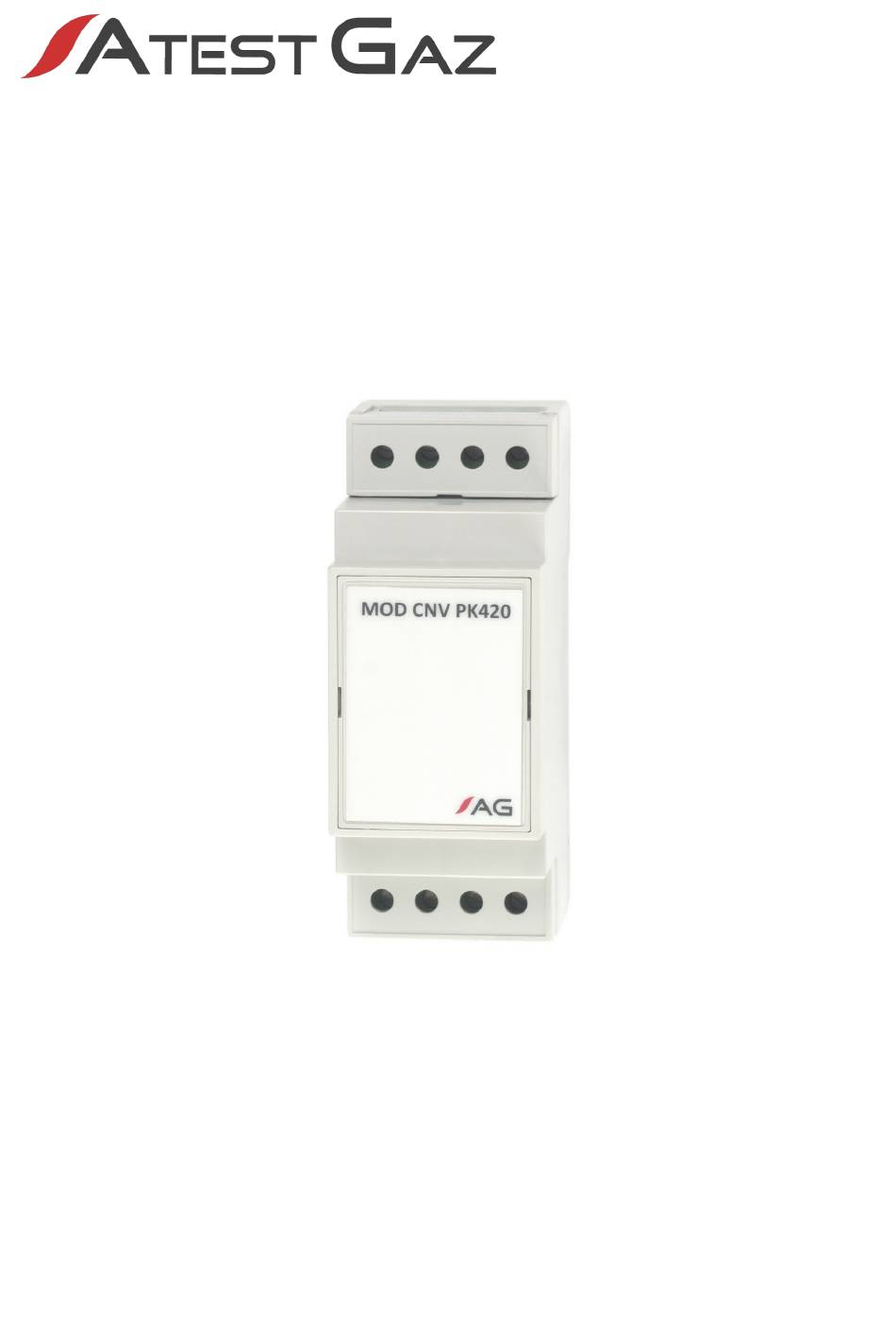

User Manual Control Unit Module MOD CNV PK420 Product code: PW-048-A POD-016-ENG R01...
Page 2
We design, manufacture, implement and support: Systems for Monitoring, Detection and Reduction of gas hazards We invite you to familiarize yourself with our offer on www.atestgaz.pl Atest Gaz A. M. Pachole sp. j. ul. Spokojna 3, 44-109 Gliwice Poland tel.: +48 32 238 87 94 fax: +48 32 234 92 71 e-mail: contact@atestgaz.pl...
www.atestgaz.pl Remarks and reservations Read and understand this manual prior to connection and operation of the device. Keep the User Manual with the device for future reference. The manufacturer shall not be held responsible for any errors, damage or defects caused by improper selection of suitable devices or cables, errors in installation of equipment or any misuse due to failure to understand the document content.
7 Appendices..............................9 List of Tables Table 1: Optical indicators status notation....................3 Table 2: Specification of output signals produced by the Signal Converter Module MOD CNV PK420..5 Table 3: Specification of the terminal block....................6 Table 4: Maximum runs of cable sections....................7 Table 5: Technical specification........................9...
P17, MOD LED8, etc.). For normal operation of the unit the PK FAILURE output of a control device wired to the MOD CNV PK420 module must be inverted to match the logic levels adopted for the solution (see Table 2 and Figures 1 and...
www.atestgaz.pl Description of the construction Figure 2: The construction of the device and its dimensions Input-output interfaces Electric interface Input Output Figure 3: Electric connections Name Terminal Description Input Port of tripping signals. See parameters in Section 5 Tripping line for the ALARM signal Tripping line for the WARNING signal Tripping line for the OPERATION signal Plus (‘+’) pole for tripping signals...
Installation The Control Unit Module MOD CNV PK420 is designed for installation inside control cabinets on the DIN35 rail or inside a terminal box according to the installation position as shown in Figure 2, The installation place should be accessible only for authorized personnel and, as far as possible, access of third-party persons must be prevented.
www.atestgaz.pl Diagnostics See Section 4.3 and Table 5. Scheduled maintenance Scheduled maintenance with the actuator (see Table 5). 4.5.1 Maintenance Except cleaning the external part of the enclosure, the device does not require any maintenance. The external part of the enclosure should be cleaned by means of a soft cloth moistened with water. Utilization This symbol on a product or on its packaging indicates that the product must not be disposed of with other household waste.
Appendices DEZG021-ENG EU Declaration of Conformity – MOD CNV PK420 PU-Z-077-ENG Connection diagram for MOD CNV PK420 with Alpa MOD LED8 and EcoAlpa / Alpa P17 PU-Z-109-ENG Connection diagram for MOD CNV PK420 with Alpa MOD LED1 and EcoAlpa / Alpa P17 s.
Page 10
EU Declaration of Conformity Atest Gaz A. M. Pachole sp. j. declares with full responsibility, that the product: (Product description) (Trade name) (Type identifier or Product code) Control Unit Module MOD CNV PK420 PW-048 complies with the following Directives and Standards: in relation to Directive 2014/30/EU –...
Page 11
Connection diagram for MOD CNV PK420 with Alpa MOD LED8 and EcoAlpa / Alpa P17 Detector 4 Detector 3 Detector 2 Detector 1 Supply Input Alpa MOD LED8 MOD CNV PK420 Output Detector 5 Detector 6 Detector 7 Detector 7...
Page 12
Connection diagram for MOD CNV PK420 with Alpa MOD LED1 and EcoAlpa / Alpa P17 R4 FAILURE R3 ALARM Det. input Power Input Loop test out. R1 WARNING I R1 WARNING II Output Input EcoAlpa / Alpa P17 Detector...
